The Industry Benchmark for Expansion Plugs

The Lee Company serves a diverse variety of industries. There’s the mainstream — aerospace, automotive, medical, oil and gas, motorsports, etc.—but also ones that aren’t so easily categorized. We’ve built components for consumer products, robotics companies, marine, and underwater vehicles, construction equipment, and more. If your product has a hydraulic or pneumatic manifold, it can use Lee components—and nearly all Lee components are descended from the Lee Plug® Expansion Plug.

Back in the 1950s, engineers were searching for a more reliable and effective way to seal machined and cross-drilled holes in metal housings. In response to this need, The Lee Company created a plug designed to form a permanent leak-tight seal without using O-rings, threads, or sealants. The Lee Plug remains the best-seller for The Lee Company, with well over 200 million plugs having been used in hydraulic systems.

Not only is The Lee Company original OEM and the only qualified aerospace supplier of this single-point-of-failure technology, but we also bring a level of problem-solving, experience, innovation, and a commitment to quality that sets us and the product apart from our competitors.

Our standard product offering usually contains a plug the size and proof pressure that a customer needs. This includes evolved configurations of our original expansion plug with different material, installation, and retention options. With that said, we’re more than happy to create innovative designs on request. Each of our customers is unique – and they often need unique plugs. Over half of the products we sell at The Lee Company is a customized solution. One of our field sales engineers will work directly with your design team to develop a custom product to fit your unique application. So whether your solution is off-the-shelf or one-of-a-kind, you can rest assured knowing that Lee products always adhere to exacting standards for quality, performance, and reliability.

Lee Plug® Expansion Plugs

The founding, flagship product from The Lee Company. It works like this: the cylindrical plug body contains a tapered hole partway through. First, the body is inserted into a properly reamed hole. Then, a tapered pin is inserted into the plug itself, causing the plug to expand in a controlled manner. Lands and grooves on the side of the plug then bite into the sides of the hole, creating multiple metal-to-metal seals. See Installation Process Specification 203 (which applies to all Lee Plug Expansion Plugs) for more information.

Lee Plugs are manufactured to exacting tolerances. Every process is precisely controlled. Each lot of pins and plugs undergoes rigorous inspection and acceptance testing to ensure performance where any failure could be catastrophic.

Standard Lee Plugs are available in multiple grades of aluminum, stainless steel, and Monel, plus titanium and MP35N. They can be purchased in diameters from 0.093 to 0.656 of an inch or metric sizes from 2.5 to 8.0 mm.

Lee Betaplug®

Lee Betaplugs are economical one-piece tapered expansion plugs developed for high-volume production applications. This component is designed to seal fluid passageways in both metal and plastic housings. Therefore, it can be used with a wide range of materials. Additionally, the installation process is straightforward, involving no screws, threads, sealants, or O-rings – meaning it can easily be performed with a manual or automated process. Finally, its tapered design eliminates the need for tight manufacturing tolerances, ideal for high-volume applications and perfect for brittle materials or thin wall conditions.

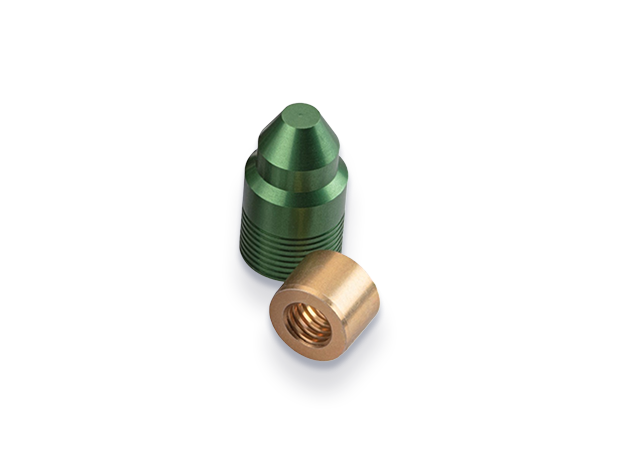

Lee R.F.O.® (Radial Force Only) Plugs

Lee R.F.O. Plugs are designed to seal holes in thin walls or fragile materials. Designed to be easily removable, these plugs do not require a support shoulder and the installation system ensures that no downward pressure is applied to the product.

Lee R.F.O. Plugs are available in aluminum and can be found in standard diameters ranging from 0.156 to 0.875 of an inch.

Lee QIP® (Quick Installation Plug) Plugs

The Lee QIP was developed as an evolution of the Lee Plug® to provide a more straightforward method of handling and installing the smallest plug sizes. This is accomplished by pre-installing the pin into the plug. This pre-assembled component adapts more easily to automated installation. Despite their smaller size, these plugs experience no loss of strength, with proof pressures up to 12,000 psi.

The Lee QIP is available in aluminum and is offered in four standard sizes: 0.093, 0.125, 0.156, and 0.187 inch diameters.

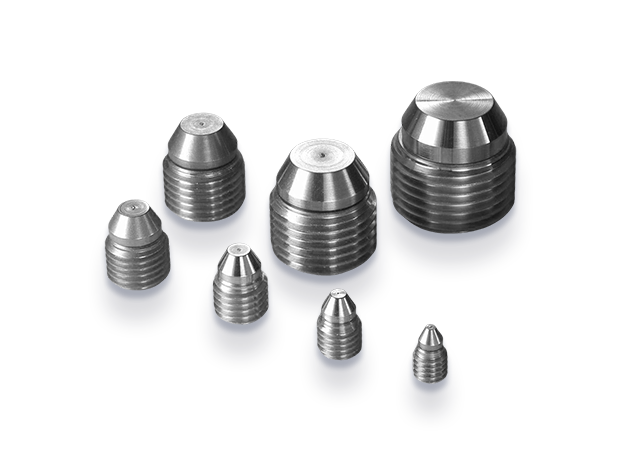

Lee A.F.O.® (Axial Force Only) Plugs

Unlike other plugs in our product family, A.F.O. Plugs are both removable and reusable due to their threaded design, allowing technicians easy access to sealed passageways. Despite this, the A.F.O. Plug still seals up to 56,000 psi. Each plug features a floating seal that self-aligns, allowing for threaded holes that aren’t concentric with the through-hole. Lastly, the A.F.O. designation means no radial force is applied during installation, making this component suitable for thinner-walled housings. See Installation Process Specification P1013 (which applies to all A.F.O. Plugs) for more information.

A.F.O. Plugs are made from stainless steel and are available in standard diameters ranging from 0.190 to 0.625 of an inch.

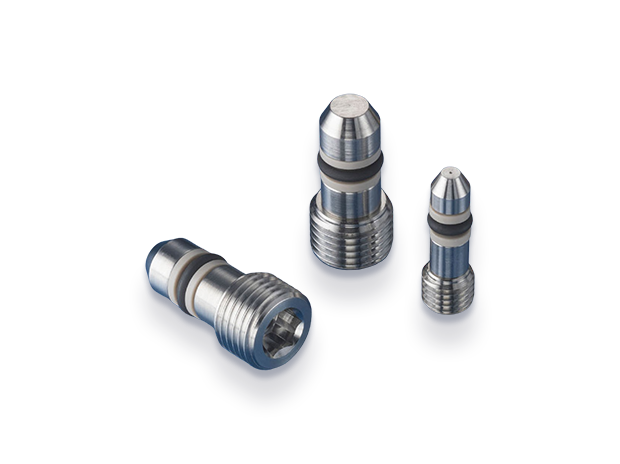

Lee Dual Sealing A.F.O.® Plugs

The Dual Sealing A.F.O. Plug comes with all the strength and ease of use offered by our regular A.F.O. Plugs, but with added safety features for use in hydraulic systems. Incorporating an O-ring allows users to vent gas out of a side port or safely release trapped high-pressure gas. This enables the Dual Sealing A.F.O. Plug to be used for “fill and drain” applications. In addition, a newer higher pressure version of this product is available with backup rings rated to seal up to 15,000 psi when partially open.

The Dual Sealing A.F.O. Plug is available in stainless steel and can be purchased in diameters of 0.3125, 0.375, 0.500, and 0.750 of an inch.

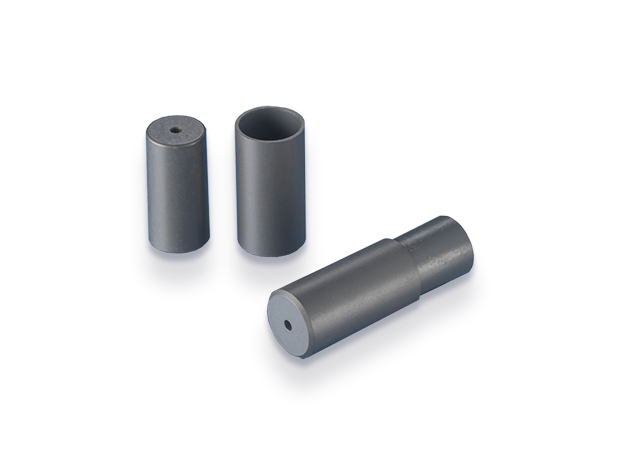

Lee Cross Port Plugs

Lee Cross Port Plugs are a plugging solution specifically engineered to seal cross port passageways. This configuration is a variant of the original Lee Plug® that set industry standards over 65 years ago. A smooth wall design combined with the field-proven controlled expansion principle creates a permanent, leak-proof seal without O-rings or sealants. Installation is simple and reliable, and the plug requires no maintenance after that.

Lee Cross Port Plugs are ideal for isolating sections of a fluidic manifold. They are also used to plug deep passageways that are difficult to access with conventional sealing methods.

Lee Cross Port Plugs are constructed from 6Al-4V Titanium. They have been qualified for proof pressures over 20,000 psi and at temperatures up to 400°F. Configurations are available in 0.250, 0.281, and 0.343 inch diameters.
