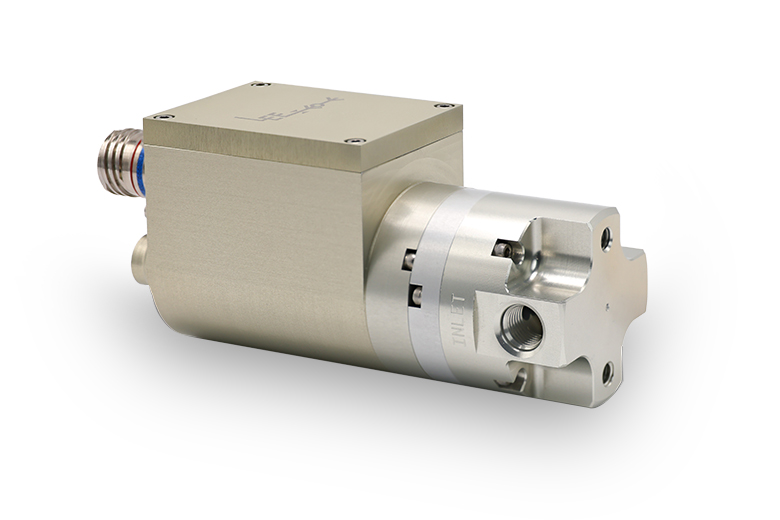

This radial piston pump offers a significant increase in hydraulic performance and features a higher displacement volume than our existing 200 Series Pump. It features integrated control electronics, a new high displacement port head, and a connector. The design retains core features like self-priming and reduced cavitation, while introducing enhancements such as greater flow capacity and an improved turndown ratio. Integrated electronics allow full variable flow control for unparalleled flexibility. Built-in intelligence within the pump module provides real-time operational feedback, including pump speed, motor current, and fault monitoring.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Speed Command Voltage (SCV) | 1640 RPM/Volt Nominal |
| Maximum Speed | 5.0 V SCV (8000 RPM) |
| Minimum Speed | 0.18 V SCV (300 RPM) |
| Rated Operation | 0.75 GPM minimum on MIL-PRF-7024 Type II, 5.0 V SCV maximum, 100 psid minimum (360 PPH) |
| Maximum Pressure Rise | 100 psid Inlet to Outlet |
| Proof Pressure | 150 psig Case to Environment |
| Temperature | -67°F to 185°F |
| Supply Voltage | 12-36 VDC, 28 VDC Nominal (24 VDC minimum required to achieve rated operation) |
| Power Consumption | 100 Watts Maximum at Rated Operation |
| Maximum Allowable Current (Continuous) | 6 amps continuous |
| Maximum Allowable Current (Peak) | 10 amps |
| Weight | 2 lbs Nominal |
| Category | Materials |
|---|---|
| Wetted Surfaces | 7075 Anodized Aluminum Stainless Steel Fluorosilicone PTFE PEEK |
| Connector | D38999 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
