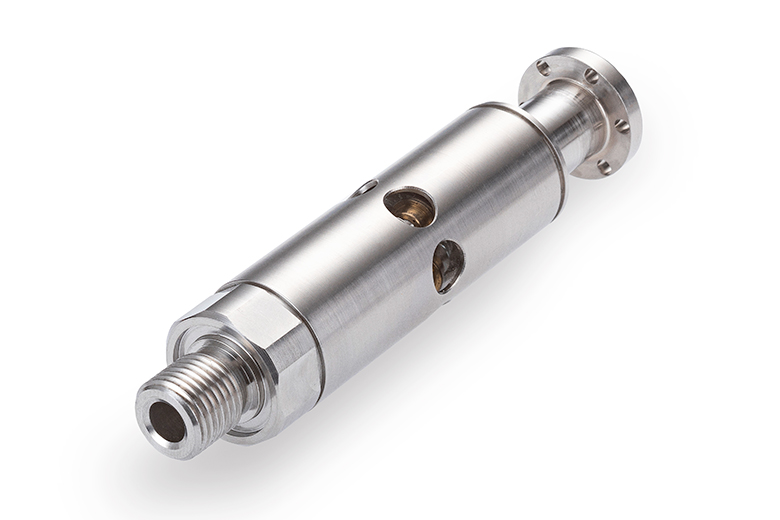

22 mm HPHT Pump

This innovative axial piston design eliminates the use of elastomers, increases resistance to contamination, and dramatically improves reliability. The pump can generate up to 10,000 psi, is rated for operating temperatures up to 400°F, has been cycle tested for over 1000 hours, and is designed to withstand high levels of shock and vibration.

Key Product Facts
  • Flow:16.25 in3/min (260 mL/min)
  • Pressure:10,000 psid (690 bar)
  • Maximum Temperature:400°F (204°C)
  • Diameter:22 mm
  • No Elastomeric Seals

Product Information

General Performance
CHARACTERISTIC SPECIFICATION
Maximum Differential Operating Pressure 10,000 psid
Maximum Operating Speed 6500 RPM
Minimum Operating Speed 100 RPM
Maximum Operating Temperature 400°F
Displacement (45 mm 3) per Revolution
Minimum Flow Rate at 10,000 psid and 750 RPM 17 mL/min
Wetted Materials
  • 17-4
  • 17-7
  • 440C
  • 304
  • 420
  • 316 CRES
  • Aluminum Bronze
  • Alloy Steel
  • Stainless Steel
Performance Graphs
Cross Section View
Dimensional View

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER RATED PRESSURE (psi) MAXIMUM SPEED (RPM) MINIMUM SPEED (RPM) MAXIMUM TEMPERATURE (°F) TEST FLUID Request Information
GPSA0223003E 10,000 6500 100 400 UNIVIS HVI-26 Request

Installation & Accessories

Replacement Parts & Accessories
PART NUMBER DESCRIPTION
FSHX0565700B 150 micron Screen

CAD Envelopes

CAD Envelope
