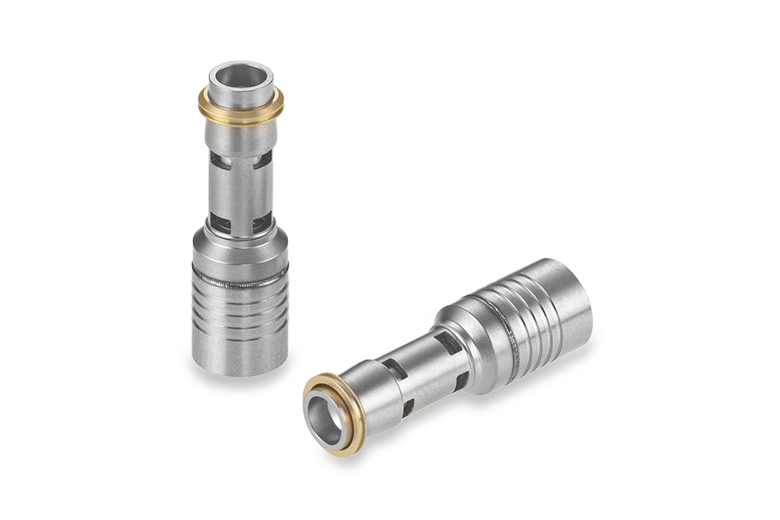

The poppet in this miniature shuttle valve is biased so that the emergency port (E) is normally closed and the normal (N) and service (S) ports are connected. It is ideal for applications with flow rates up to 7.2 GPM.
| Characteristic | Specification |
|---|---|
| Normal Flow Rate (N to S or S to N) | 130 Lohms max. |
| Emergency Flow Rate (E to S) | 130 Lohms max. |
| Maximum Rated Flow | 7.2 GPM |
| Shuttling Pressure | 15 psid (min.) 40 psid (max.) |
| Maximum Leakage: (N to E or E to N at 4000 psid) | 5 Drops / Hour after 2 Minute wait |
| Screen Hole Size | 0.008 inches Nominal |
| Nominal System Pressure | up to 4000 psi |
| Nominal Weight | 4.0 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body – Rear | 304L CRES | AMS 5647 |
| Body – Front | 15-5PH CRES | AMS 5659 |
| Pin | 303 CRES | QQ-S-763C |
| Spring | 17-7PH CRES | AMS 5678 |
| Poppet | 440C CRES | AMS 5630 |
| Nose Seal | 6061-T6 Al | AMS 4117 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA2810137C | Installation / Extraction Tool Set |
| PRFA2810003A | Replacement Pin |
| SVBA2810009B | Replacement Nose Seal |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
