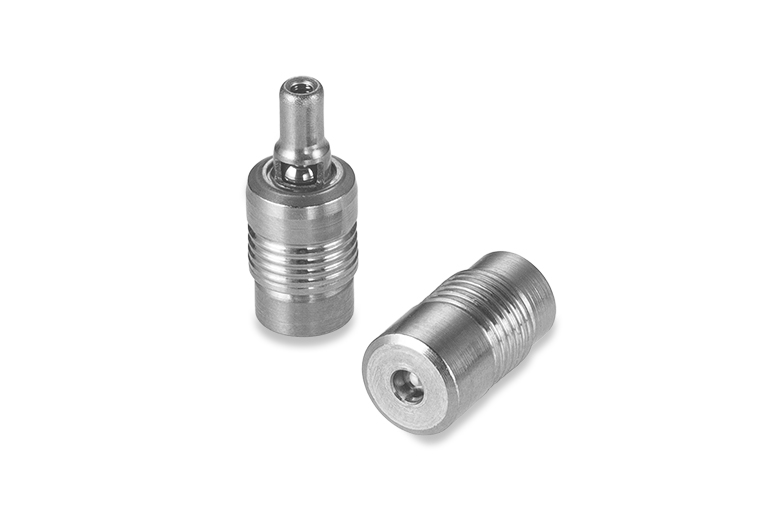

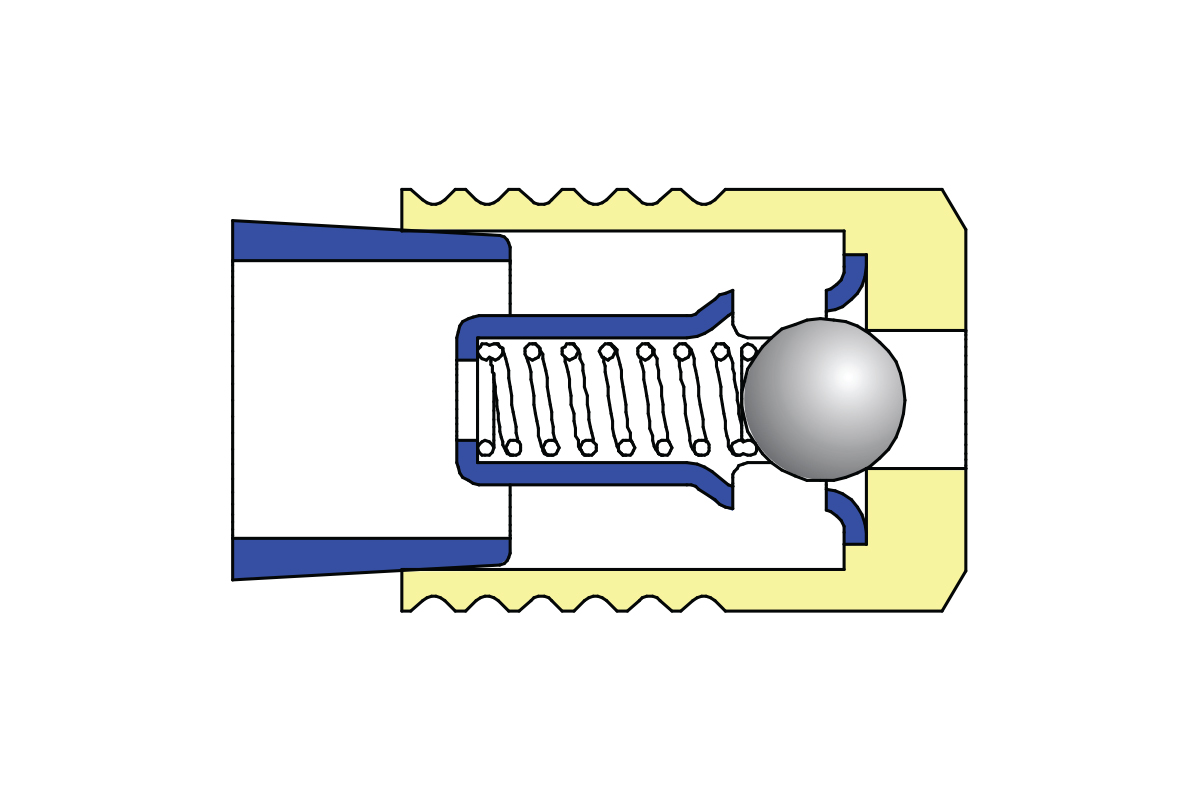

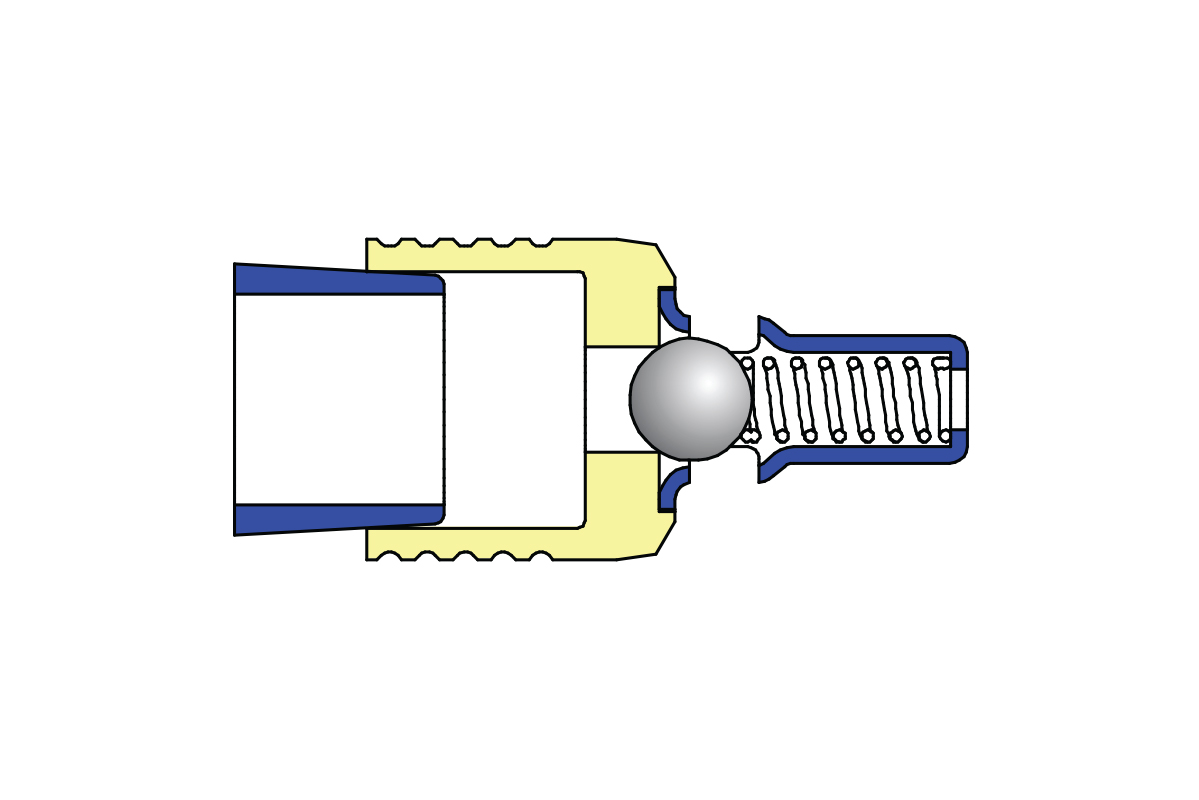

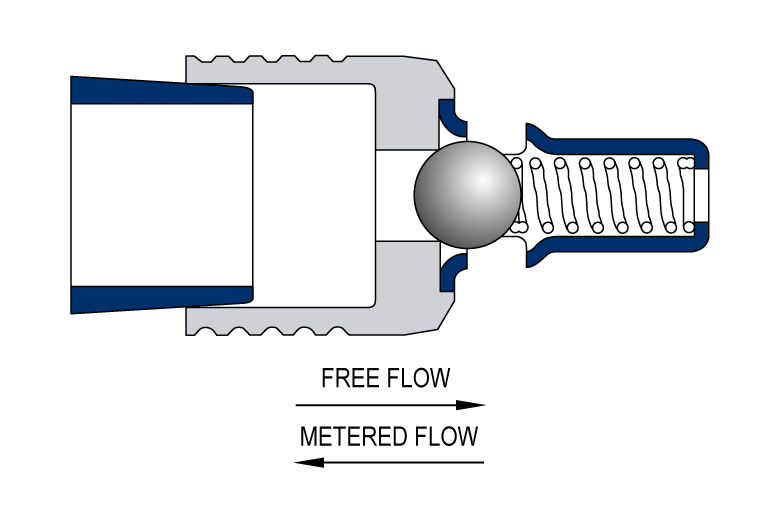

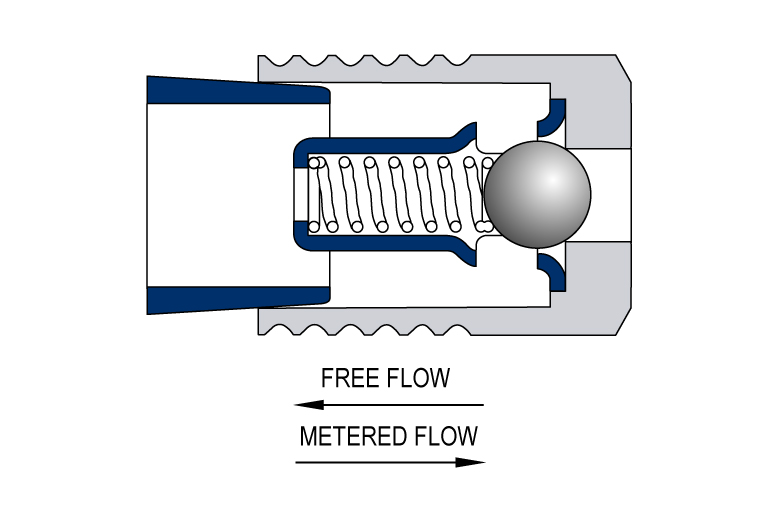

This threadless, cartridge-style flow control valve is 5.5 mm in diameter and is designed for installation into metal manifolds. Functionally, a flow control valve is an orifice in parallel with a check valve in one component. The valve’s locking end uses the field-proven Lee Controlled Expansion Principle to provide secure retention without the need for threads, O-rings, or sealants. Featuring an all-stainless steel design with a high-quality metal seat, this valve offers metered flow, repeatable cracking pressures, and long life. It is 100% tested to ensure performance.

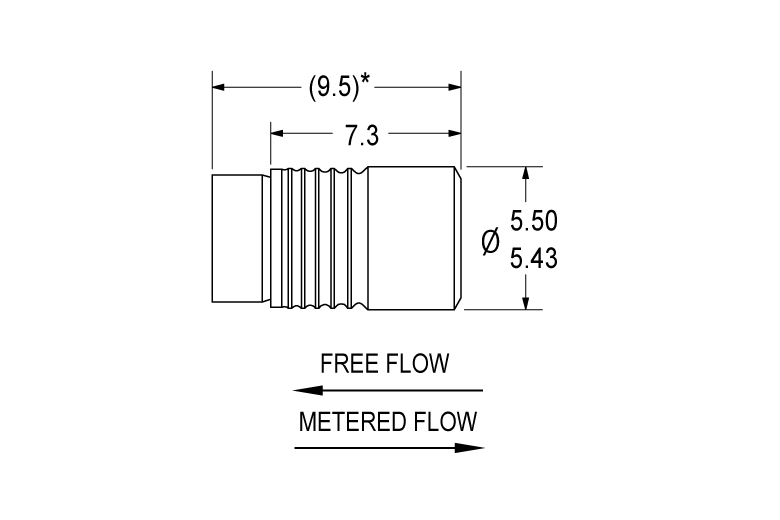

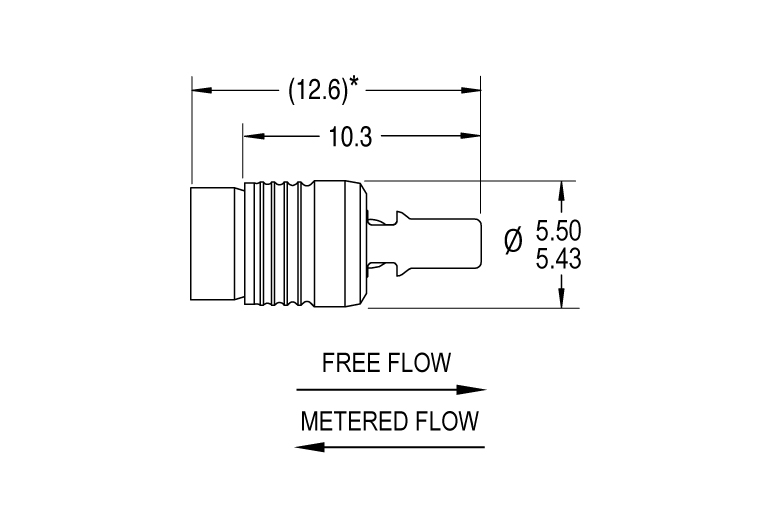

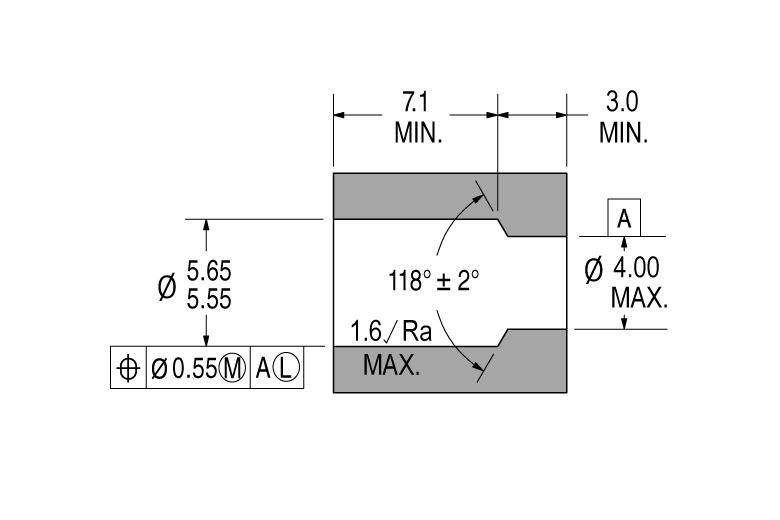

| Characteristic | Specification |
|---|---|
| Free Flow Lohm Rate | 250 Lohms |
| Metered Lohm Rate Tolerance | ± 15% |
| Cracking Pressure | 40 ±30 kPa (6 ±4.4 psid) |
| Cracking Pressure Definition | Is the uprun pressure at which the valve will flow more than 50 SCCM of air |
| Maximum Working Pressure, Checked Direction | 280 Bar |
| Maximum Working Pressure Differential, Flow Direction | 40 Bar |
| Installation Force | 625 kgf (max.) |
| COMPONENT | MATERIAL |
|---|---|
| Body | 303 Stainless Steel |
| Cage | 305 Stainless Steel |
| Pin | 416 Stainless Steel |
| Spring | 302 Stainless Steel |
| Ball | 440C Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0900120S | 558 Series Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

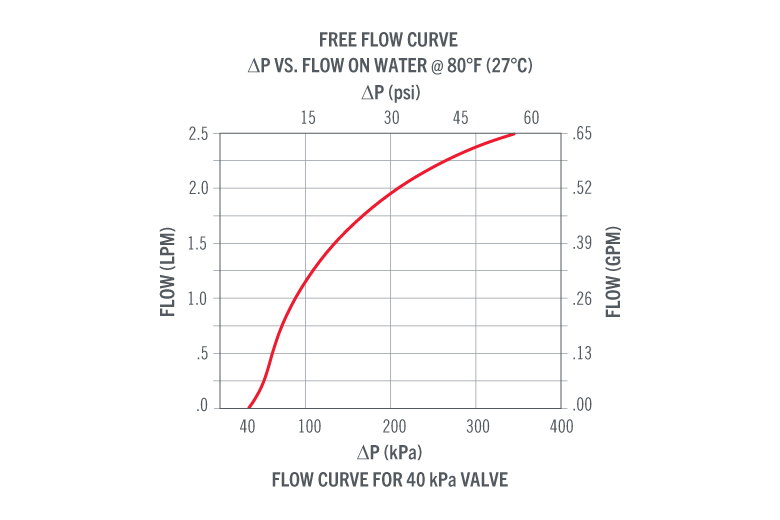

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
