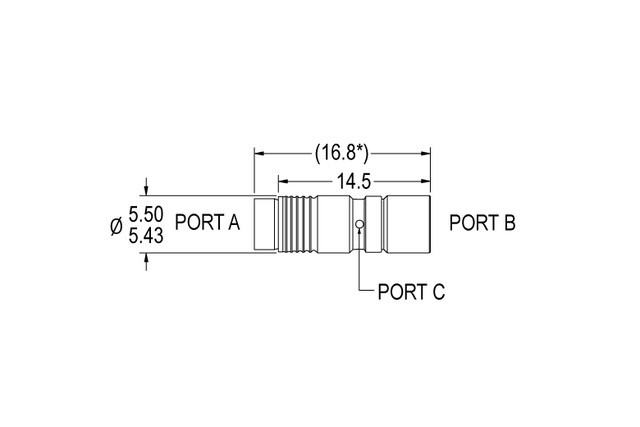

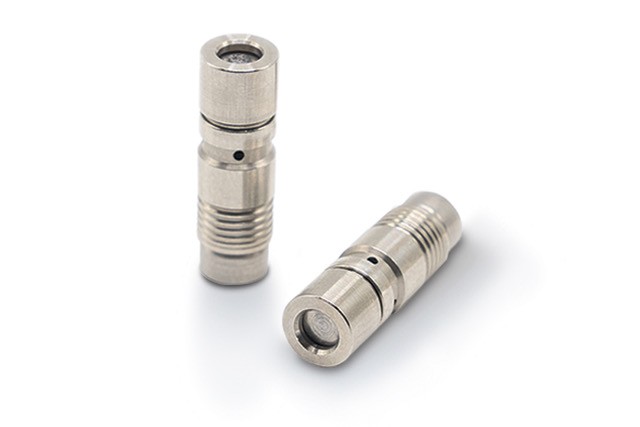

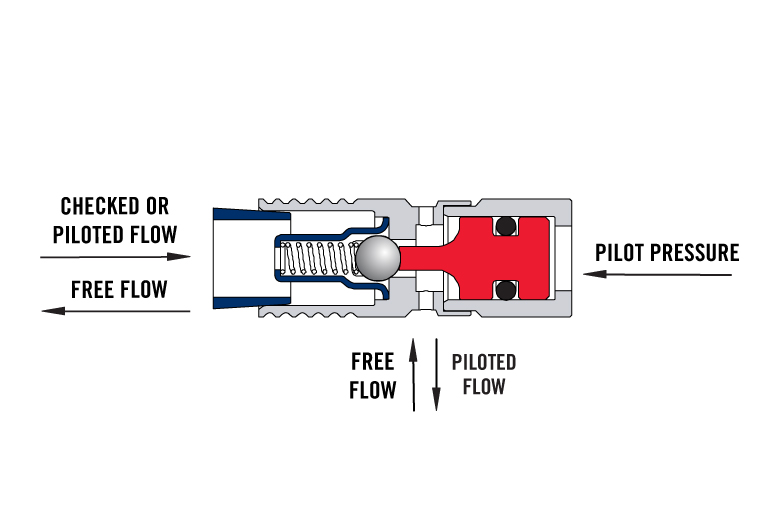

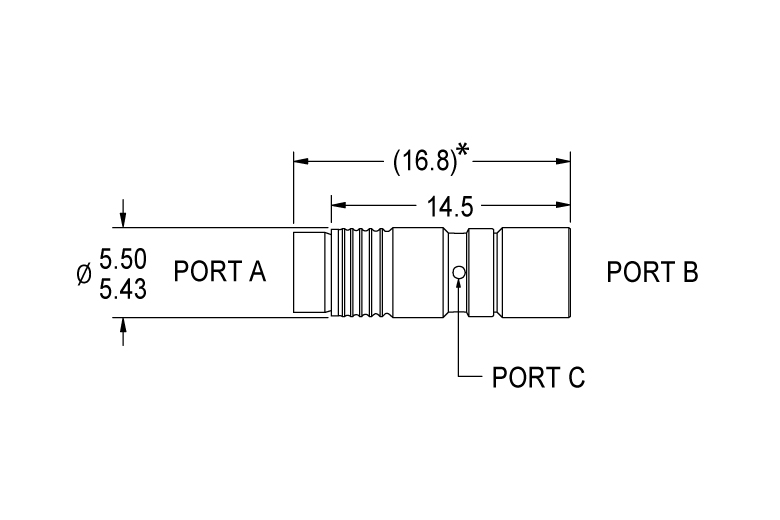

This threadless, cartridge-style, check valve is designed with an integral piloting piston to enable piloted actuation. It acts as a check valve under normal conditions, and when pilot pressure is applied to Port B it opens the valve to allow flow from Port A to Port C. Rugged construction and is 100% performance-tested to ensure consistent operation over time. This 5.5 mm check valve features The Lee Company’s field-proven locking end that provides retention into metal manifolds without the use of threads, O-rings, or sealants.
| Characteristic | Specification |
|---|---|

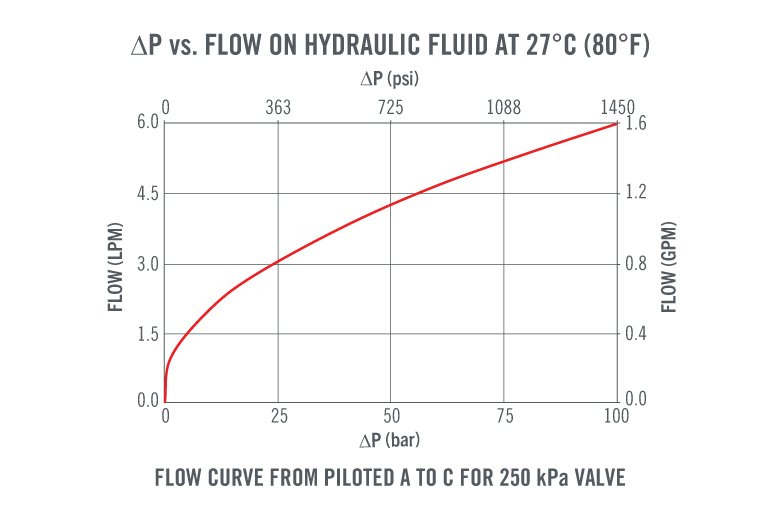

| Piloted Lohm Rate [Port A to Port C] | 525 Lohms |
| Minimum Pilot Ratio [Port A to Port B] | 3:1 |
| Valve Flow Direction | Reverse Flow |
| Cracking Pressure Definition | Is the uprun pressure at which the valve will flow more than 50 SCCM of air. |
| Checked Direction Leakage [Port A to Port C] | 20 SCCM (max.) at 172 kPa (25 psid) on Air |
| Maximum Working Pressure Differential | 280 bar |

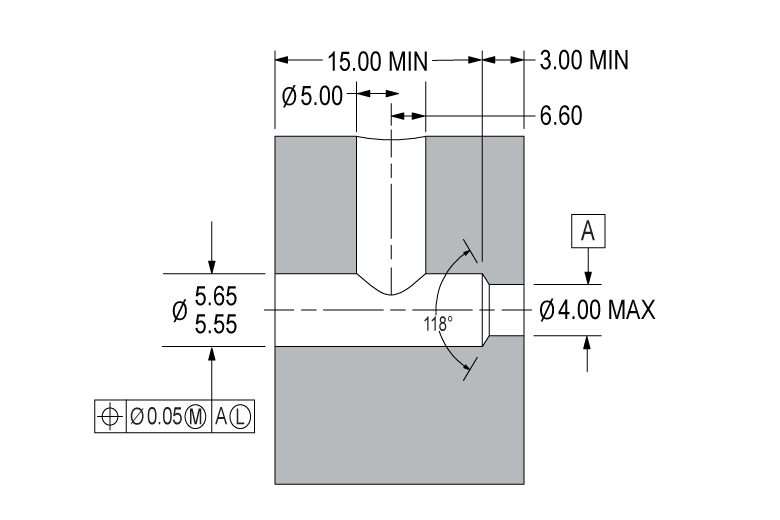

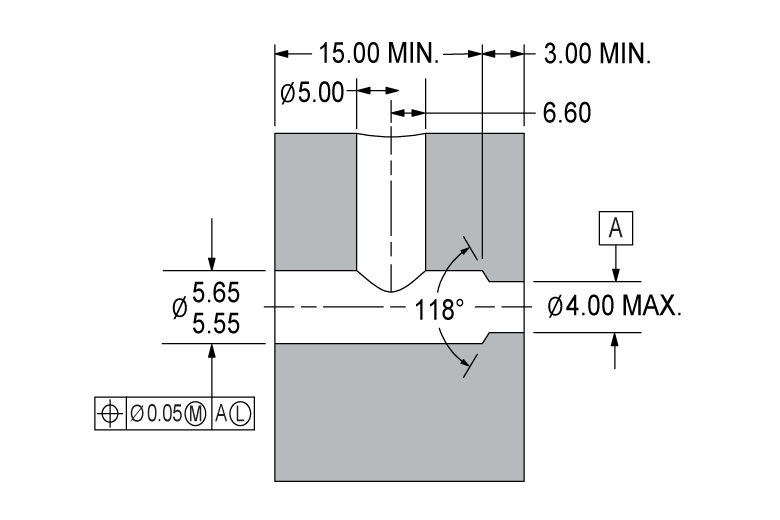

| Installation Force | 5.3 kN (min.) to 6.2 kN (max.) |
| COMPONENT | MATERIAL |
|---|---|
| Upper Body | 303 Stainless Steel |
| Lower Body | 303 Stainless Steel |
| Cage | 305 Stainless Steel |
| Pin | 416 Stainless Steel |
| Spring | 302 Stainless Steel |
| Ball | 440C Stainless Steel |
| Seal | FKM |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0900120S | 5.5 mm Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
