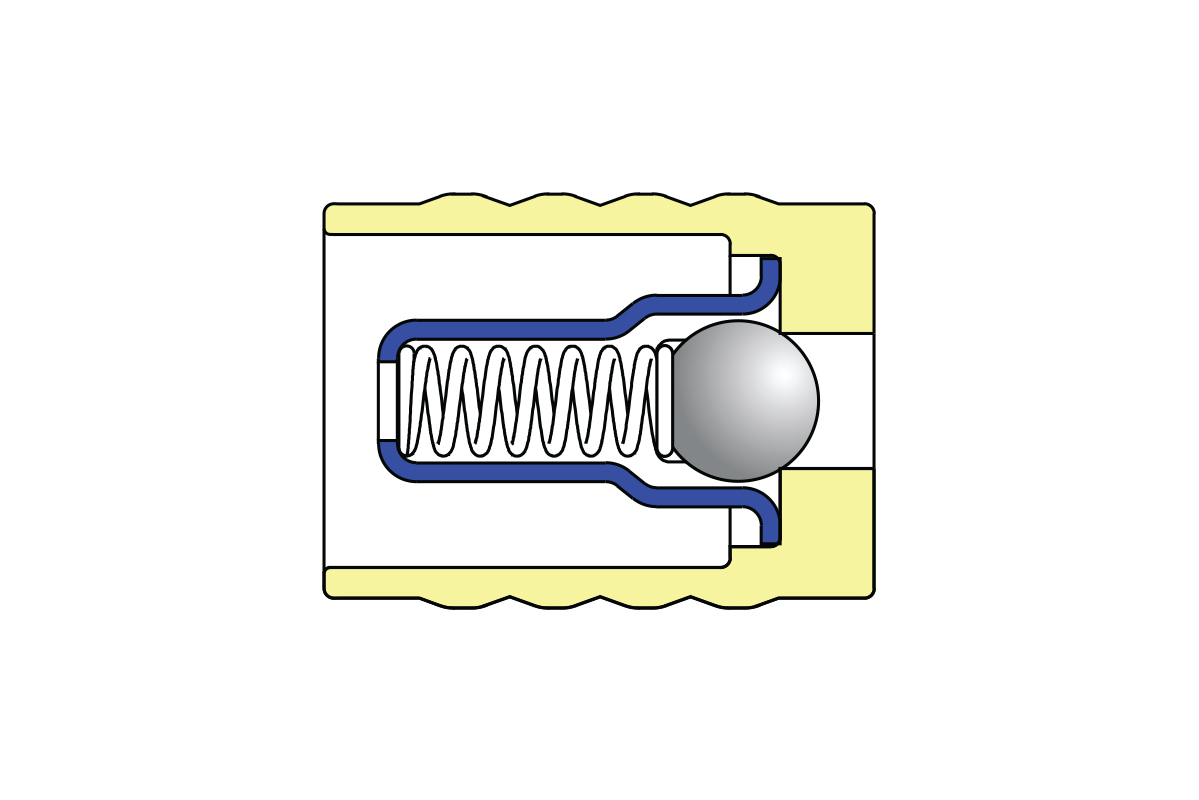

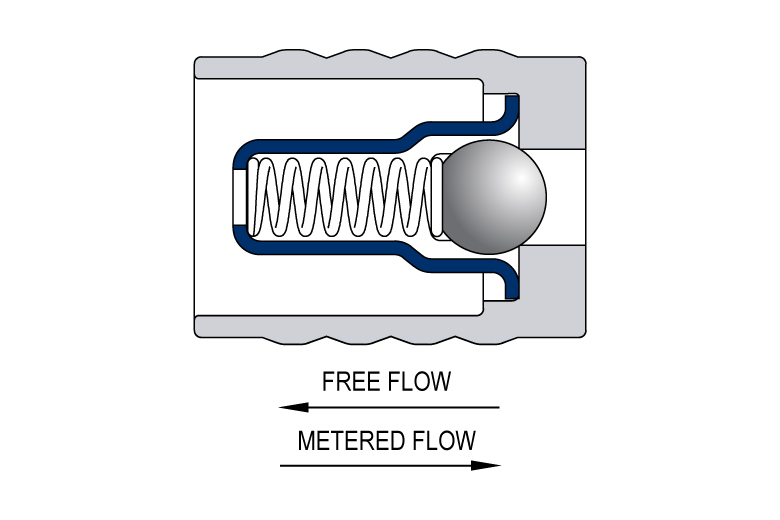

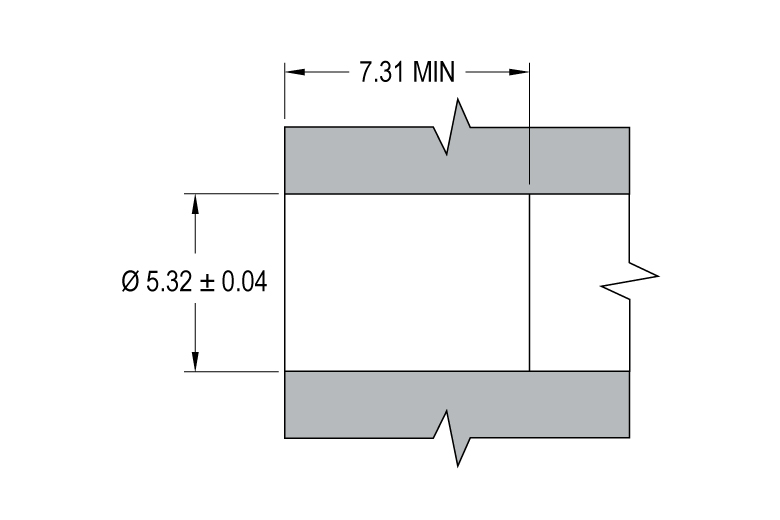

The 5.5mm Press-in Flow Control Valves are, functionally, an orifice in parallel with a check valve, all in one 5.5mm diameter, cartridge-style package. These valves are designed for installation into plastic housings and fittings or soft tubing. Their unique barbed design provides easy “press-in” installation ensuring retention and prevents any by-pass leakage around the valve. The valves are all stainless steel construction providing compatibility with a wide range of fluids and gases and contain a high-quality metal to metal seat for highly repeatable cracking pressures and long life. All valves are 100% flow tested for consistent batch to batch performance.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
