Check Valves

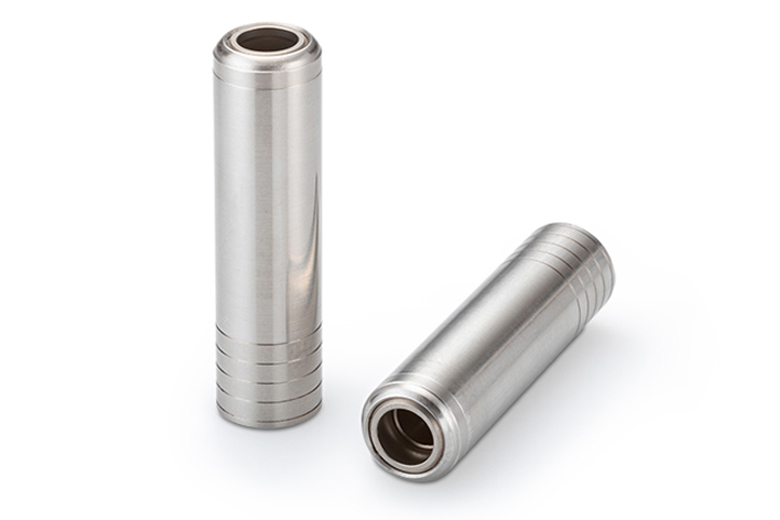

500 High Pressure Check Valve

This miniature, high pressure check valve is only 0.5 inches in diameter and 1.8 inches in length. Its robust design prevents backflow in high pressure systems up to 8000 psi. It is ideal for applications with flow rates up to 20 GPM.

Key Product Facts
  • Poppet-Style Check Valves
  • Diameter:0.5 inches
  • Lohm Rate:15 Lohms max
  • Operating Pressures:Up to 8000 psi
  • Leakage:1 drop / hour at 8000 psi

Product Information

General Performance
Cracking Pressure 5 ± 3 psid or 1 ± 0.5 psid
Maximum Leakage in Checked Direction at 5 psid 1 Drop/Minute
Maximum Leakage in Checked Direction at 1000-8000 psid 1 Drop/Hour
Lohm Rate at 15 psid and Greater 15 Lohms Maximum
Nominal System Pressure Up to 8000 psi
Nominal Weight 29 grams
Test Fluid MIL-PRF-83282 at 85°F
Materials
PART MATERIAL SPECIFICATION
Body 304 CRES AMS 5639
Pin 15-5PH CRES AMS 5659
Poppet 15-5PH CRES AMS 5659
Spring 17-7PH CRES AMS 5678
Spring Seat 303 CRES QQ-S-763C
Finish: All CRES parts passivated.
Pins are prewaxed. Do not degrease. Do not lubricate.

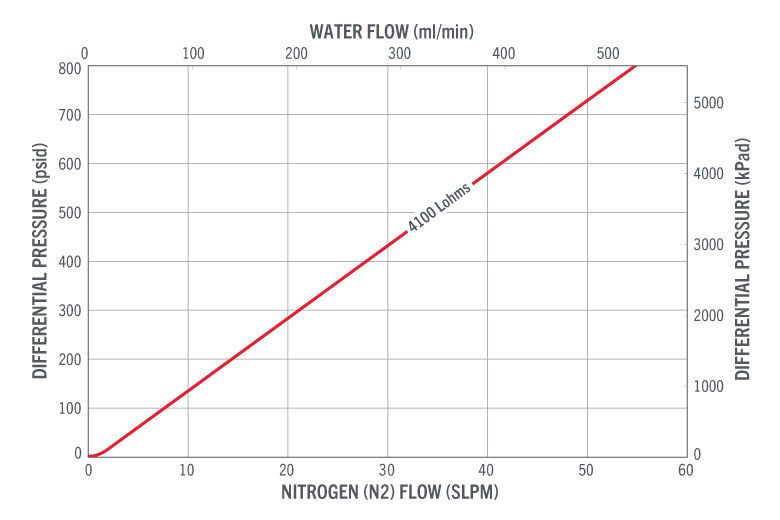

Flow Curve

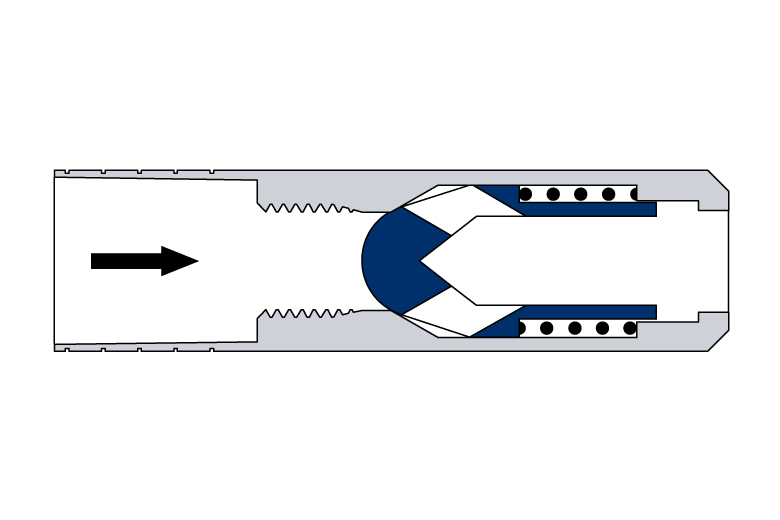

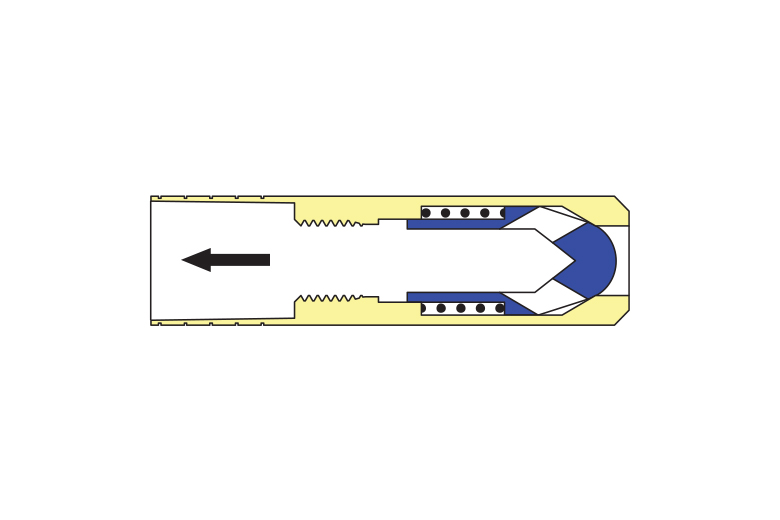

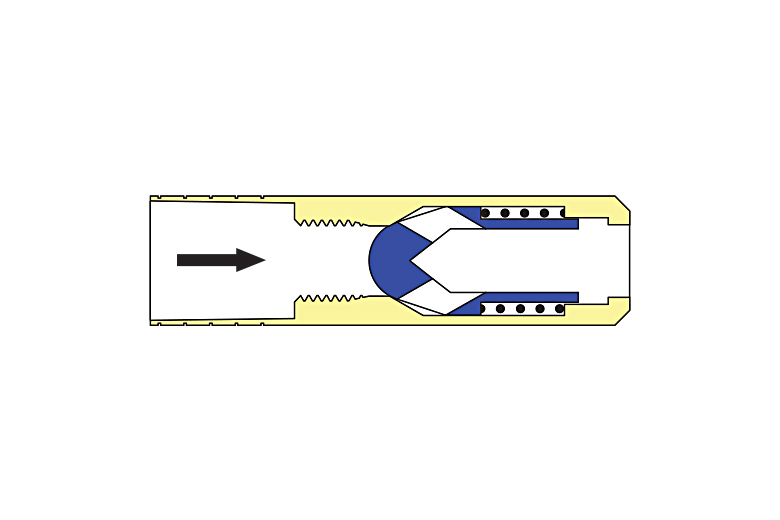

Cross Section Views

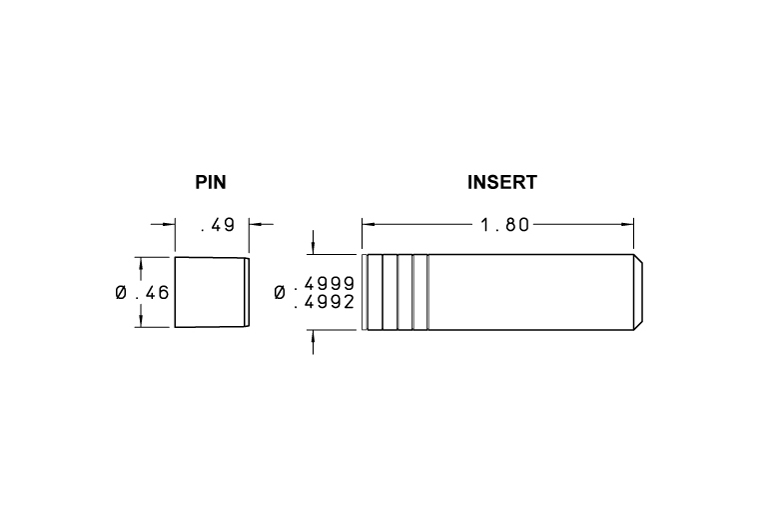

Dimensional View

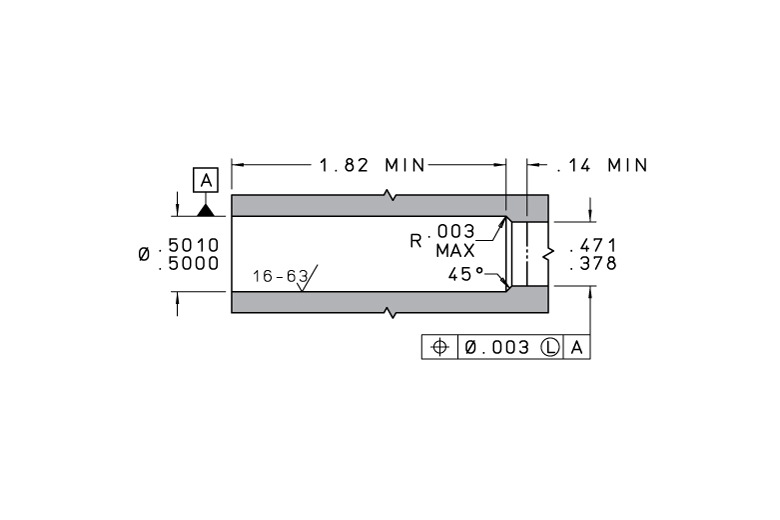

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER CRACKING PRESSURE (psid) LOHM RATE FLOW DIRECTION Request Information
CHFA5006505A 5 ± 3 15 Lohms Maximum Forward Request
CHFA5006501A 1 ± 0.5 15 Lohms Maximum Forward Request
CHRA5006505A 5 ± 3 15 Lohms Maximum Reverse Request
CHRA5006501A 1 ± 0.5 15 Lohms Maximum Reverse Request

Installation & Accessories

Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CUTA5000206C Installation / Extraction Tool Set
CHFA5000003A Replacement Pin

CAD Envelopes
