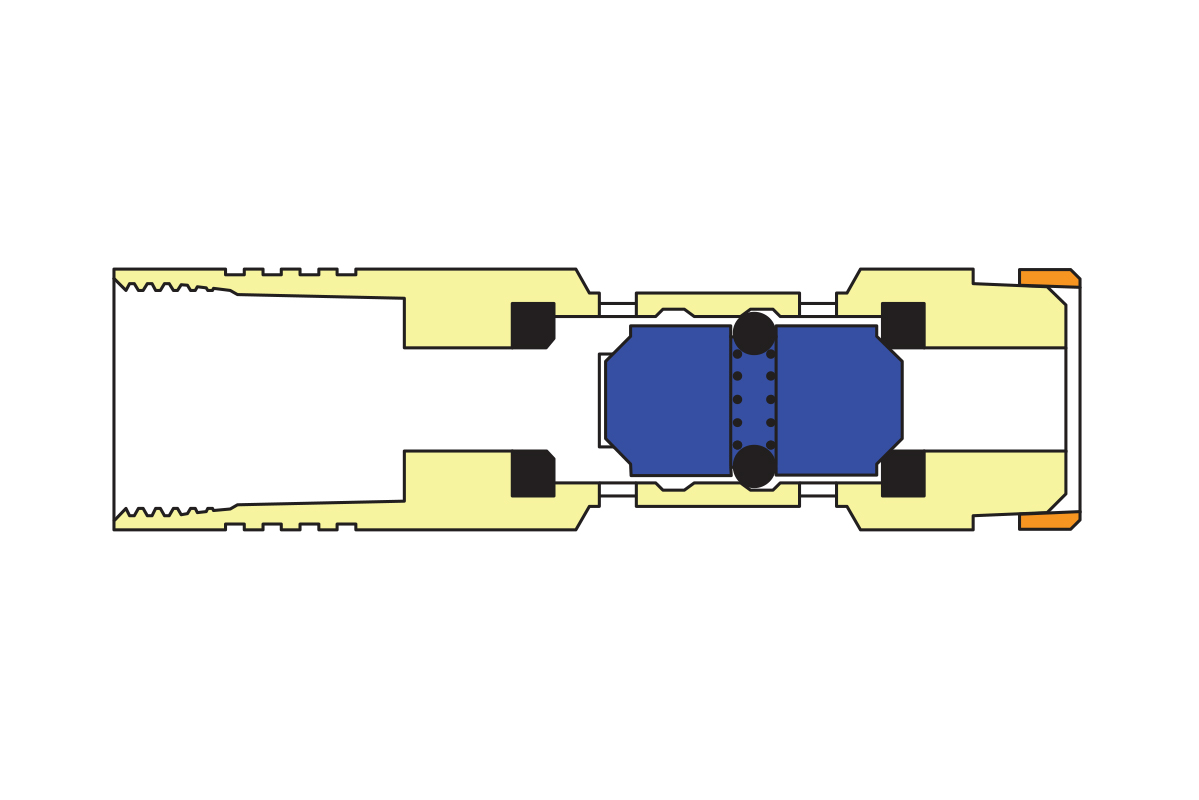

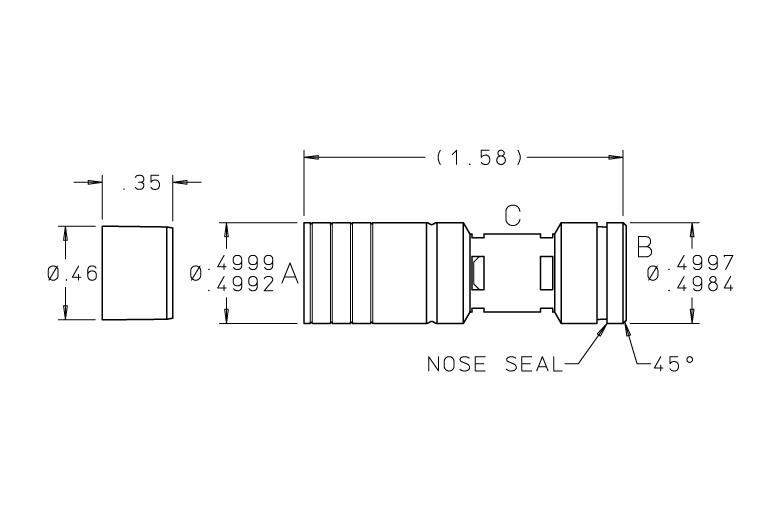

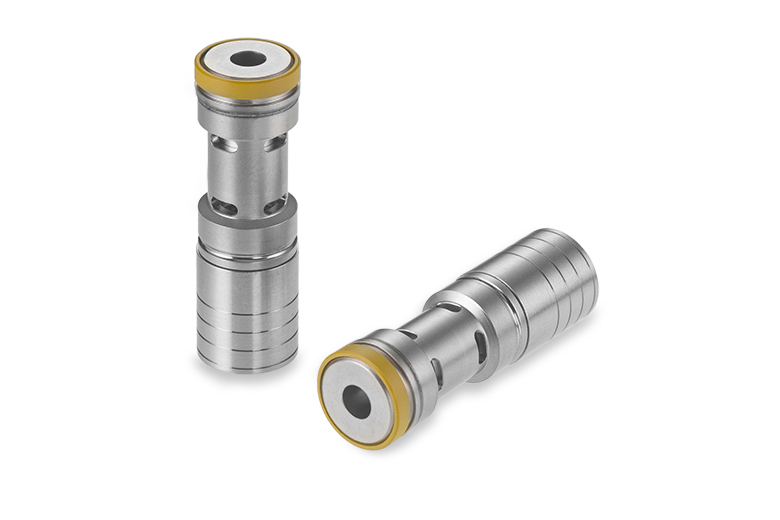

This miniature shuttle valve incorporates a polyimide valve seat to create a leak tight seal when tested on nitrogen. The valve is only .500” in diameter and 1.58” in length. This shuttle valve incorporates a detent mechanism that can latch the poppet at either of the inlet ports. This is beneficial when bi-direction flow is needed in either poppet position. It is ideal for applications with flow rates up to 20 gpm. Rated for operating pressures up to 5,000 psid.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
