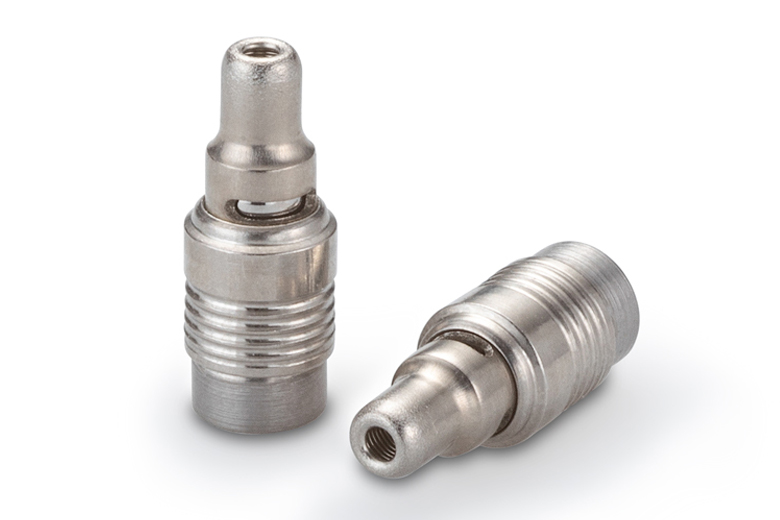

558 LC Series Check Valve

This threadless, cartridge-style, one-way valve offers higher flow capacity over our standard 558 Series valve. This valve features The Lee Company’s field-proven locking end that provides secure retention into metal manifolds without the need for threads, O-rings, or sealants. The valve features all stainless steel construction with a high quality metal seat providing low leakage, repeatable cracking pressure, and long life. The valve is 100% functionally tested to ensure performance.

Key Product Facts
  • Mounting Configuration:Insert - Into Metal
  • Diameter:5.47 mm
  • Lohm Rate:150 Lohms
  • Maximum Working Pressure:280 Bar
  • Valve Seat Type:Metal to Metal

Product Information

General Performance
Characteristic Specification
Lohm Rate 150 Lohms
Leakage 10 SCCM (max) at 172 kPa (25 psid) on Air
Maximum Working Pressure, Checked Direction 280 Bar
Maximum Working Pressure Differential, Flow Direction 40 Bar
Installation Force 625 kgf (max)
Materials
COMPONENT MATERIAL
Body 303 Stainless Steel
Cage 305 Stainless Steel
Pin 416 Stainless Steel
Spring 302 Stainless Steel
Ball 440C Stainless Steel

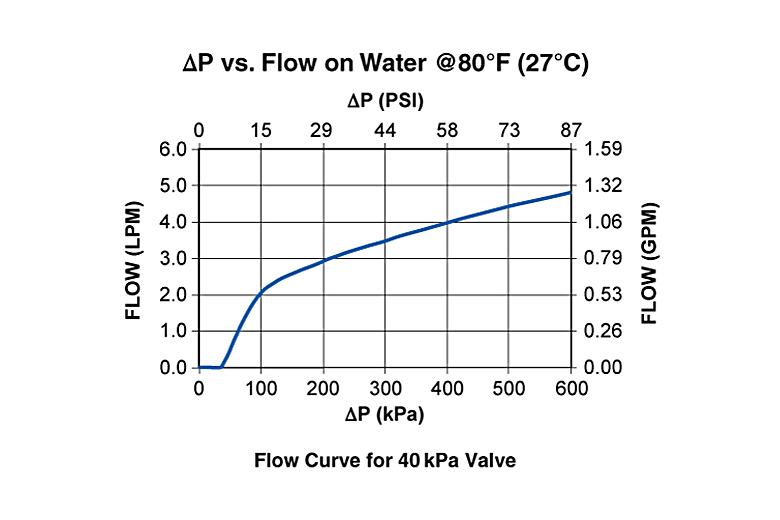

Flow Curve

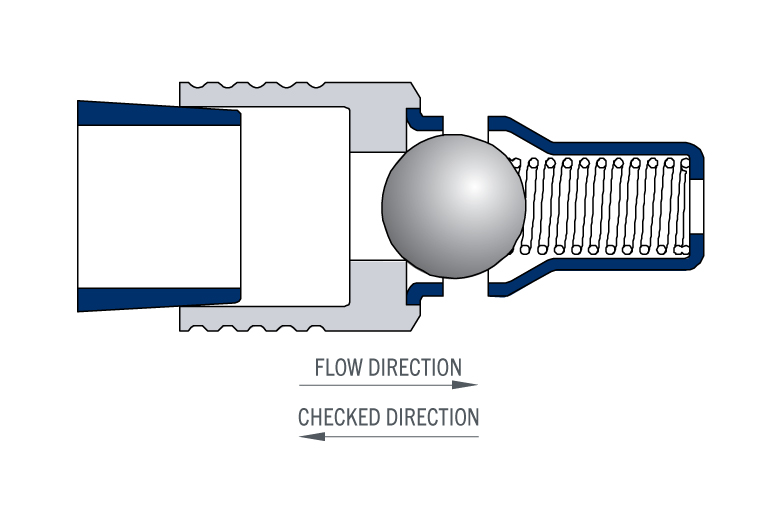

Cross Section View

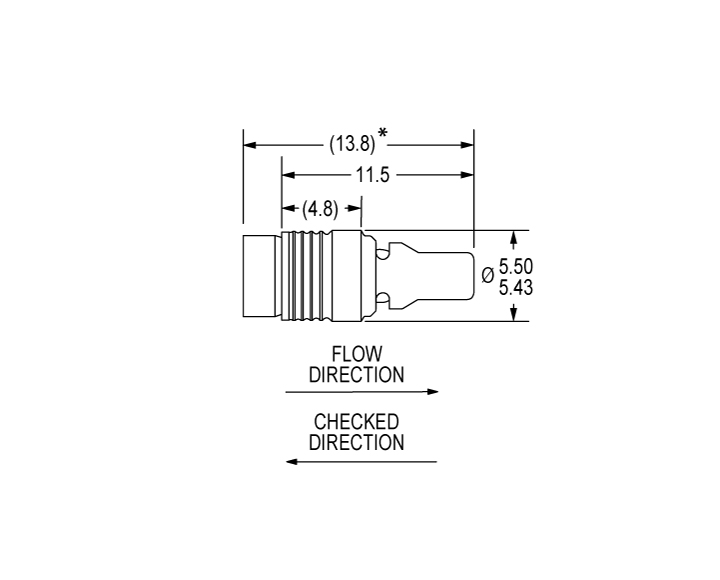

Dimensional View

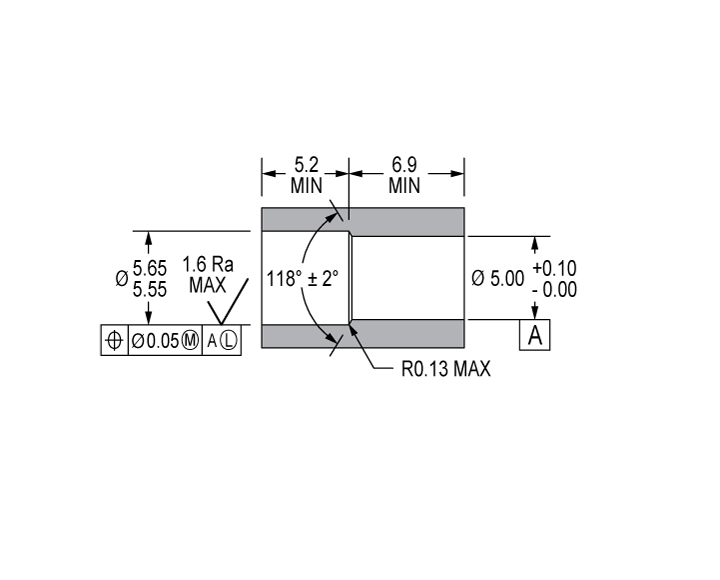

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER FLOW DIRECTION LOHM RATE CRACKING PRESSURE INSTALLATION HOLE DRAWING NUMBER Request Information
CLCF5510000S Forward 150 Lohms 0 kPa (No Spring) 1INST071709S Request
CLCF5510004S Forward 150 Lohms 4 ± 3 kPa (0.6 ± 0.4 psid) 1INST071709S Request
CLCF5510007S Forward 150 Lohms 7 ± 5 kPa (1 ± 0.7 psid) 1INST071709S Request
CLCF5510014S Forward 150 Lohms 14 ± 5 kPa (2 ± 0.7 psid) 1INST071709S Request
CLCF5510040S Forward 150 Lohms 40 ± 15 kPa (6 ± 2.2 psid) 1INST071709S Request
CLCF5510069S Forward 150 Lohms 69 ± 17.3 kPa (10 ± 2.5 psid) 1INST071709S Request

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0900120S 558 Series Installation Tool
