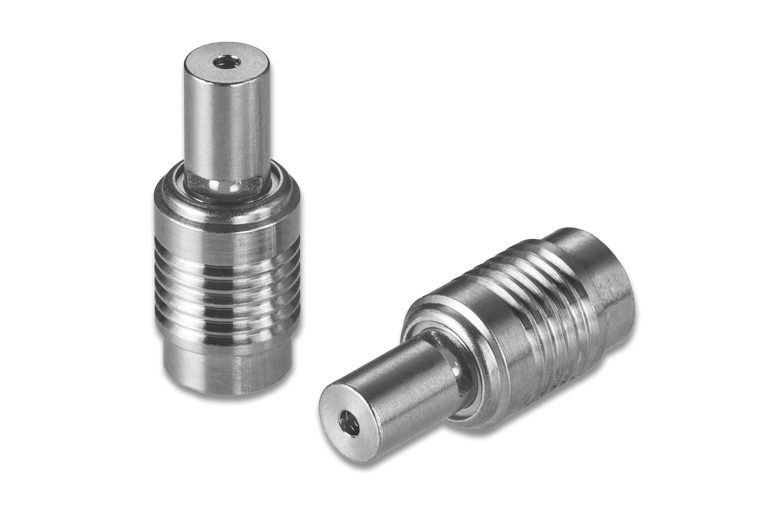

6 mm Zero Leak 316L Check Valve

This threadless, cartridge-style, one-way valve is made with an elastomeric seat for improved checked direction leakage performance. The valve features 316L stainless steel construction with a ceramic ball which provides compatibility with a wide range of aggressive fluids and gases, like hydrogen. This 6 mm valve features The Lee Company’s field-proven locking end that provides retention into metal manifolds without the use of threads, O-rings, or sealants. The valve is 100% performance tested.

Key Product Facts
  • Mounting Configuration:Insert - Into Metal
  • Diameter:5.97 mm
  • Lohm Rate:250 Lohms
  • Maximum Working Pressure:400 bar
  • Valve Seat Type:Elastomeric

Product Information

General Performance
Characteristic Specification
Lohm Rate 250 Lohms
Valve Flow Direction Forward Flow
Cracking Pressure Definition Is the uprun pressure at which the valve will flow more than 300 SCCM of air.
Checked Direction Leakage Zero drops/minute on hydraulic fluid. Verified on air (0.05 SCCM maximum at 150 kPa).
Maximum Working Pressure, Checked Direction 400 Bar
Maximum Working Pressure Differential, Flow Direction 40 Bar
Installation Force Is a function of boss material, installation hole dimensions and boss geometry. See installation procedure for a list of recommened forces per boss material.
Materials
COMPONENT MATERIAL
Body 316L Stainless Steel
Cage 316L Stainless Steel
Pin 316L Stainless Steel
Spring 316L Stainless Steel
Ball Ceramic
Seal EPDM or FKM
Other seal materials are available upon request. Please contact your local Lee Sales Engineer for more information.

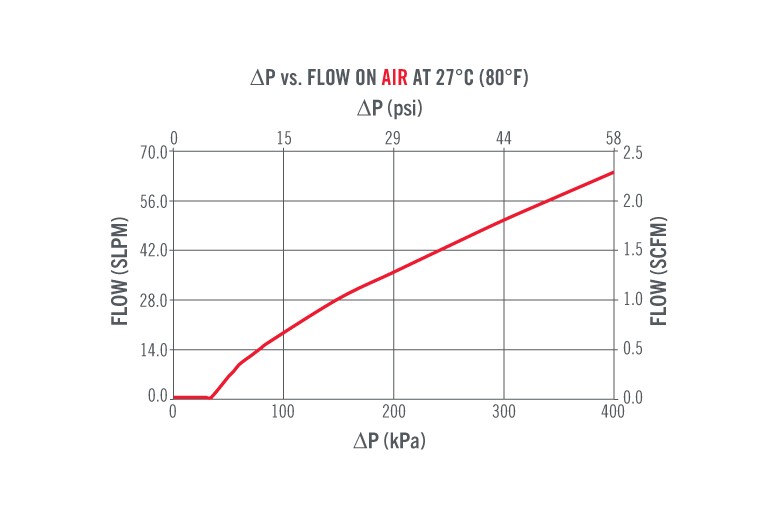

Flow Curves

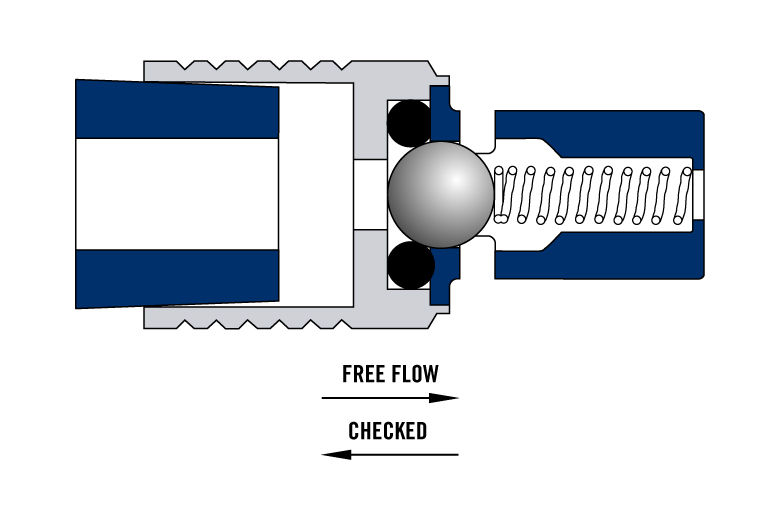

Cross Section View

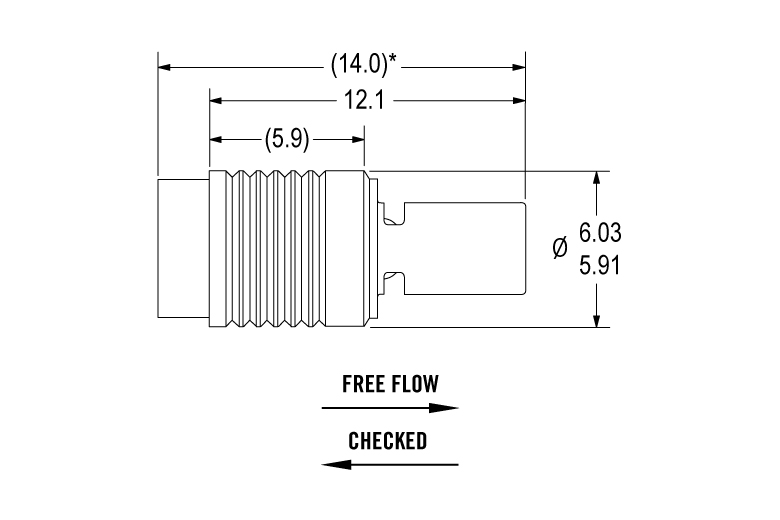

Dimensional View
Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
CRACKING PRESSURE
SEAL MATERIAL
PART NUMBER FLOW DIRECTION LOHM RATE
CRACKING PRESSURE
SEAL MATERIAL
INSTALLATION HOLE DRAWING NUMBER APPROXIMATE WEIGHT Request Information
CZFM6041004S Forward 250 Lohms 4 ± 3 kPa (0.6 ± 0.4 psid) FKM 1INST088574S 1.3 grams Request
CZFM6041007S Forward 250 Lohms 7 ± 5 kPa (1 ± 0.7 psid) FKM 1INST088574S 1.3 grams Request
CZFM6041014S Forward 250 Lohms 14 ± 10 kPa (2 ± 1.4 psid) FKM 1INST088574S 1.3 grams Request
CZFM6041040S Forward 250 Lohms 40 ± 30 kPa (6 ± 4.4 psid) FKM 1INST088574S 1.3 grams Request
CZFM6041069S Forward 250 Lohms 69 ± 48 kPa (10 ± 7.0 psid) FKM 1INST088574S 1.3 grams Request
CZFM6042004S Forward 250 Lohms 4 ± 3 kPa (0.6 ± 0.4 psid) EPDM 1INST088574S 1.3 grams Request
CZFM6042007S Forward 250 Lohms 7 ± 5 kPa (1 ± 0.7 psid) EPDM 1INST088574S 1.3 grams Request
CZFM6042014S Forward 250 Lohms 14 ± 10 kPa (2 ± 1.4 psid) EPDM 1INST088574S 1.3 grams Request
CZFM6042040S Forward 250 Lohms 40 ± 30 kPa (6 ± 4.4 psid) EPDM 1INST088574S 1.3 grams Request
CZFM6042069S Forward 250 Lohms 69 ± 48 kPa (10 ± 7.0 psid) EPDM 1INST088574S 1.3 grams Request
Clear Filters
Other seal materials are available upon request. Please contact your local Lee Sales Engineer for more information.

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0051078S 6 mm Installation Tool
