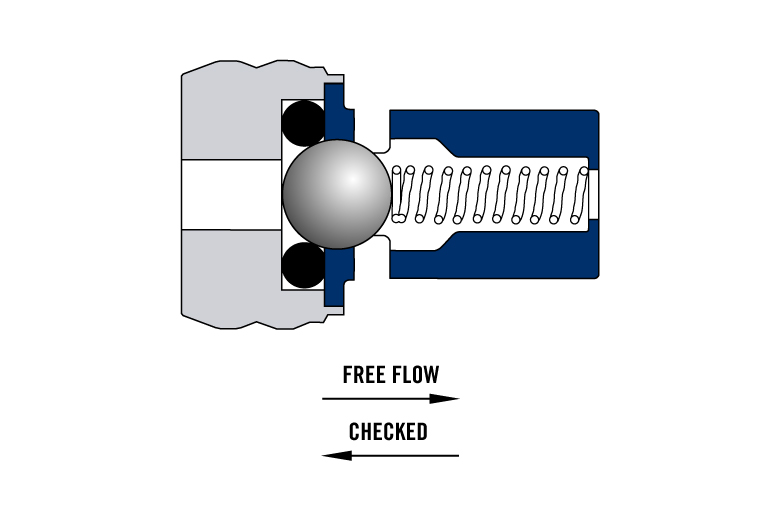

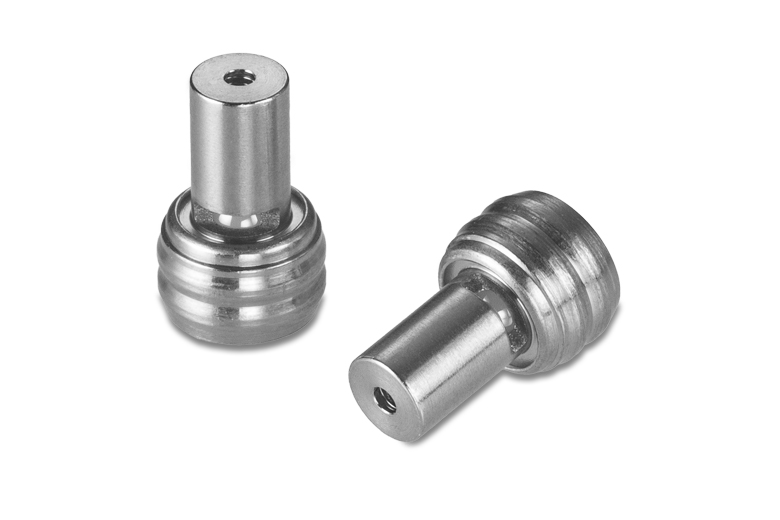

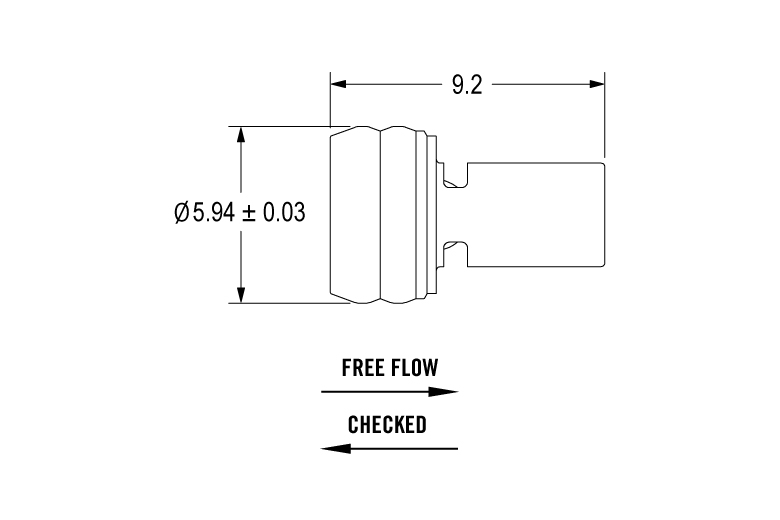

This cartridge-style, non-return valve is made with an elastomeric seat for improved checked direction leakage performance. The valve features 316L stainless steel construction with a ceramic ball which provides compatibility with a wide range of aggressive fluids and gases, like hydrogen. This 6 mm valve is designed specifically for installation into plastic housings, fittings, or soft tubing. It can be installed in either direction, providing forward or reverse flow capabilities. The valve is 100% performance tested.
| Characteristic | Specification |
|---|---|
| Lohm Rate | 250 Lohms |
| Cracking Pressure Definition | Is the uprun pressure at which the valve will flow more than 300 SCCM of air |
| Checked Direction Leakage | Zero drops/minute on hydraulic fluid. Verified on air (0.05 SCCM maximum at 150 kPa). |
| Maximum Working Pressure | Dependent on Housing Material, Configuration, and Operating Conditions |
| COMPONENT | MATERIAL |
|---|---|
| Body | 316L Stainless Steel |
| Cage | 316L Stainless Steel |
| Spring | 316L Stainless Steel |
| Ball | Ceramic |
| Seal | EPDM or FKM |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0068699S | Forward 6 mm Press-In Installation Tool |
| CCRT0068697S | Reverse 6 mm Press-In Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

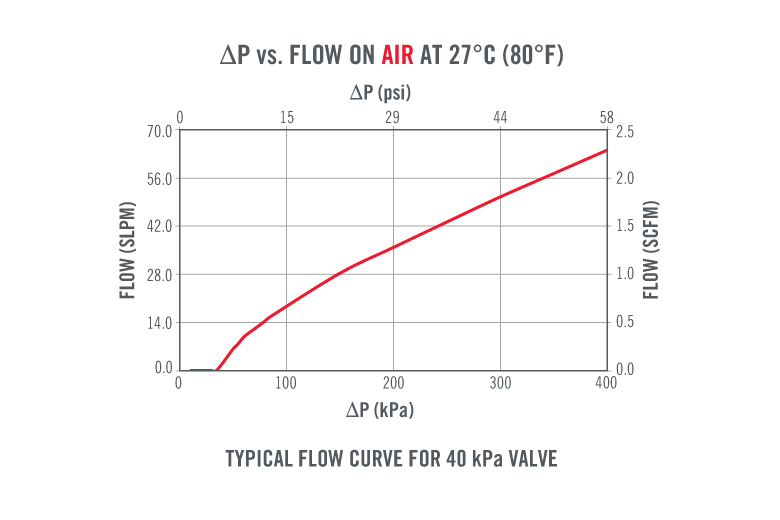

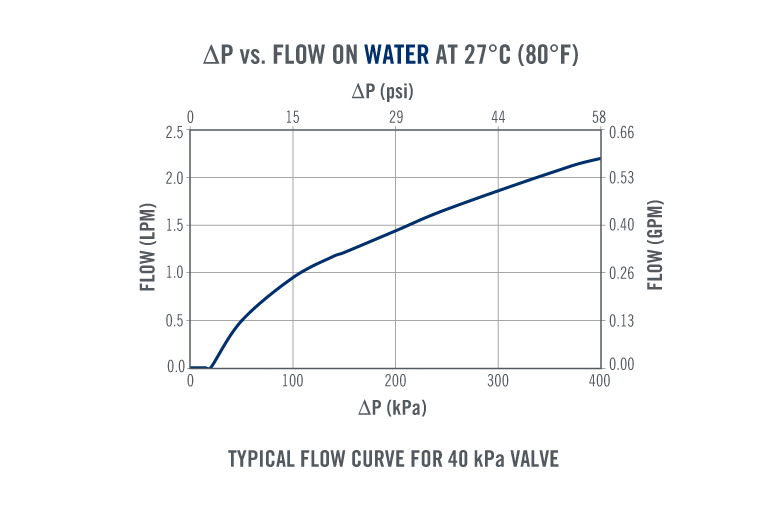

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
