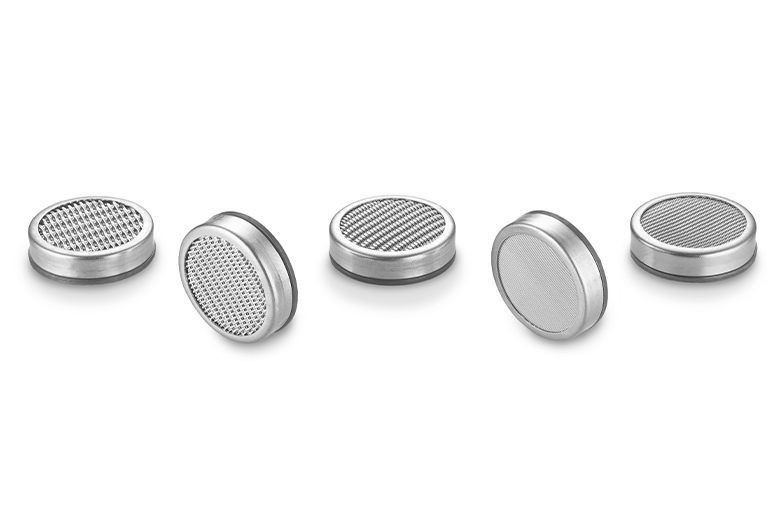

8 mm Cartridge Safety Screen Filter

This stainless steel safety screen filter is designed to protect critical fluid control components against rogue contamination. The filter uses a woven wire mesh design that is bonded together using a proprietary process to guarantee high strength and integrity. It is designed for extremely high pressure applications where meeting such pressures could otherwise cause a screen to rupture if it clogged. The filter is designed to slip into a drilled flat bottom hole and should be retained by a secondary means. This last chance filter is available in a range of micron ratings from 40 to 170 microns.

Key Product Facts
  • Mounting Configuration:Cartridge - Customer Retained
  • Lohm Rate:As low as 70 Lohms
  • Micron Rating:40 to 170 microns
  • Part Diameter:7.93 mm
  • Screenable Passageway Diameter:As large as 6.03 mm

Product Information

General Performance
Characteristic Specification
Screen Type Woven Wire Mesh
Flow Direction Bidirectional Flow
Minimum Burst Pressure 24 MPa
Screen Retainer Part Number SCRR8010001S
Screen Retainer Installation Force 680 KgF (Max.)
Materials
COMPONENT MATERIAL
Body 305 Stainless Steel
Pintal 17-7 Stainless Steel
Screen 316 Stainless Steel

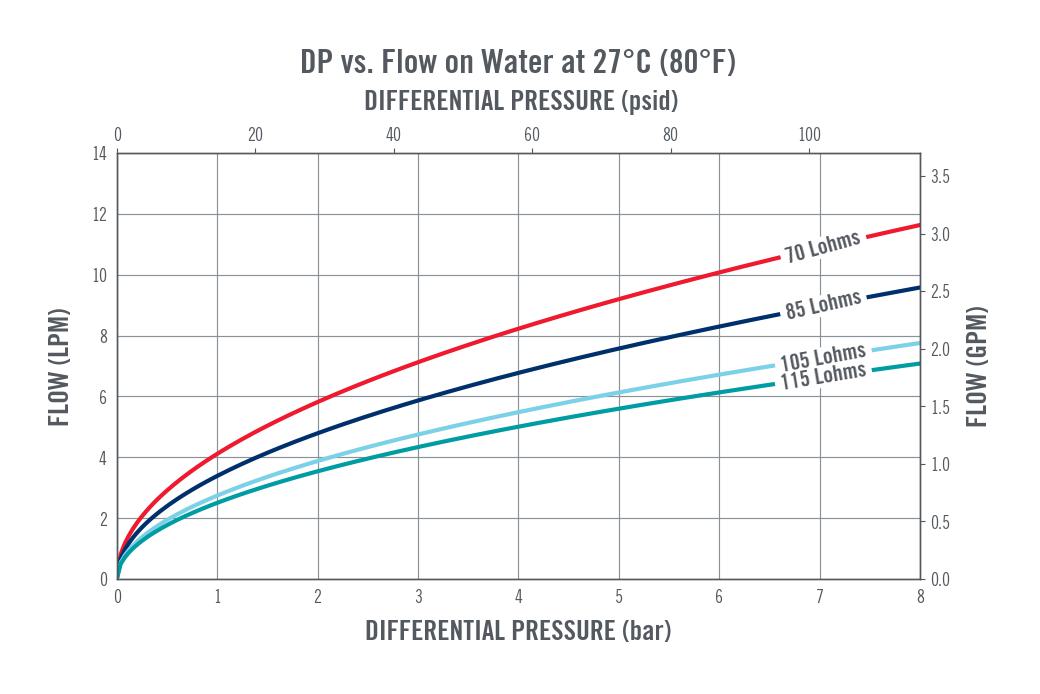

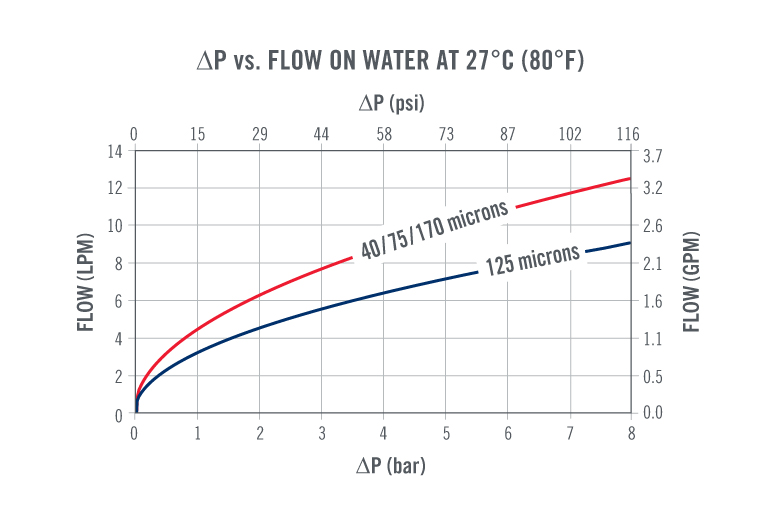

Flow Curve

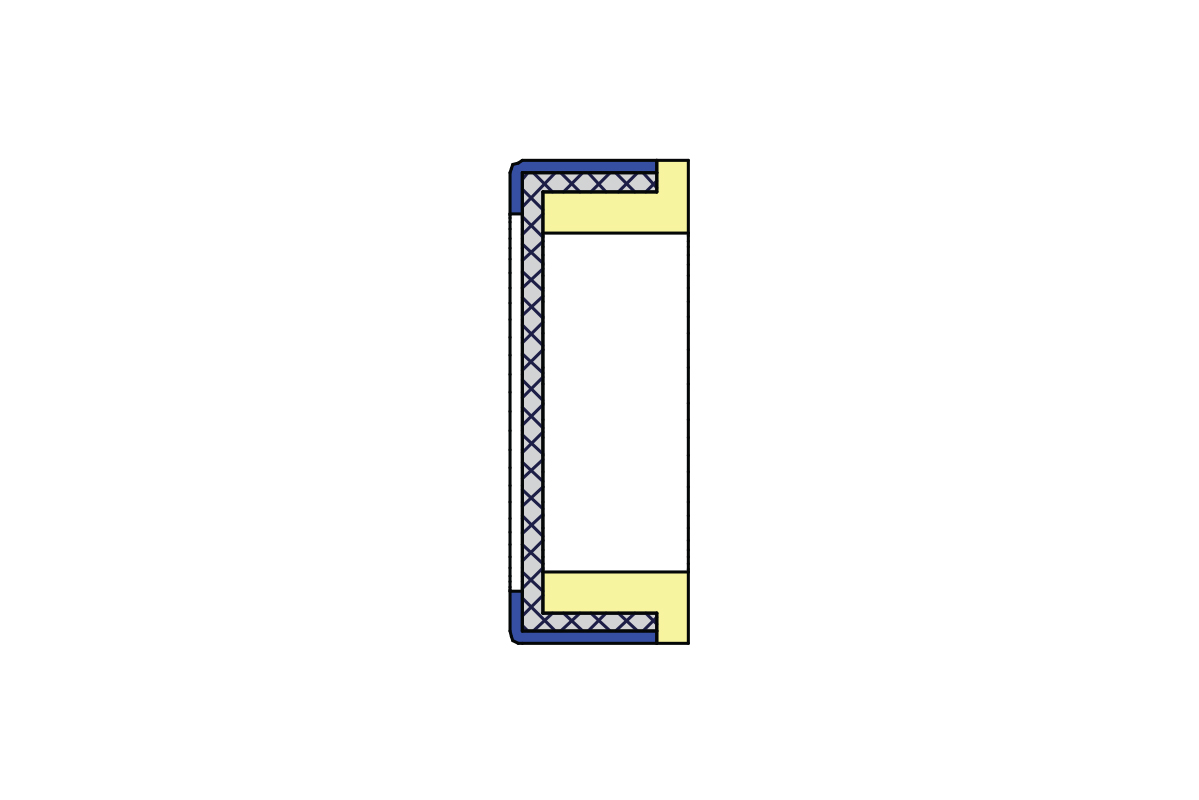

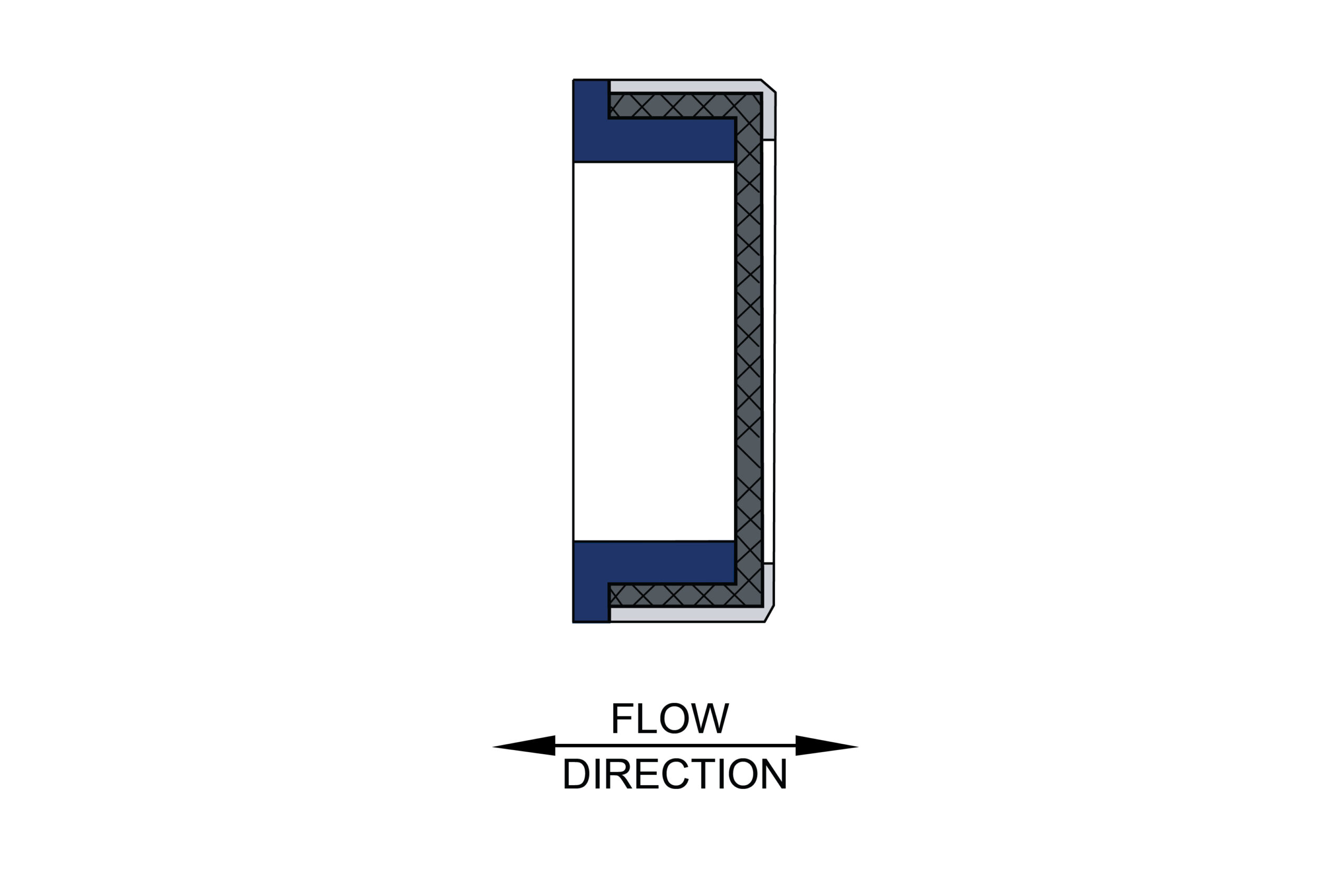

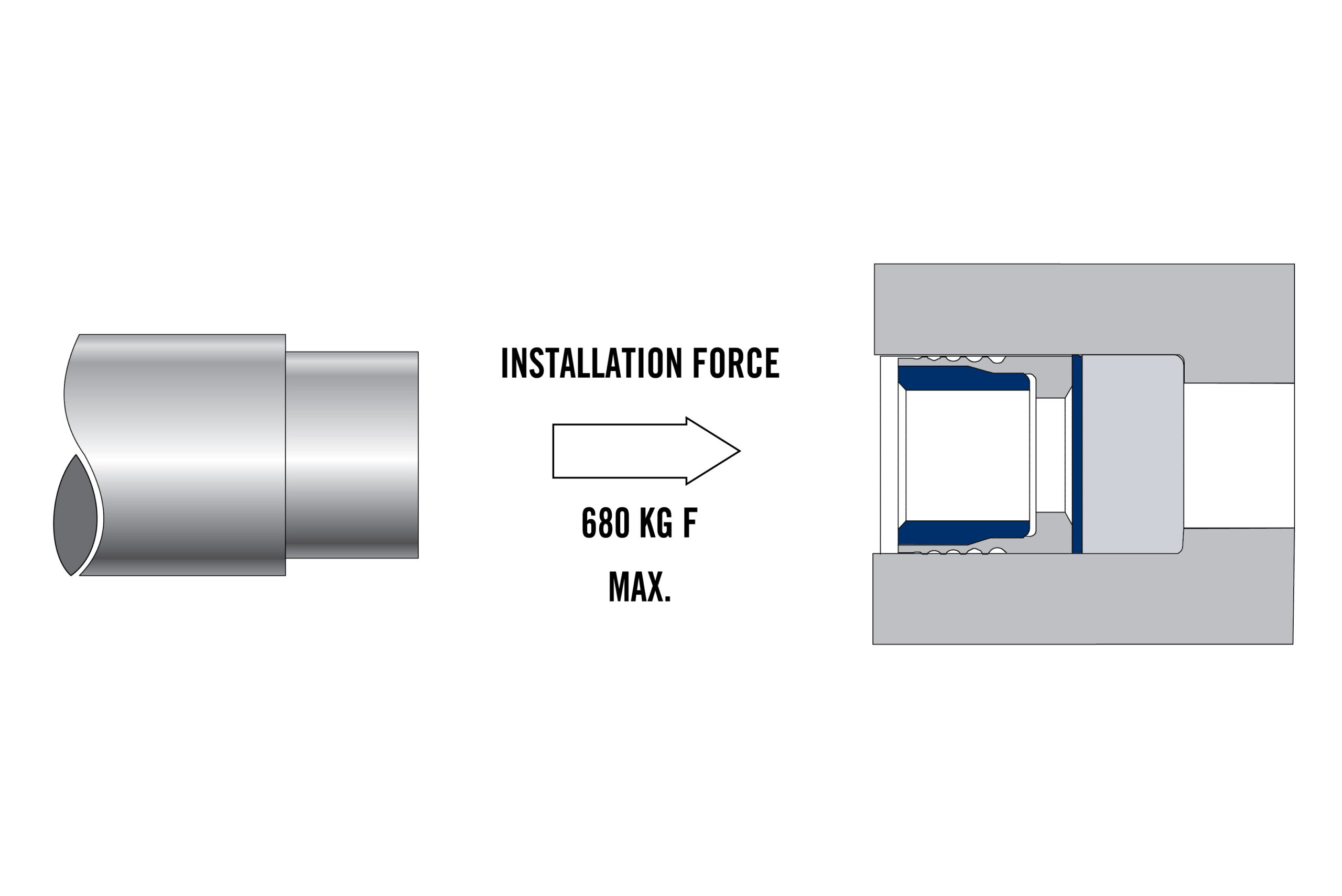

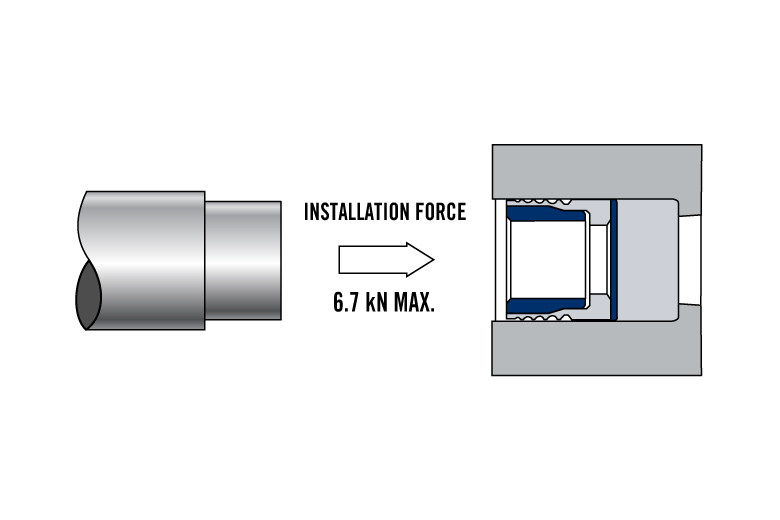

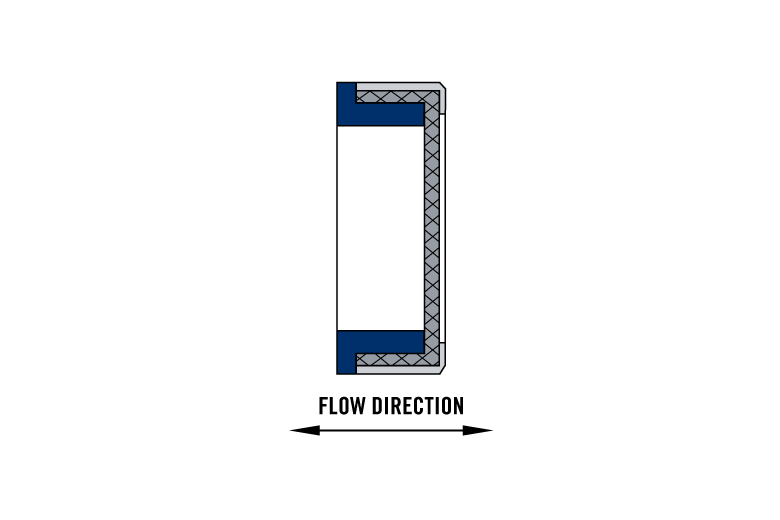

Cross Section Views

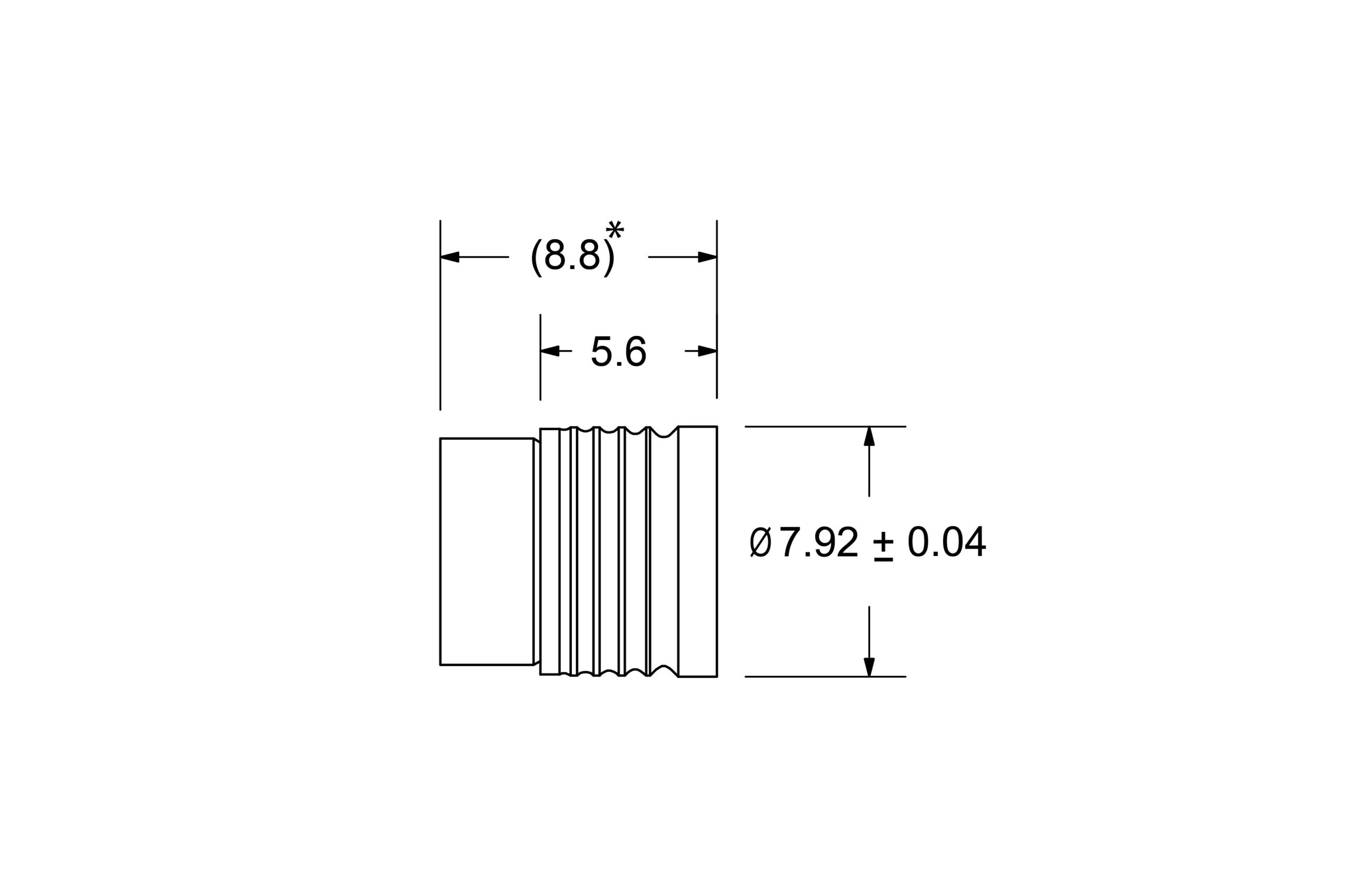

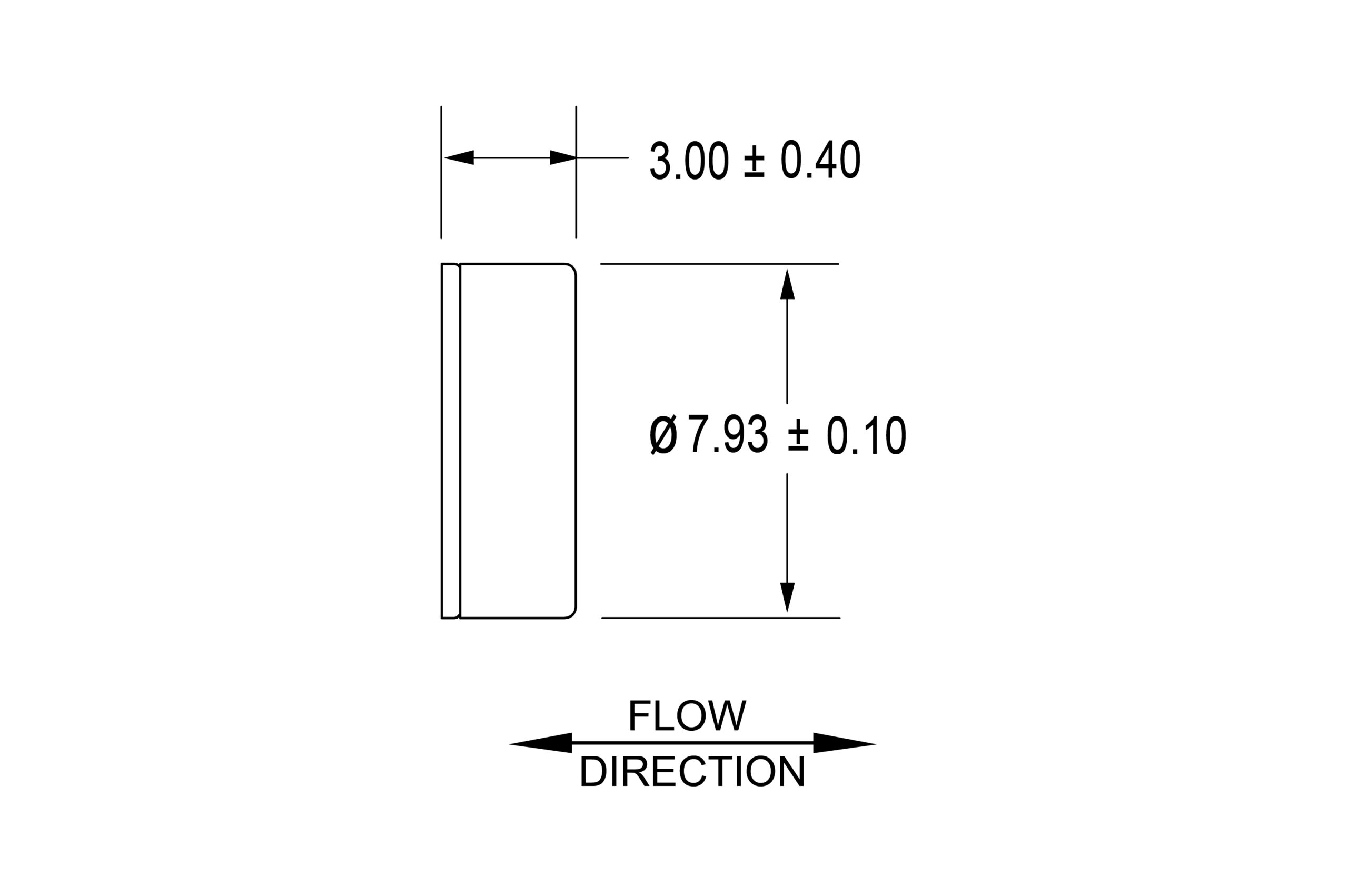

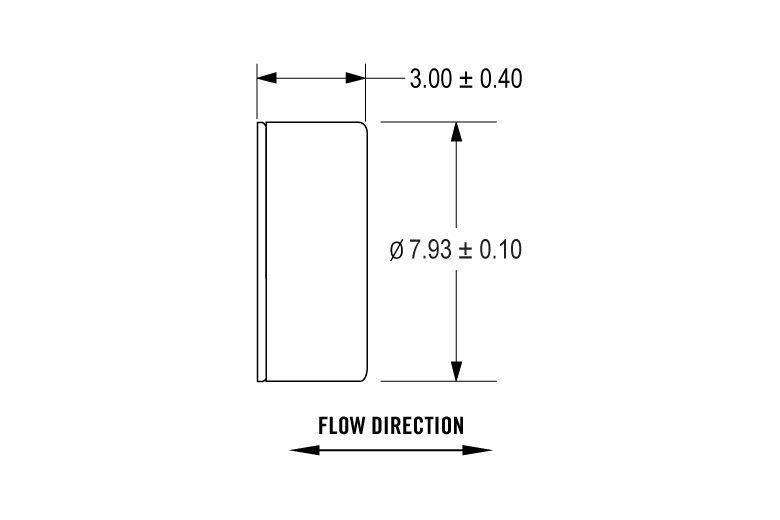

Dimensional Views

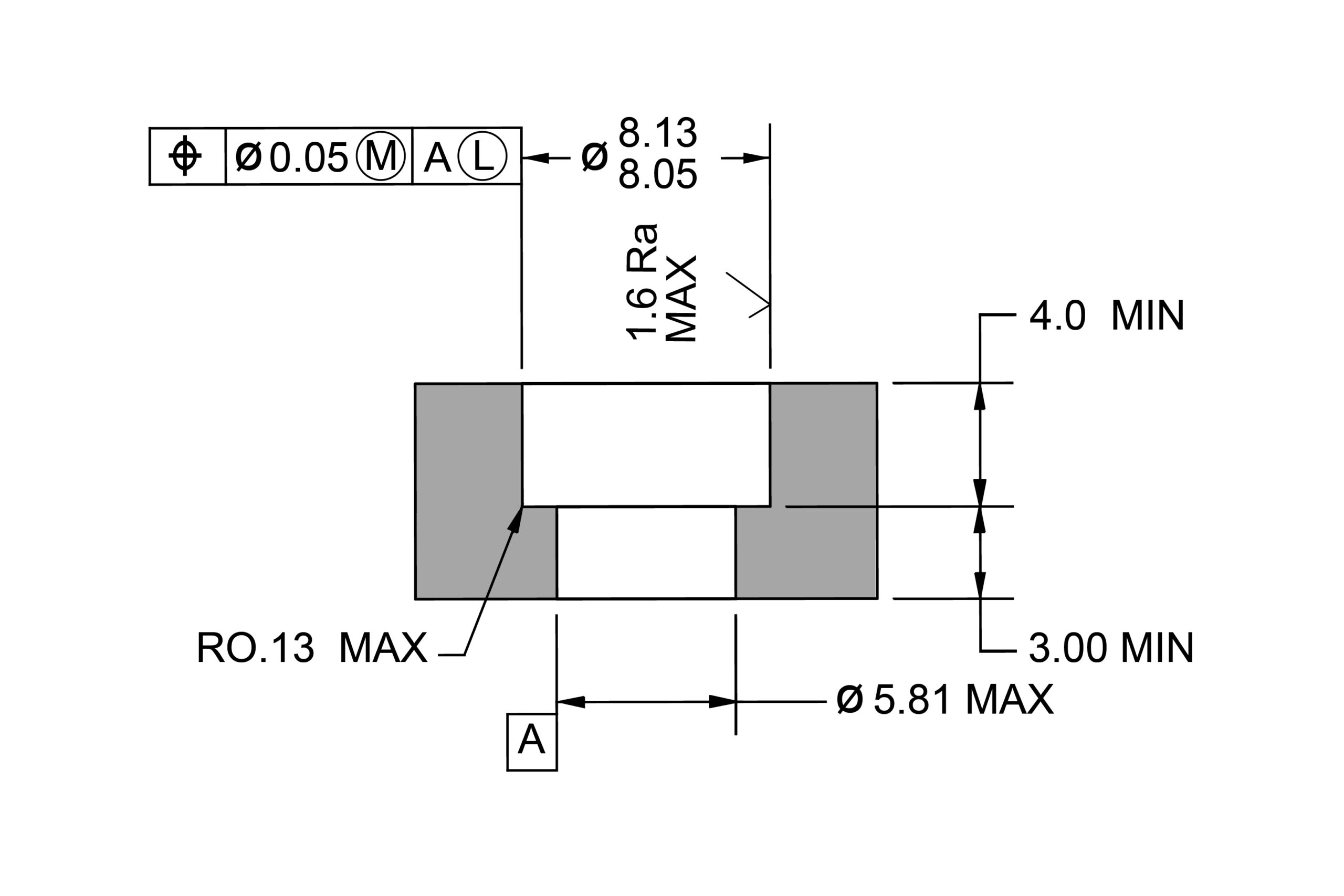

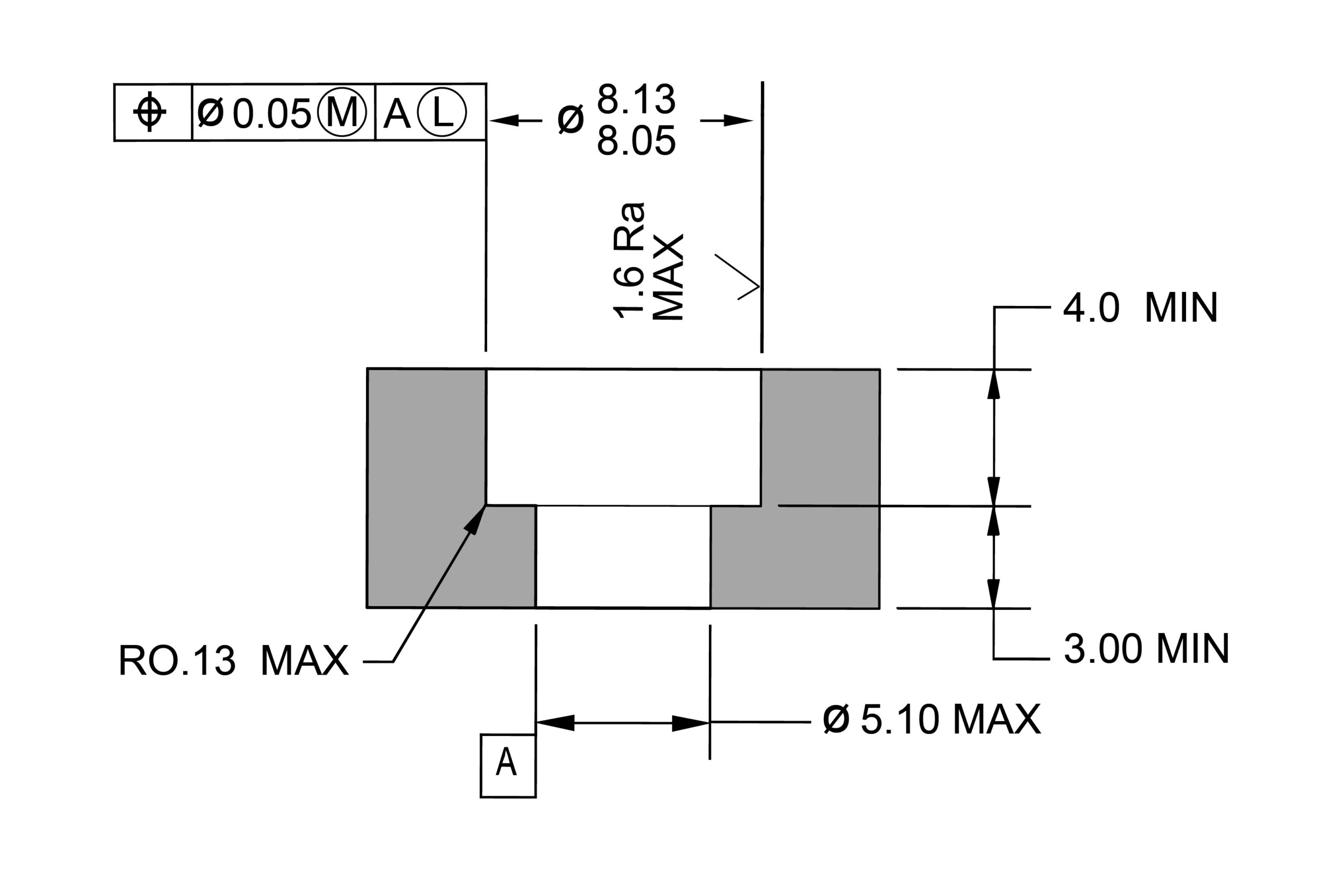

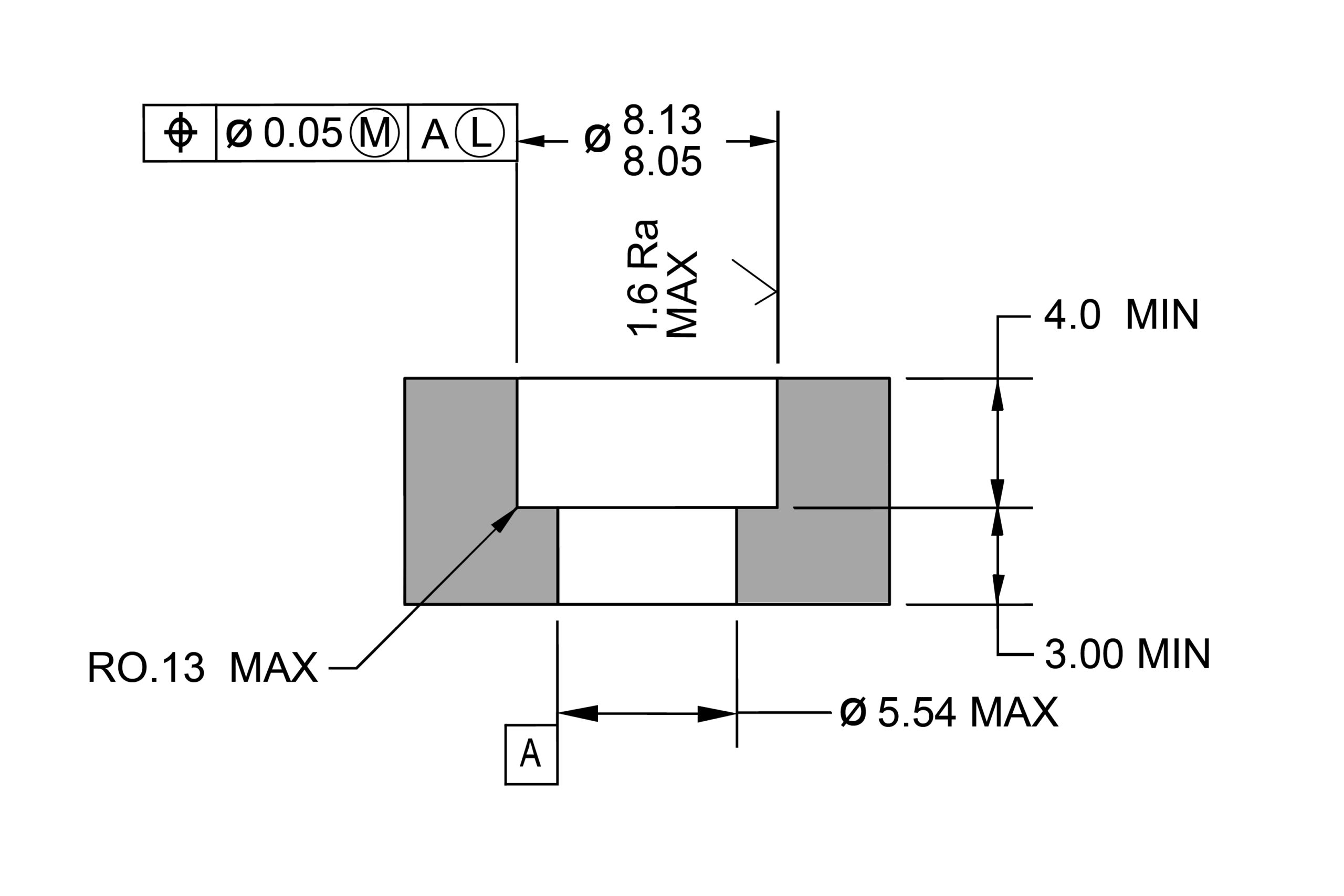

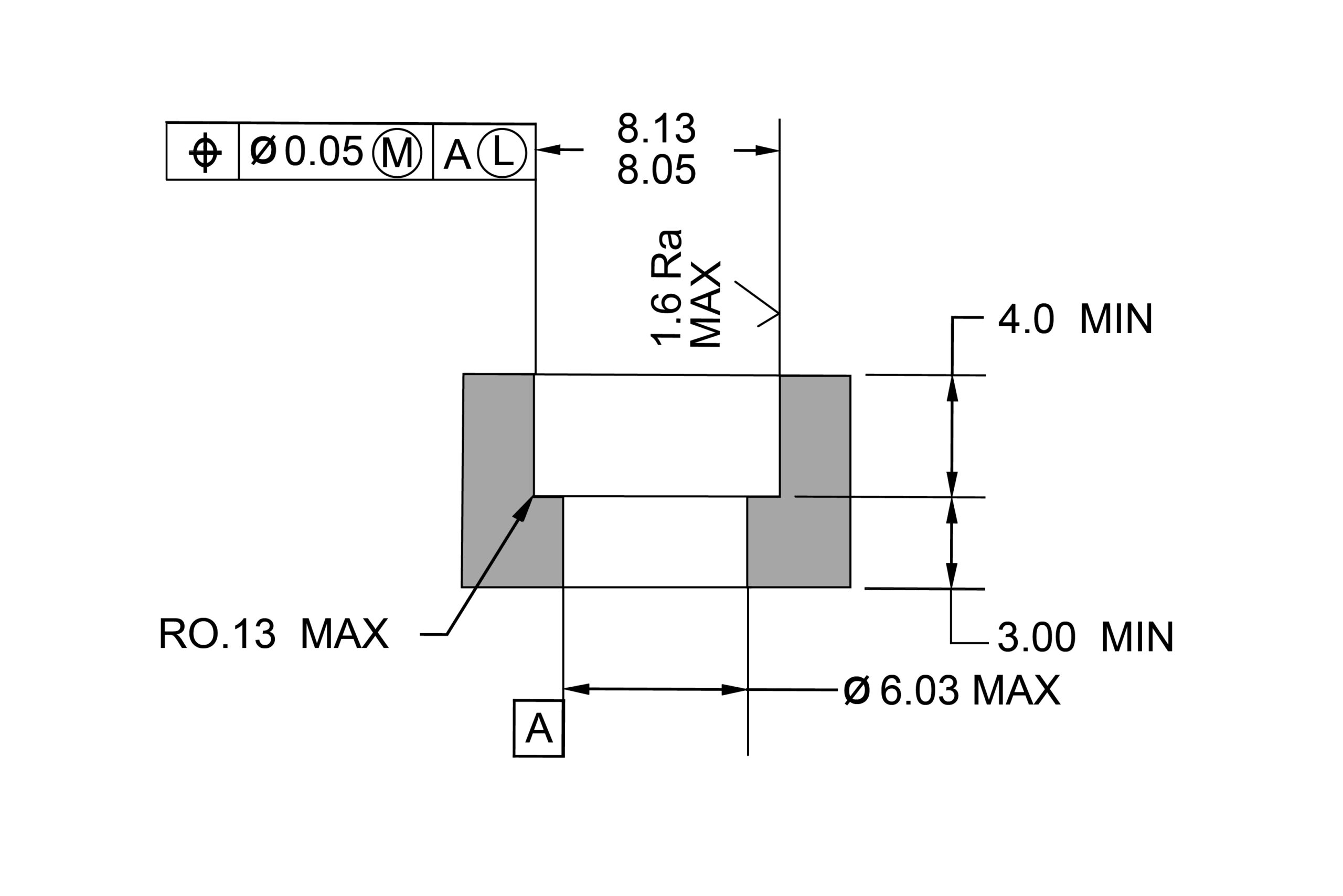

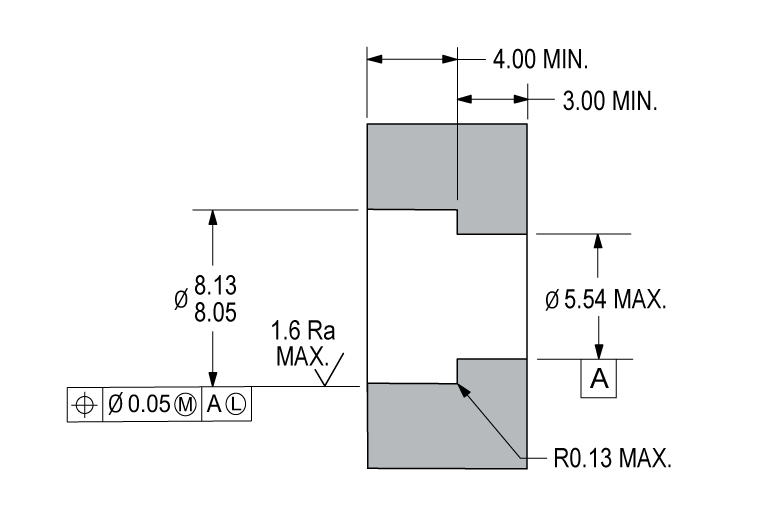

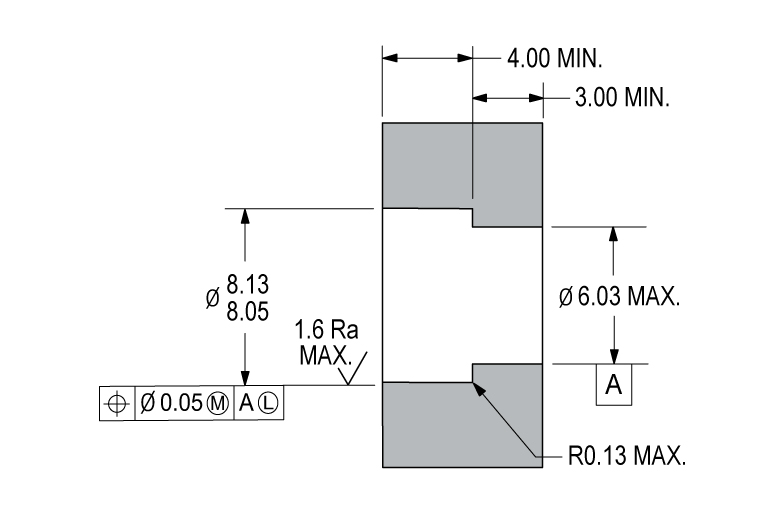

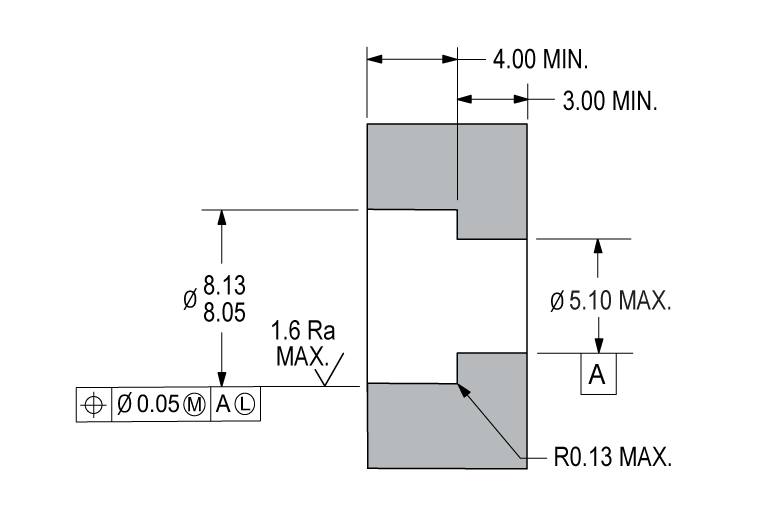

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER Micron Rating Lohm Rate Open Area ROB Number APPROXIMATE WEIGHT Installation Hole Drawing Number Request Information
SCRM7801040S 40 microns 115 Lohms 7.7 mm2 0.14 0.33 grams 1INST052839S Request
SCRM7801075S 75 microns 85 Lohms 7.3 mm2 0.29 0.36 grams 1INST089525S Request
SCRM7801125S 125 microns 105 Lohms 4.7 mm2 0.41 0.44 grams 1INST089527S Request
SCRM7801170S 170 microns 70 Lohms 5.4 mm2 0.96 0.46 grams 1INST089529S Request

Installation & Accessories

Replacement Parts & Accessories
PART NUMBER DESCRIPTION
SCRR8010001S 8 mm Screen Retainer
CCRT0900150S 8 mm Screen Retainer Installation Tool
