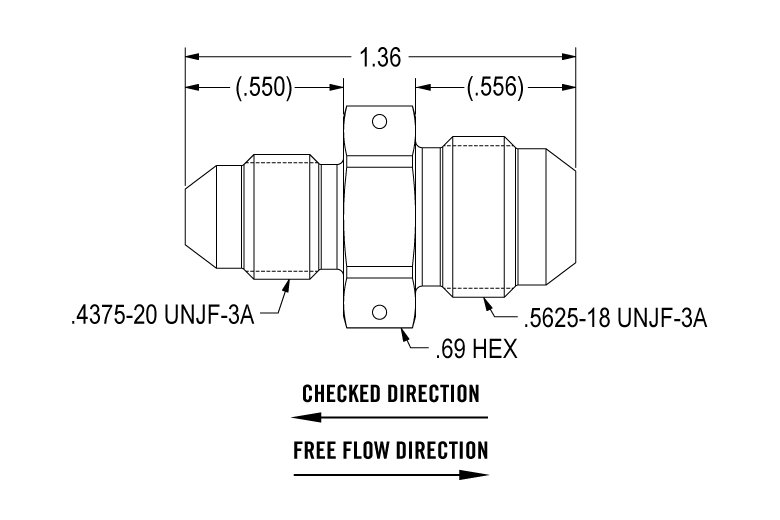

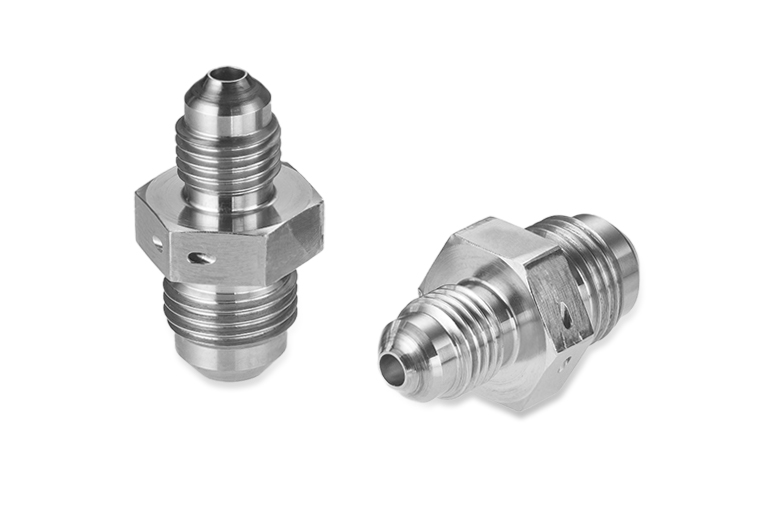

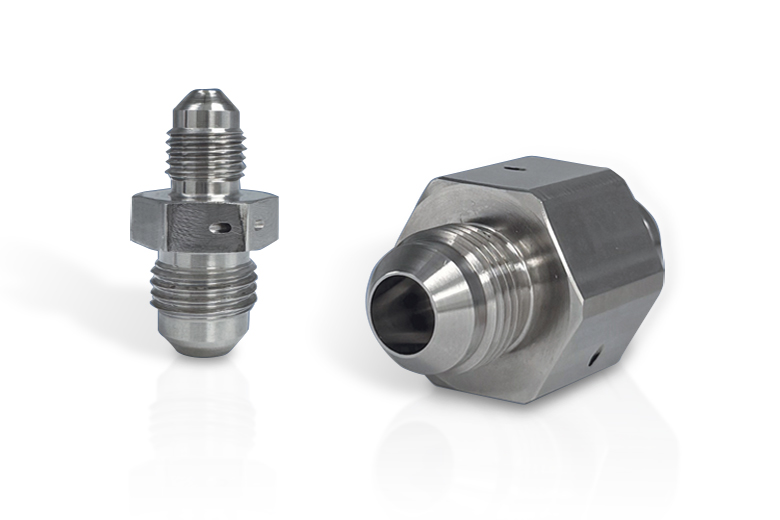

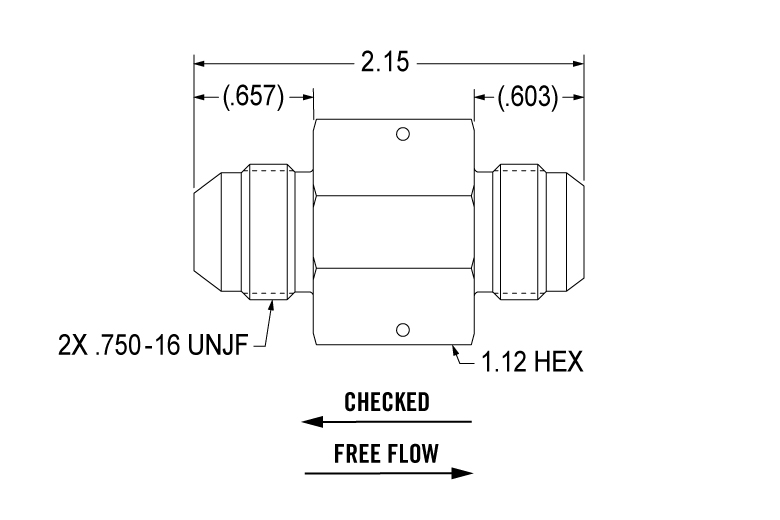

This check valve has been qualified at cryogenic temperatures in a bath of liquid nitrogen. The valve showed leakage results under 10 sccm of helium at -320° F. Built into a fitting with standard AS ends, this valve is easy to integrate into existing designs. While it is made from materials compatible with hydrogen and many other cryogenic fluids, the design lends itself to material changes for compatibility to your fluid.

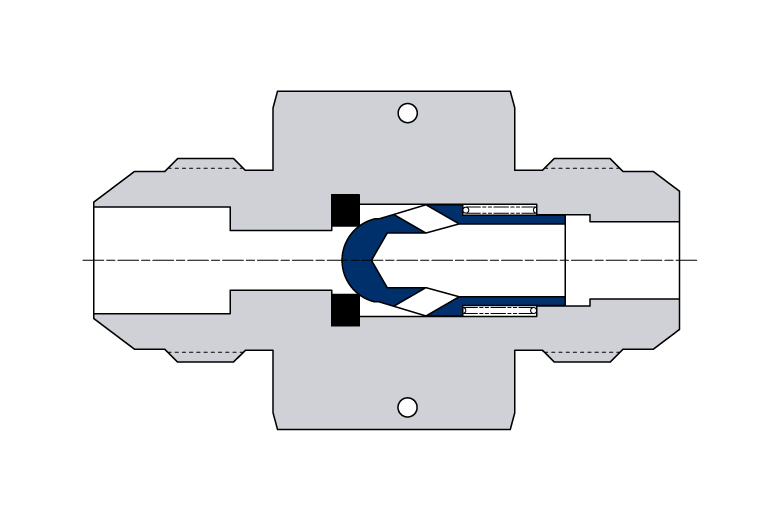

| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Fitting | Nitronic 50 | AMS 5764 |
| Spring Seat | 316 CRES | AMS 5648 |
| Poppet | A286 CRES | AMS 5737 |
| Spring | Cobalt Alloy | UNS R30003 |
| Seat | Polyimide | - |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

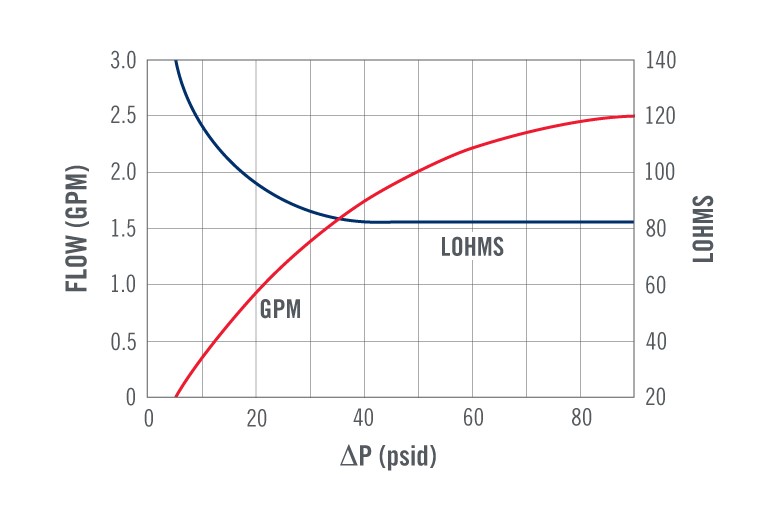

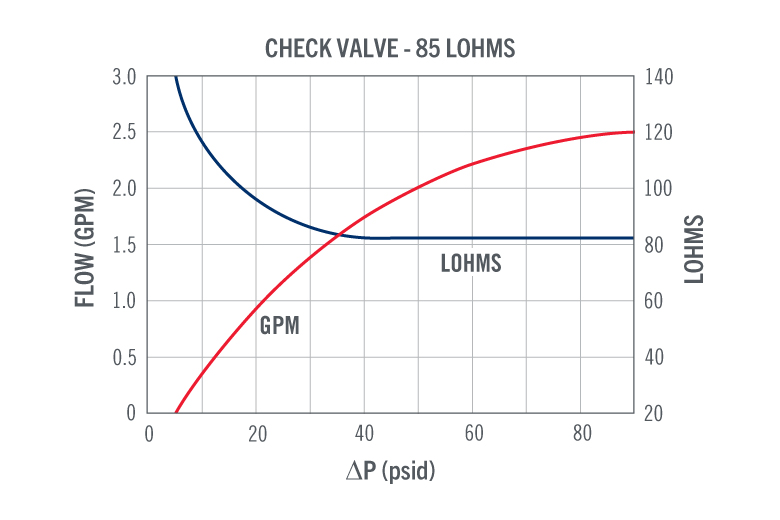

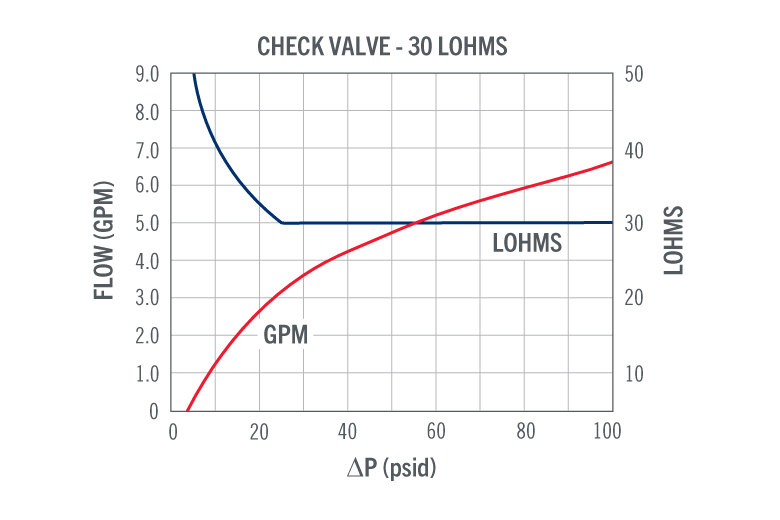

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
