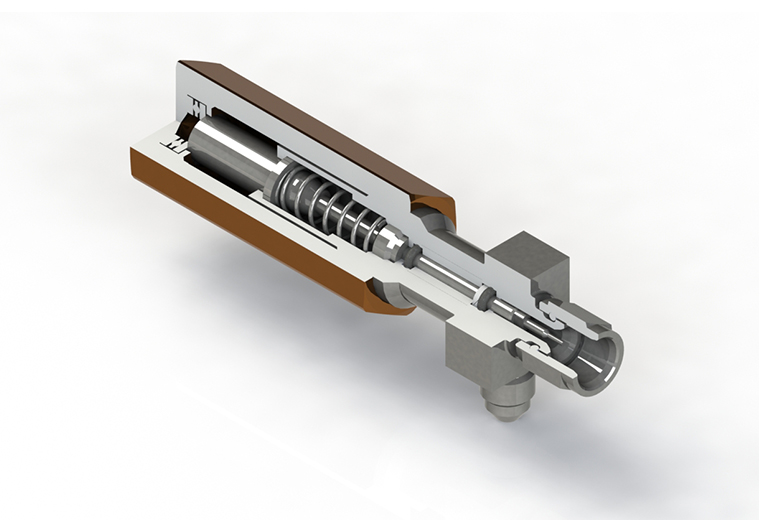

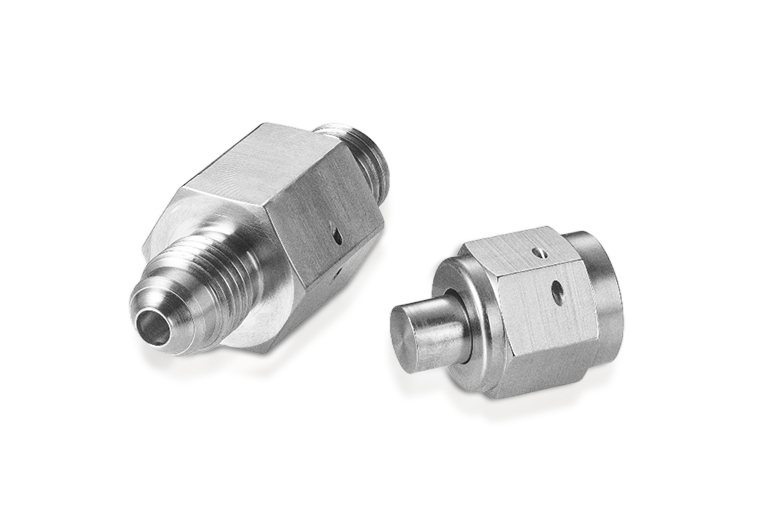

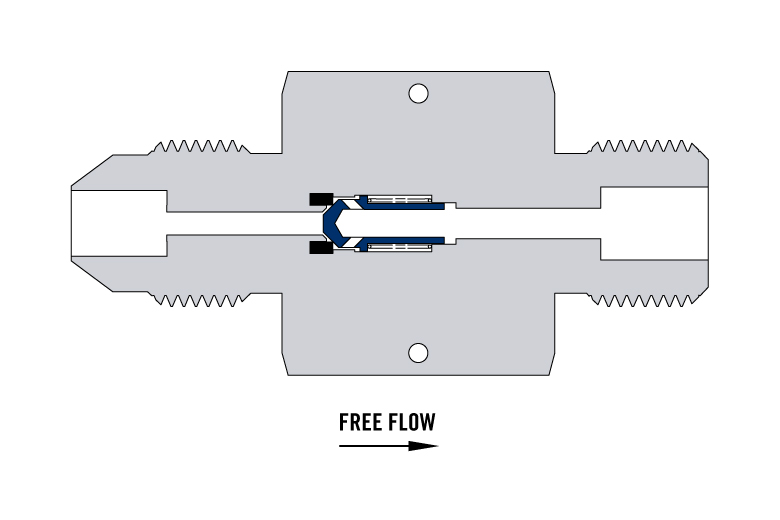

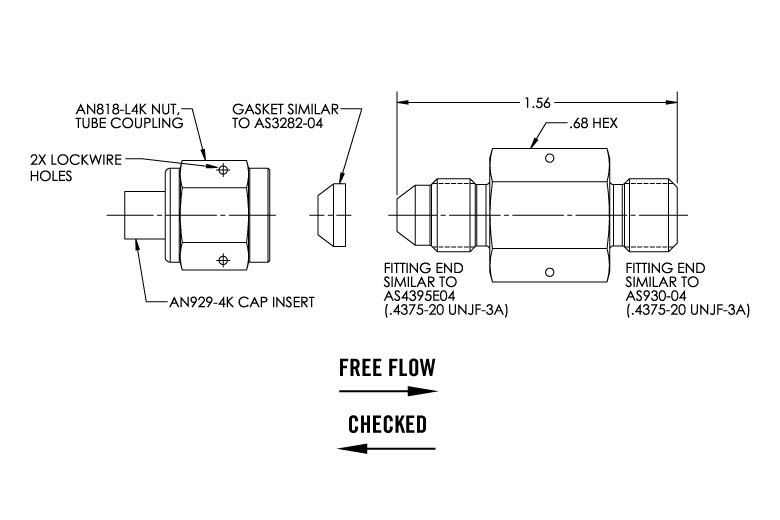

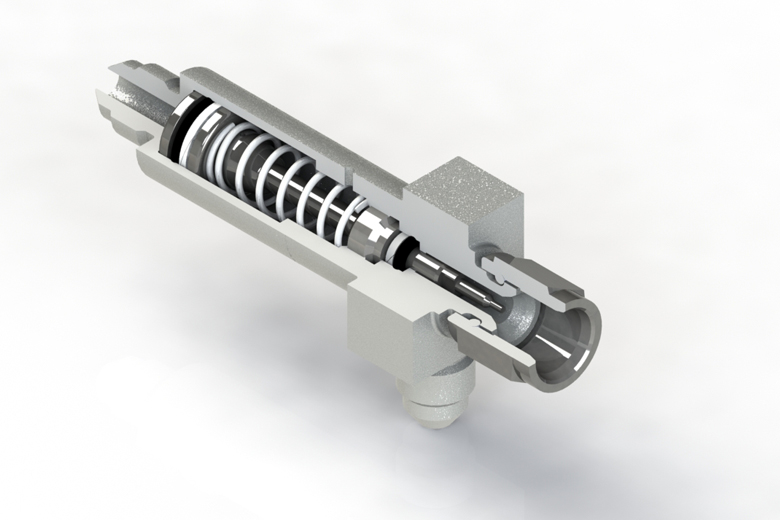

This valve is ideal for filling and draining applications. A separate pilot tool is used to open the valve prior to launch, allowing for an extremely small and lightweight in-flight configuration. Various material options are available for the wetted surfaces, making the valve compatible with a wide range of fluids. It is available with a standard boss mount thread for easy integration into your manifold.
| Characteristic | Specification |
|---|---|
| Cracking Pressure | 8 psid maximum |
| Free Flow | 500 Lohms maximum |
| Actuated Flow | 1250 Lohms maximum |
| Internal Leakage | 10-5 sccs of helium at 1000-4000 psid |
| External Leakage (Reference) | 10-7 sccs of helium at 1000-4000 psid with cap and gasket installed |
| Nominal System Pressure | 4000 psi |
| Fitting Proof Pressure | 6000 ps |
| Fluid Compatibility Table |
|||||
| CSLX0514900B | CSLX0515000B | CSLX0515100B | CSLX0517400B | CSLX0517500B | |
| Helium | X | X | X | X | X |
| Hydrocarbon Fuels | X | X | X | X | X |
| Isopropyl Alcohol | X | X | X | X | X |
| Nitrogen | X | X | X | X | X |
| Noble Gas (Ar, Kr, Xe) | X | X | X | X | X |
| Ammonia | X | ||||
| Hydrogen Peroxide | X | ||||
| Oxygen | X | ||||
| Hydrogen | X | ||||
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| AAJX0502200B | Mechanical Piloting Tool for CSLX0515100B |
| AAJX0502500B | Mechanical Piloting Tool for CSLX0515000B |
| AAJX0512000B | Mechanical Piloting Tool for CSLX0514900B |
| AAJX0512100B | Mechanical Piloting Tool for CSLX0517500B |
| AAJX0512200B | Mechanical Piloting Tool for CSLX0517400B |
| CSLX0509010B | Replacement Nut with Cap Insert for CSLX0514900B, CSLX0515000B, CSLX0515100B, and CSLX0517500B |
| CSLX0509410B | Replacement Gasket for CSLX0514900B, CSLX0515000B, CSLX0515100B, and CSLX0517500B |
| CSLX0509930B | Replacement Gasket for CSLX0517400B |
| CSLX0517410B | Replacement Nut with Cap Insert for CSLX0517400B |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
