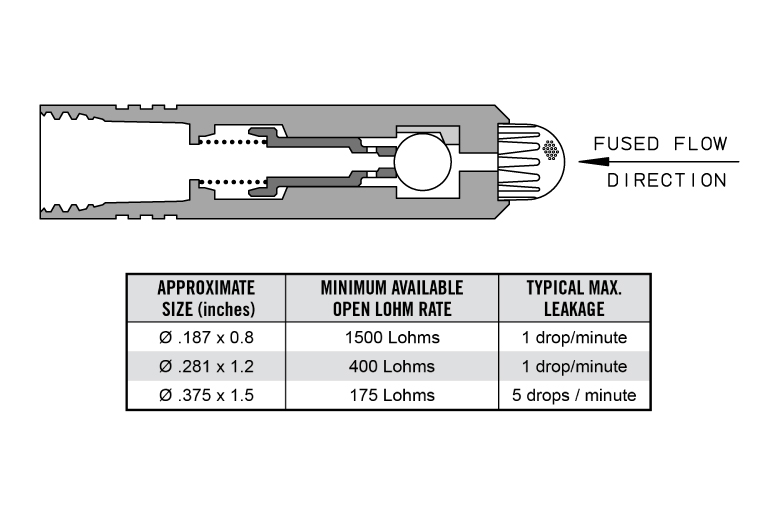

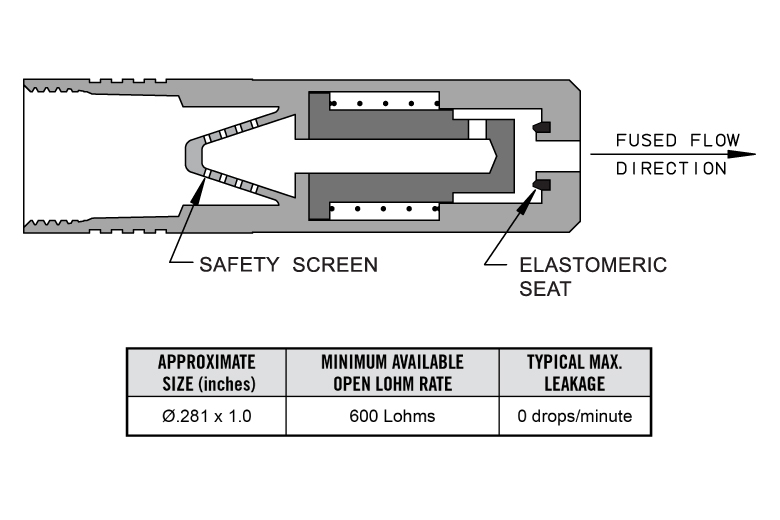

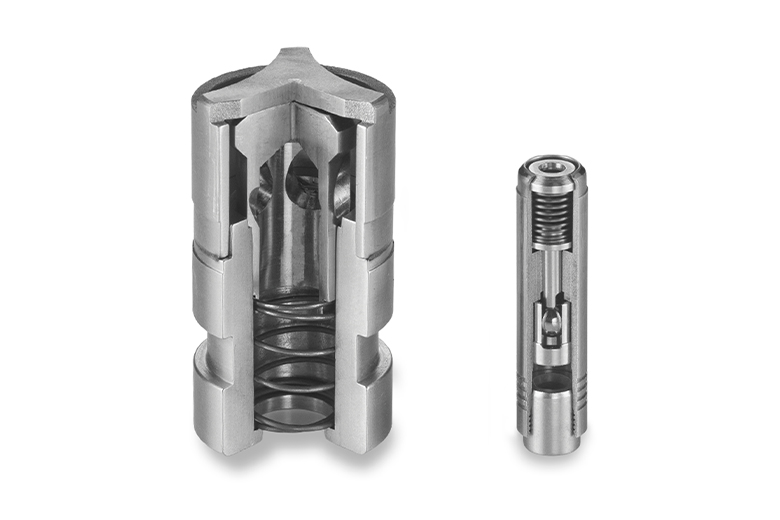

This unique valve is designed to function as a normally open check valve. As the flow rate increases beyond a specified value, a poppet shuts against the valve seat to stop the flow. Individually designed to meet custom requirements, the valve is available in 0.187 in, 0.281 in, 0.483 in, 0.798 in, and 1 in diameters. Shut-off flow rates can be tailored to meet application needs.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
