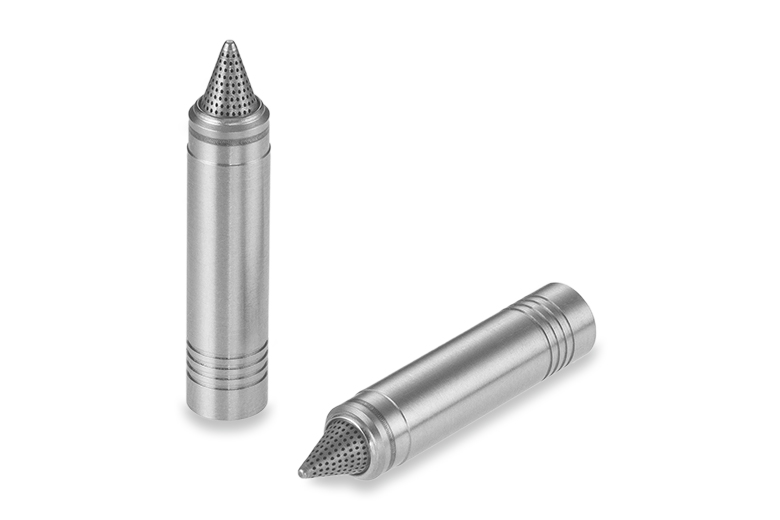

The Lee Company’s Dual Metering Flow Control Valves are two way restrictors that allow designers to specify a different metered flow rate in each direction. Configurations are available for system pressures up to 5000 psi. Each valve is 100% tested in both flow directions to ensure reliable, consistent performance. Featuring an all-stainless steel construction for durability and long life, models are available in 0.187 inch and 0.281 inch diameters.
| Characteristic | Specification |
|---|---|
| Nominal System Pressure | up to 5000 psi |
| Metered Flow Rate 187 Diameter | 500 - 20,000 Lohms |
| Metered Flow Rate 281 Diameter | 250 - 10,000 Lohms |
| Nominal Weight 187 Diameter | 2.5 grams |
| Nominal Weight 281 Diameter | 6 grams |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Shuttle Plate | 15-5PH CRES | AMS 5659 |
| Orifice Plate | 15-5PH CRES | AMS 5659 |
| Pin | 15-5PH CRES | AMS 5659 |
| Body | 187 - 304 CRES 281 - 15-5PH CRES |
187 - AMS 5639 281 - AMS 5659 |
| Spacer | 187 - 13-8 MO 281 - 15-5PH CRES |
187 - AMS 5629 281 - AMS 5659 |
| Screens | 187 - 15-5PH CRES 281 - 440C CRES |
187 - AMS 5659 281 - AMS 5630 |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
