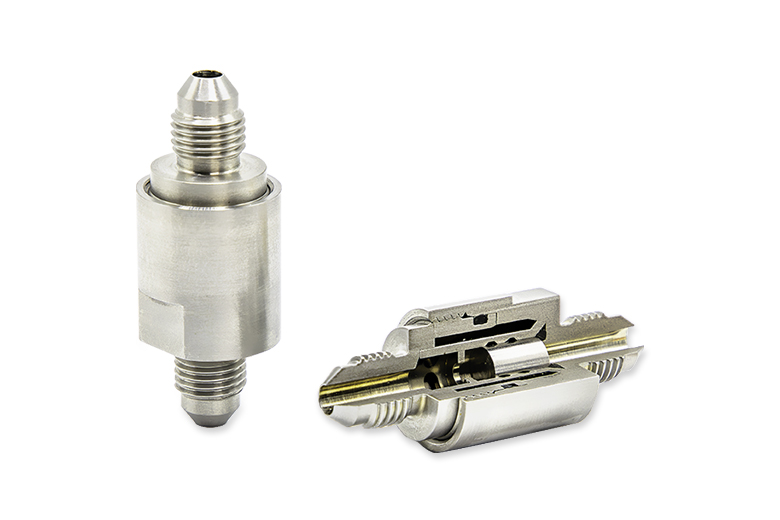

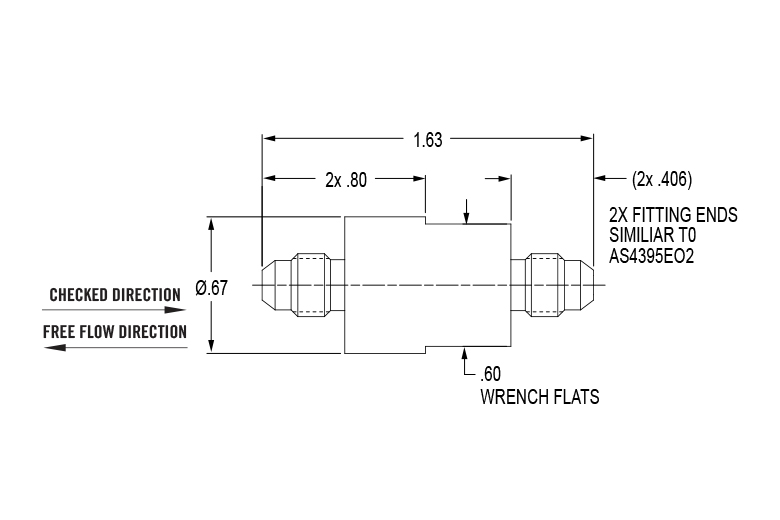

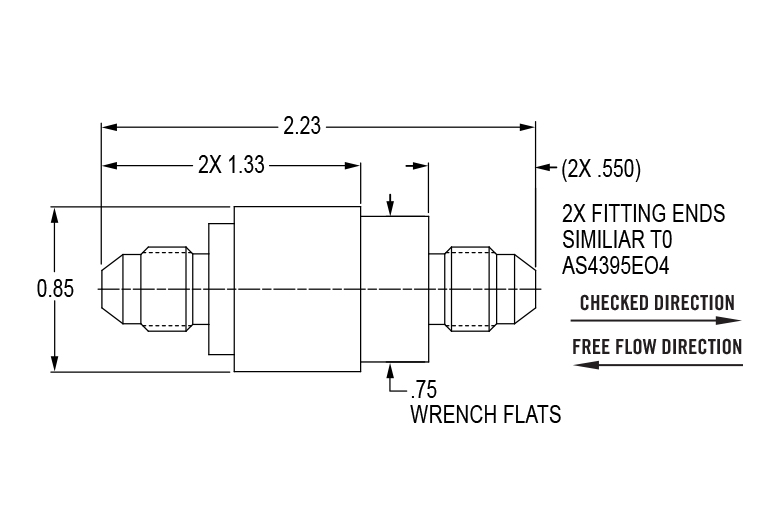

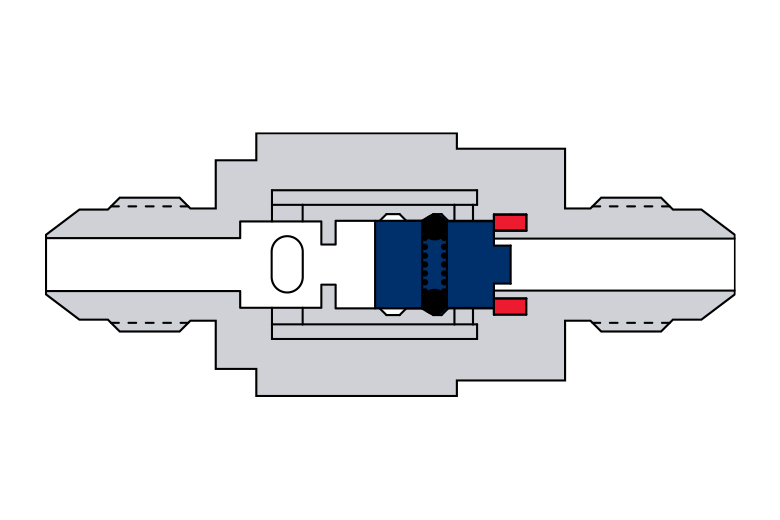

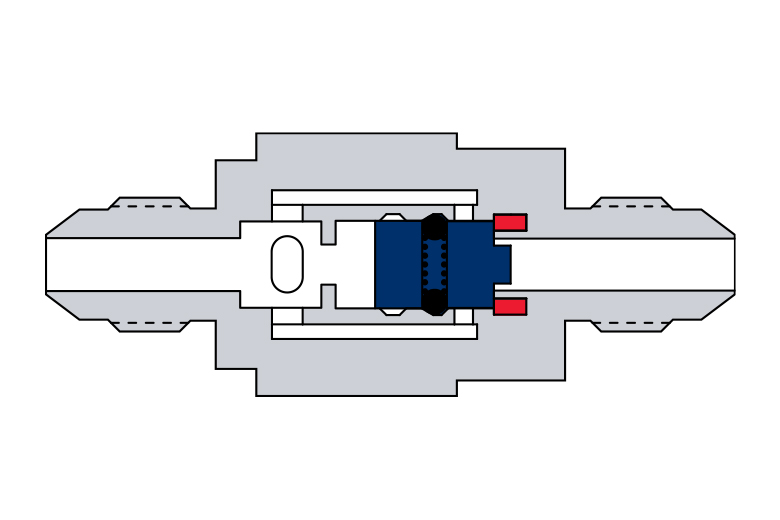

Designed as a passive alternative to pyrotechnic valves, this one-way latching valve features stainless steel construction, tungsten carbide balls, in-line mount assembly, and an elastomeric seal for tight leakage. It primarily functions as a fuel-flow prevention device in turbojet engines and is also used in engine bleed-air systems, launch vehicles, satellites, and spacecraft for flow prevention, venting, and actuation. The valve supports hydraulic and pneumatic systems, offers a flow range of 65–365 Lohms, includes AS -4 to -4 fitting end connections, and is 100% functionally tested.
| Characteristic | Specification |
|---|---|
| Latching Pressures | up to 120 PSID |

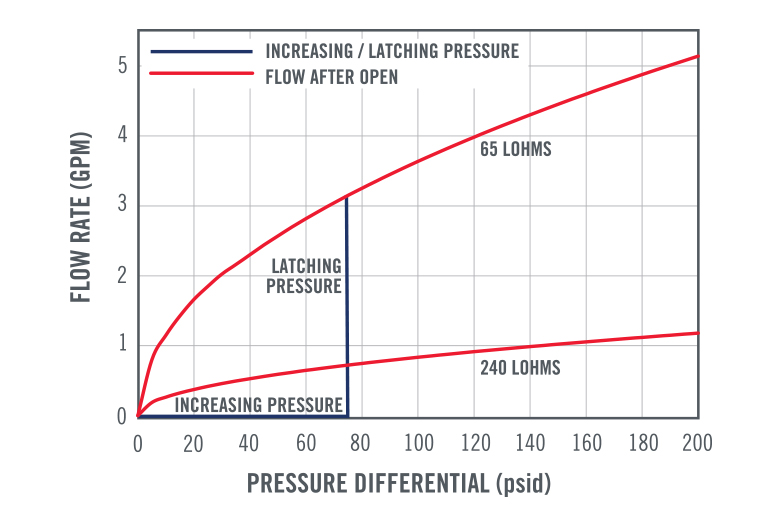

| Lohm Rates | 65 & 240 |
| Leakage | 1 x 10-5 SCCS Maximum on Ghe |
| Nominal Weight | Line Mount Configuration: 80 grams |
| Temperature Range | -65 F to 275 F |
| Test Fluid | MIL-PRF-7024 |
| Part | Material | Specification |
|---|---|---|
| Fitting | 304 CRES | AMS 5639 |
| Body | 15-5PH CRES | AMS 5659 |
| Poppet | 15-5PH CRES | AMS 5659 |
| Spring | 17-7PH | AMS 5678 |
| Balls | Tungsten carbide | - |
| Internal Seal | Fluorocarbon | - |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
