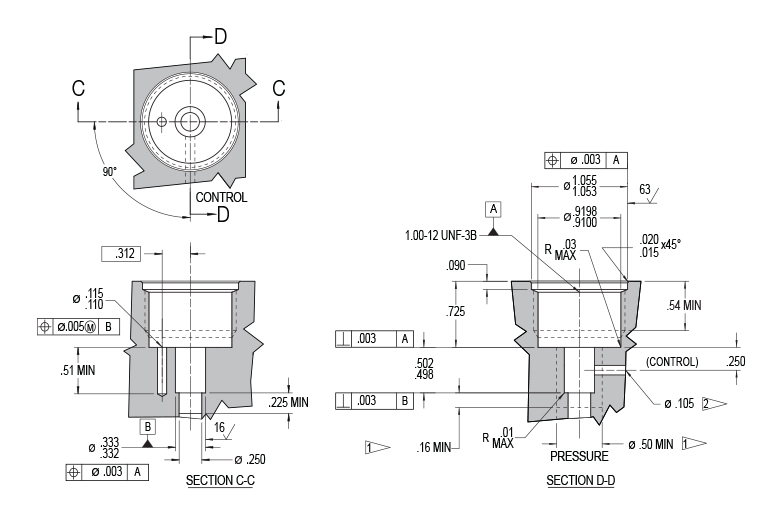

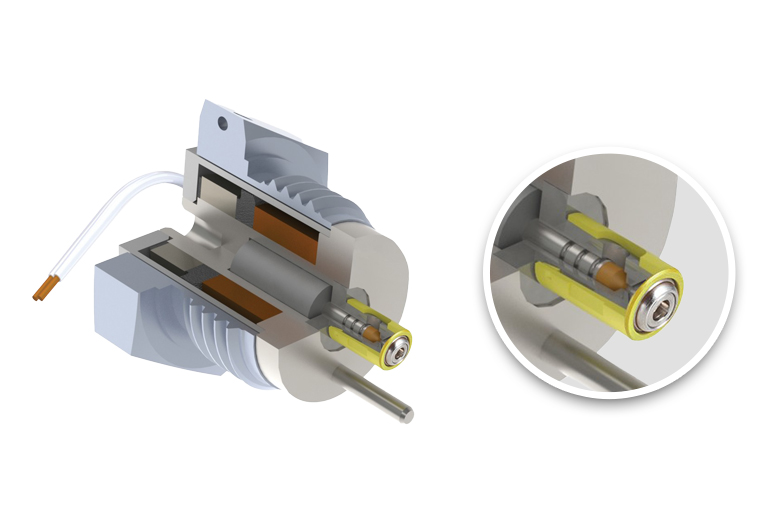

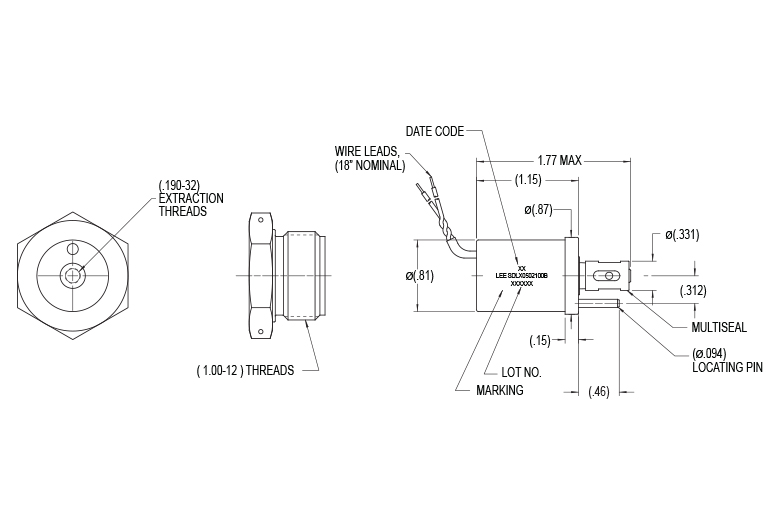

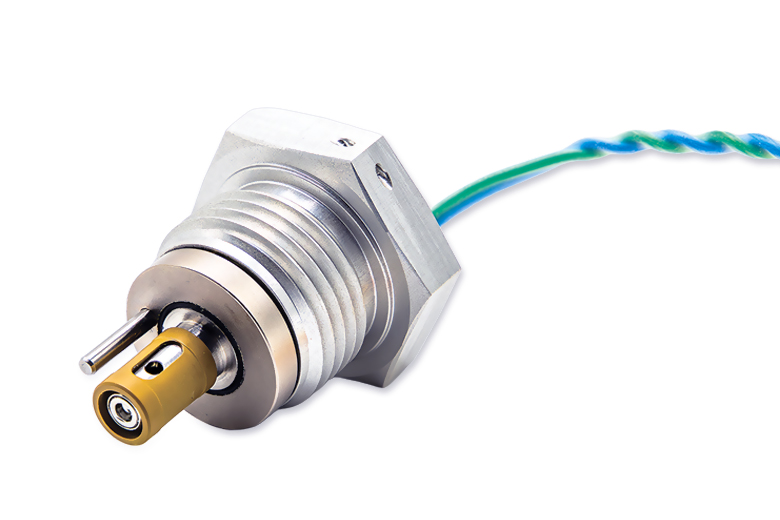

The Pneumatic Latching Solenoid Valve offers an optimal solution for applications where low power consumption, tight leakage control, and a compact package are critical. The valve’s details are derived from our pneumatic isolation solenoid valve, which is capable of achieving leakage rates better than 1×10⁻⁶ sccs on helium. This design incorporates a latching feature that uses permanent magnets in the coil, allowing the valve to remain in its current state when de energized or during a power loss. At 3.2 ounces, this valve delivers reliable performance in the smallest package size. The design draws upon on MultiSeal® technology to radically simplify port layout and provide significant space and weight savings. This valve can be used as a replacement for pyrovalves.
| Characteristic | Specification |
|---|---|
| Temperature | -65 F to 200F |
| Leakage | 0 bubbles of Nirogen in a 1 min test |
| Operating Voltage | 28 Vdc |
| Current Drain | 1.12 amps at 28 Vdc at 70 F |
| Recommended "On" Time | 0.05 - 2 seconds |
| Resistance | 25 Ohms +/- 10 % at 70 F |
| Part | Material |
|---|---|
| Magnetic Path | 22-13-5 CRES, ferritic stainless steel, samarium-cobalt magnet, PEEK, and copper wire |
| Flow Path | Stainless steel and polyimide |
| Multi-Seal® | Polyamide-Imide |
| Retainer | Aluminum |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| SDBB3320108A | Replacement MultiSeal for SDLX0502100B |
| CUTA3320121A | Test Fixture for SDLX0502100B |
| CUTA3320321B | MultiSeal Extraction Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
