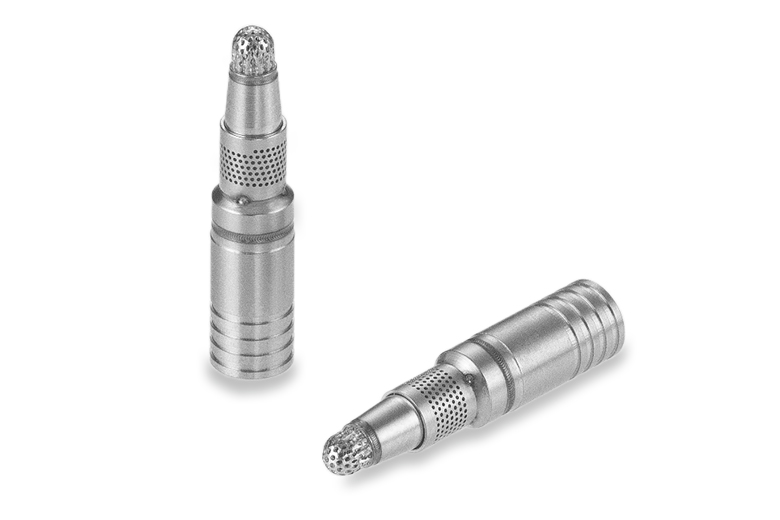

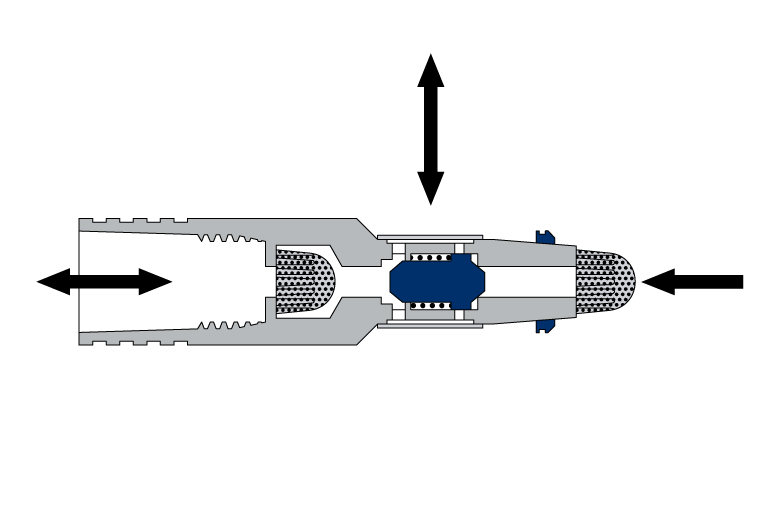

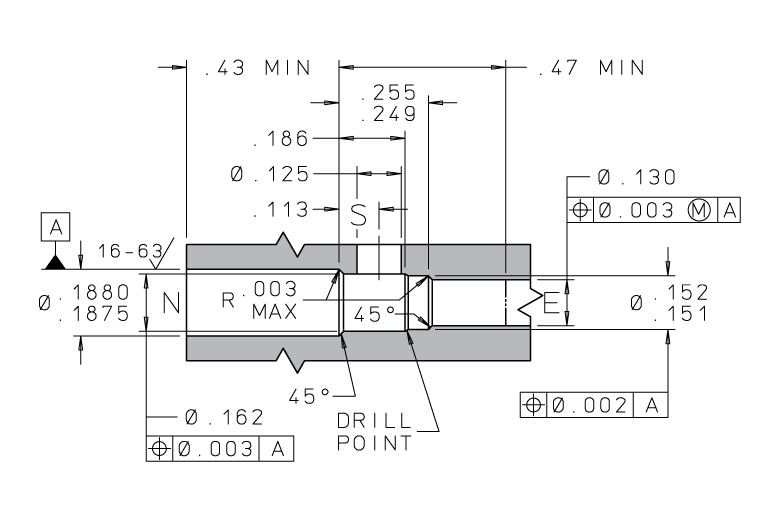

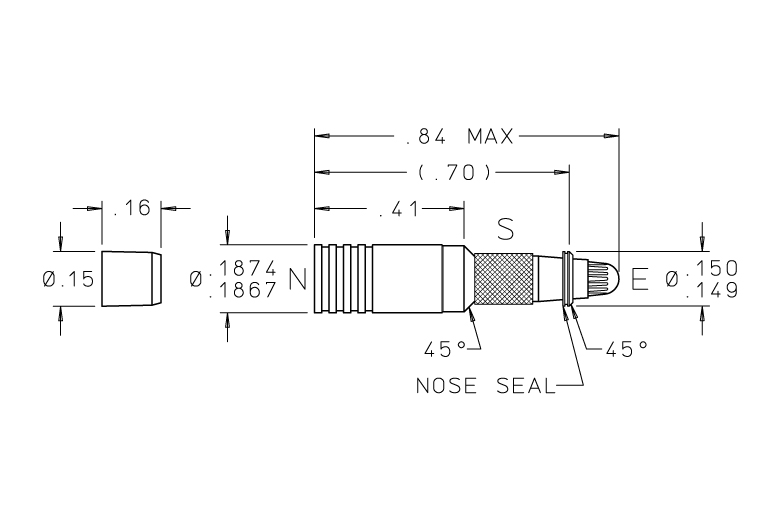

The poppet in this miniature shuttle valve is biased so that the emergency port (E) is normally closed and the normal (N) and service (S) ports are connected. It is ideal for applications with flow rates up to 1.3 GPM. Integral safety screens are included for added protection against rogue contamination or debris.
| Characteristic | Specification |
|---|---|
| Normal Flow Rate (N to S or S to N) | 700 Lohms max. |
| Emergency Flow Rate (E to S) | 700 Lohms max. |
| Maximum Rated Flow | 1.3 GPM |
| Shuttling Pressure | 15 psid (min.) 40 psid (max.) |
| Maximum Leakage: (N to E or E to N at 4000 psid) | 5 Drops / Hour after 2 Minute wait |
| Screen Hole Size | 0.008 inches Nominal |
| Nominal System Pressure | up to 4000 psi |
| Nominal Weight | 1.5 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |

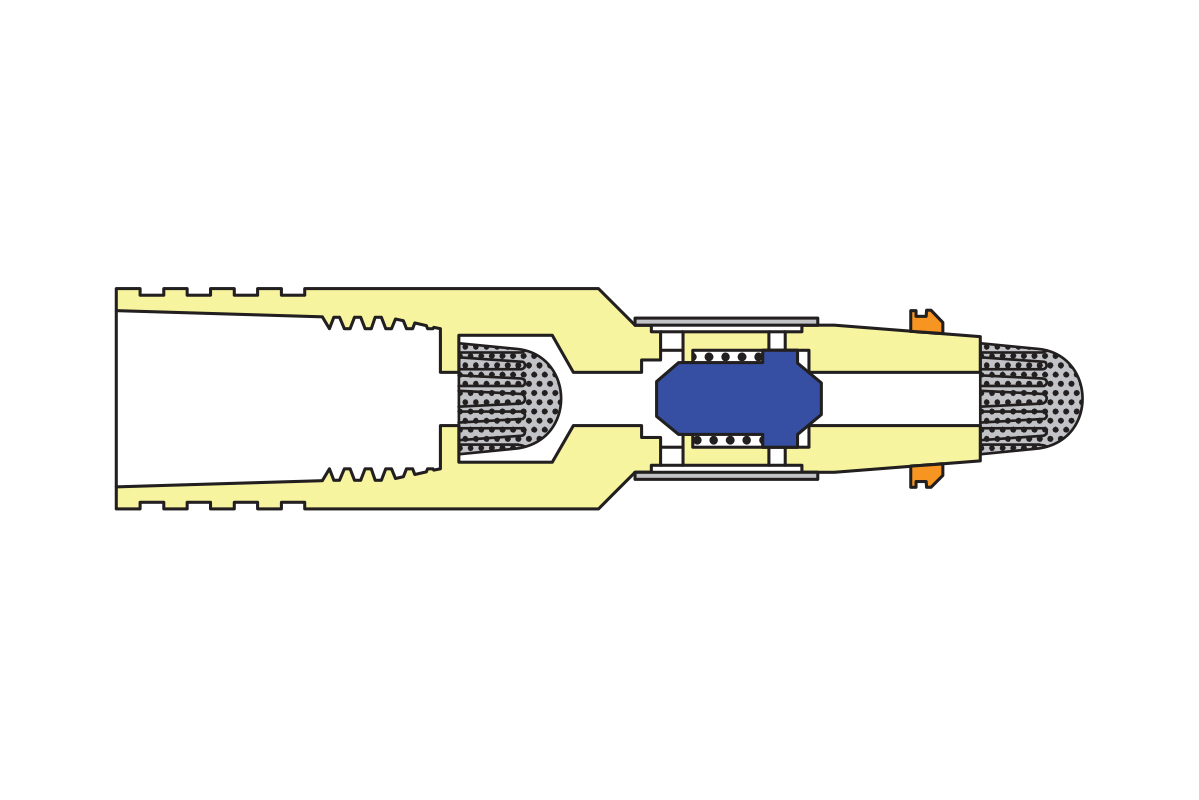

| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body – Rear | 304L CRES | AMS 5647 |
| Body – Front | 15-5PH CRES | AMS 5659 |
| Pin | 17-4PH CRES | AMS 5643 |
| Spring | 17-7PH CRES | AMS 5678 |
| Poppet | 440C CRES | AMS 5630 |
| Nose Seal | 6061-T6 Al | AMS 4117 |
| Barrel Screen | 15-5PH CRES | AMS 5659 |
| Screens | 304L CRES | QQ-S-766 |
| Base Washers | 304L CRES | QQ-S-766 |
| Braze | - | AMS 4774 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA1870137C | Installation / Extraction Tool Set |
| CKFA1870005A | Replacement Pin |
| SVBA1870009B | Replacement Nose Seal |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
