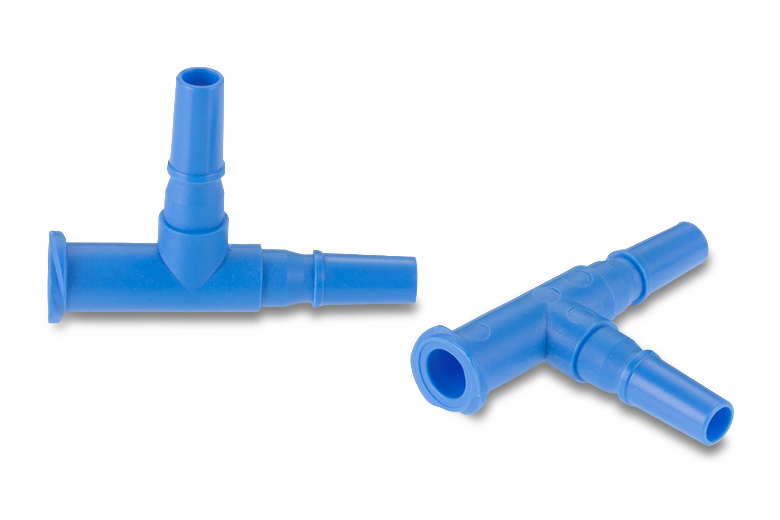

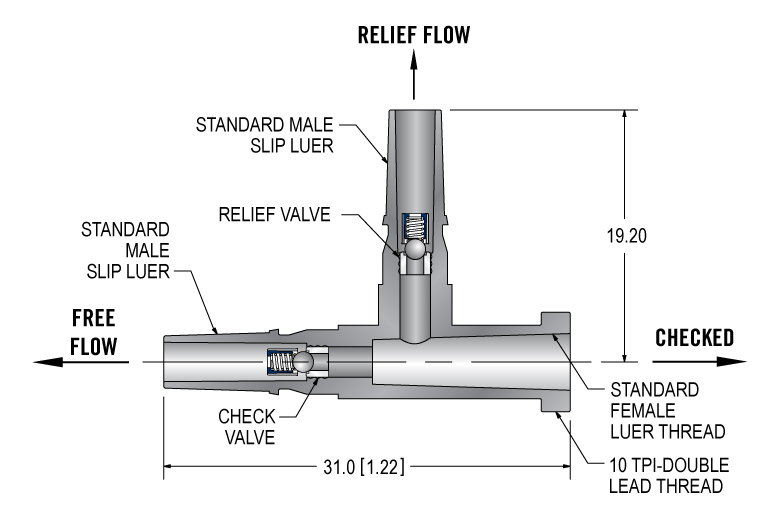

This product is a Luer Tee fitting with a 2.5 mm pressure relief valve in the branch to provide protection from overpressurization, and a 2.5 mm check valve in the downstream branch to prevent backflow for syringe-driven systems. The check valve has a cracking pressure of 4 kPa (0.6 psid), while the pressure relief valve ranges from 100 to 300 kPa (14.5 to 43.5 psid). Both valves feature all stainless steel construction to ensure for compatibility with a wide range of fluids. The fitting is made from medical grade polypropylene.
| Characteristic | Specification |
|---|---|
| Check Valve Full Open Lohm Rate | 750 Lohms |
| Check Valve Leakage | 10 SCCM (max.) at 500 kPa (72.5 psid) on Air |
| Relief Valve Full Open Lohm Rate | 750 Lohms |
| Relief Valve Leakage | 10 SCCM (max.) at 500 kPa (72.5 psid) on Air |
| Maximum Working Pressure | Dependent on Housing Material, Configuration, and Operating Conditions |
| COMPONENT | MATERIAL |
|---|---|
| Fitting | Polypropylene - Blue |
| Check & Relief Valve Bodies | 303 Stainless Steel |
| Check & Relief Ball Stops | 303 Stainless Steel |
| Check & Relief Springs | 302 Stainless Steel |
| Check & Relief Balls | 440C Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
