This thread-retained plug is designed to apply axial force only on the installation hole, making it ideal for sealing holes with thin walls. This NACE-compliant solution uses a metal-to-metal seal for high pressure applications and incorporates an O-ring for venting or charging. Pressure can be vented out of a side port to remove air from a hydraulic system or safely release trapped gas. A.F.O. plugs are both removable and reusable, providing easy access to sealed passageways.
| | Stainless Steel | AISI 8630 | Aluminum |
|---|---|---|---|
| Open | 1.5 | 1.5 | 1.5 |
| Closed | 22.5 | 22.5 | 20 |
| PART | MATERIAL |
|---|---|
| Threaded Body | MP35N |
| Nose | MP35N |
| O-Ring | FKM |

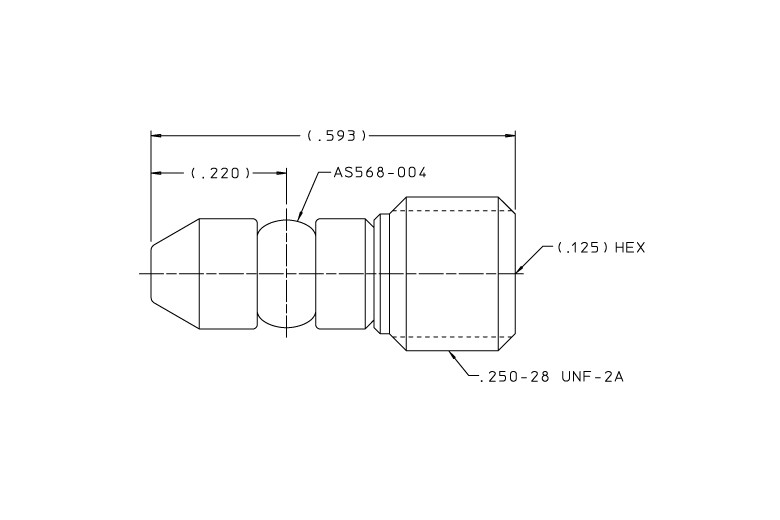

For dimensions, please refer to the Part Numbers & Specifications tab.
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Coining Tool Part Number | Required Tool Rotation | (Ref) Coining Torque (Aluminum Housing) | Installation Torque (Aluminum Housing) | (Ref) Coining Torque (Steel/AISI 8630 Housing) | Installation Torque (Steel/AISI 8630 Housing) |
|---|---|---|---|---|---|
| CUTA2500263A | 175° +/- 35° | 30 in-lbs | 25 in-lbs | 71 in-lbs | 55 in-lbs |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
