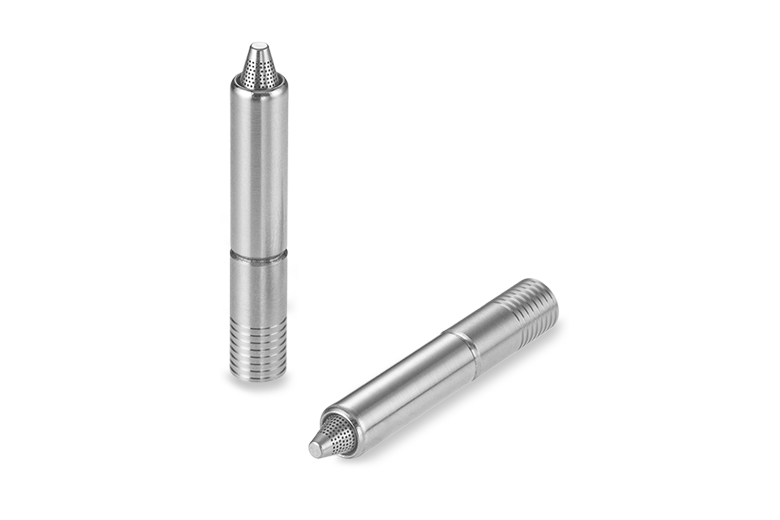

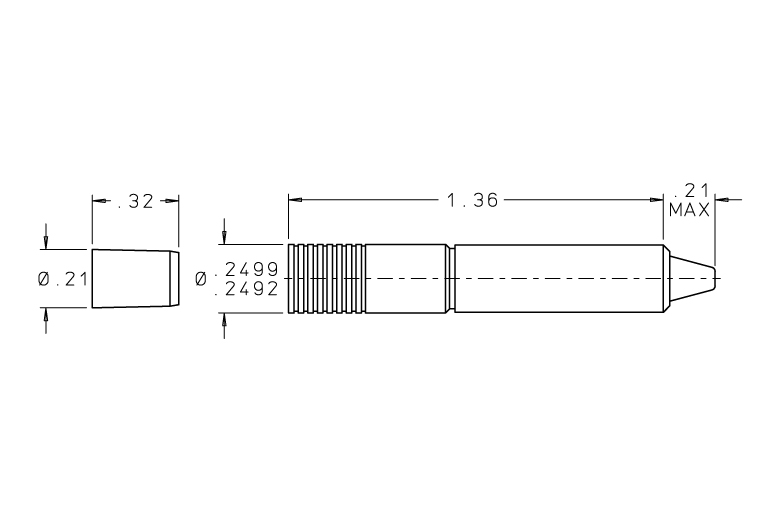

This NACE compliant, pressure-compensating flow control valve is 0.250 inches in diameter and 1.57 inches in length. Designed to survive the harshest environments, this valve provides a constant flow rate over a wide range of pressure differentials. Regulated flow rates are available from 0.01 to 0.1 GPM.
| Characteristic | Specification |
|---|---|
| Regulated Flow Tolerance from Minimum – 5000 psid | ±15% |
| Regulated Flow Tolerance from 5001-8000 psid | ±20% |
| Nominal System Pressure | up to 8000 psi |
| Nominal Weight | 6 grams |
| Nominal Screen Hole Size | 0.008 inches |
| PART | MATERIAL |
|---|---|
| Body | MP35N |
| Loading Washer | MP35N |
| Nose | MP35N |
| Optional Shims | MP35N |
| Pin | MP35N |
| Piston | MP35N |
| Screens | MP35N |
| Spacers | MP35N |
| Spring Seat | MP35N |
| Spring | MP35N or Elgiloy® |
| Metering Disc | 316L Cres or MP35N |
| Shim | 316L Cres or MP35N |
| Internal Seal | PTFE with MP35N or Elgiloy Spring |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA250116C | Installation / Extraction Tool Set |
| FLFX0512880B | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
