Plugs

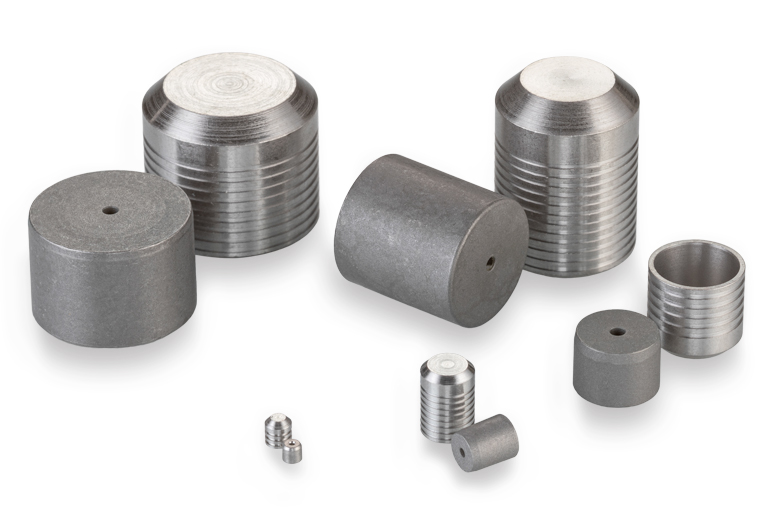

250 Stainless Steel Lee Plug®

This member of our classic Lee Plug family is ideal for installation into stainless steel manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 0.093 to 0.656 inches.

Key Product Facts
  • Plug Diameter:0.250 inches
  • Max. Sealable Passageway Diameter:0.218 inches
  • Proof Pressure:25,000 psi
  • Plug Material:Stainless Steel
  • Housing Material:Stainless Steel, or Titanium

Product Information

General Performance
 Class 1 Class 2 Class 3
Short 12 14 16
Long 16 22 25
Proof Pressure (psi x 1000)
Materials
PART MATERIAL SPECIFICATION FINISH
Pin 416 CRES QQ-S-763C, Rc 20-34 Passivated & Wax
Plug 416 CRES QQ-S-763C, Rc 20-34 Passivated
Electrical Operation

For dimensions, please refer to the Part Numbers & Specifications tab.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Image Specifications
Dimensional View

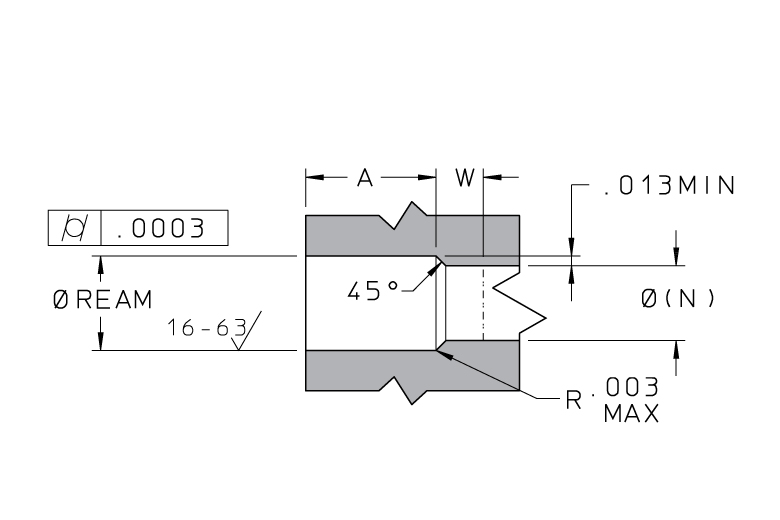

Installation Hole Details
Part Numbers & Specifications
Part Number Size D Max. D Min. C Nom. M Nom. K Nom. L Nom. Weight (g) A Min. N Dia. Ref. W Min. Ream Dia.
Class 1
Ream Dia.
Class 2
Ream Dia.
Class 3
Request Information
PLGA2500020A Short 0.25 0.2491 0.225 0.193 0.212 0.16 1.3 0.212 0.218 0.063 0.25 - 0.2525 0.25 - 0.2515 0.25 - 0.2505 Request
PLGA2501020A Long 0.25 0.2491 0.365 0.333 0.212 0.265 2.2 0.352 0.218 0.063 0.25 - 0.2525 0.25 - 0.2515 0.25 - 0.2505 Request
All dimensions are in inches. This information is for reference only.

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA2500203A Installation Tool Set
CUTA2500103B Extraction Tool Set
CUTA2501103A Gauge
PLGA2600020A Short Oversize Lee Plug
PLGA2601020A Long Oversize Lee Plug
