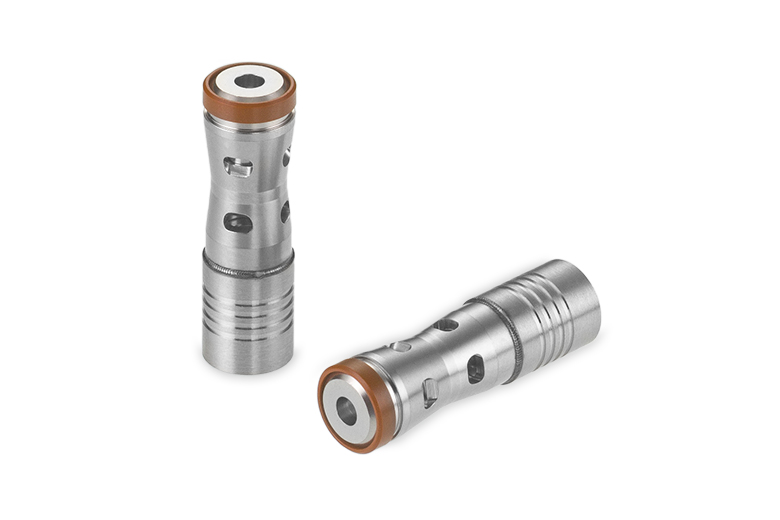

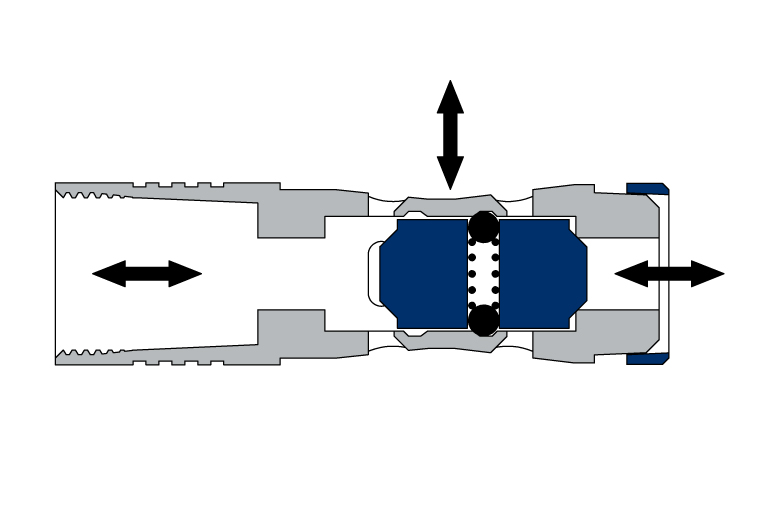

This miniature shuttle valve incorporates a detent mechanism that can latch the poppet at either of the inlet ports, making it helpful when bi-directional flow is needed in either poppet position. It is ideal for applications with flow rates up to 7.2 GPM.
| Characteristic | Specification |
|---|---|
| Normal Flow Rate (A to C or B to C) | 130 Lohms max. |
| Shuttling Pressure | 25 psid (min.) 100 psid (max.) |
| Maximum Leakage: (A to B or B to A at 1000-4000 psid) | 1 Drop / Hour after 2 Minute wait |
| Maximum Leakage: (A to B or B to A at 5 psid) | 1 Drop / Minute after 2 Minute wait |
| Nominal System Pressure | up to 4000 psi |
| Nominal Weight | 4.0 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body – Rear | 15-5PH CRES | AMS 5659 |
| Body – Front | 13-8 MO | AMS 5629 |
| Pin | 15-5PH CRES | AMS 5659 |
| Spring | 17-7PH CRES | AMS 5678 |
| Poppet | 440C CRES | AMS 5630 |
| Compression Seal | Polyimide | - |
| Balls | 440C CRES | AMS 5630 |

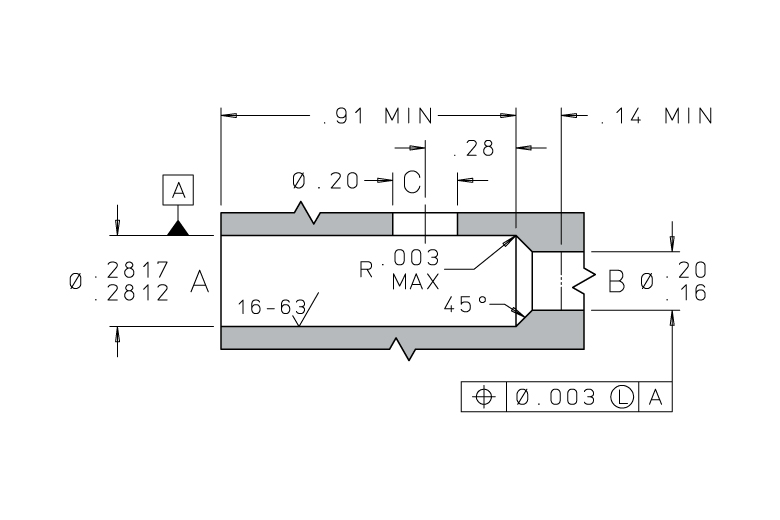

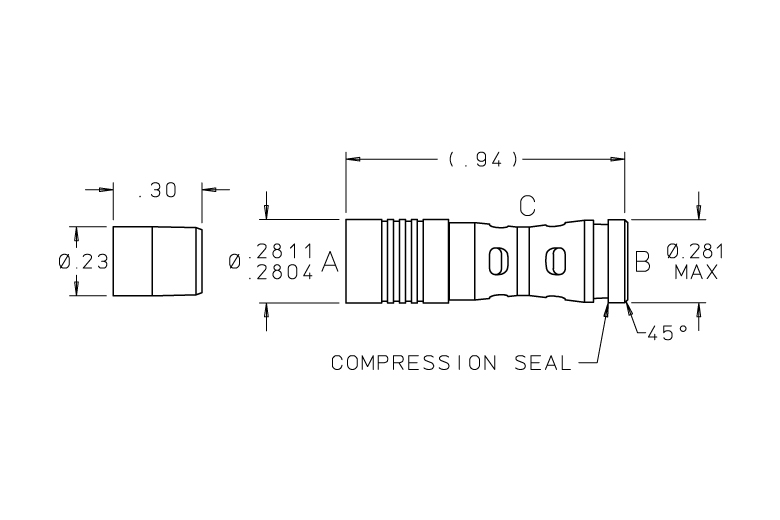

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA2810114C | Installation / Extraction Tool Set |
| SHBA2810003A | Replacement Pin |
| SVDA2810009A | Replacement Nose Seal |
