Shuttle Valves

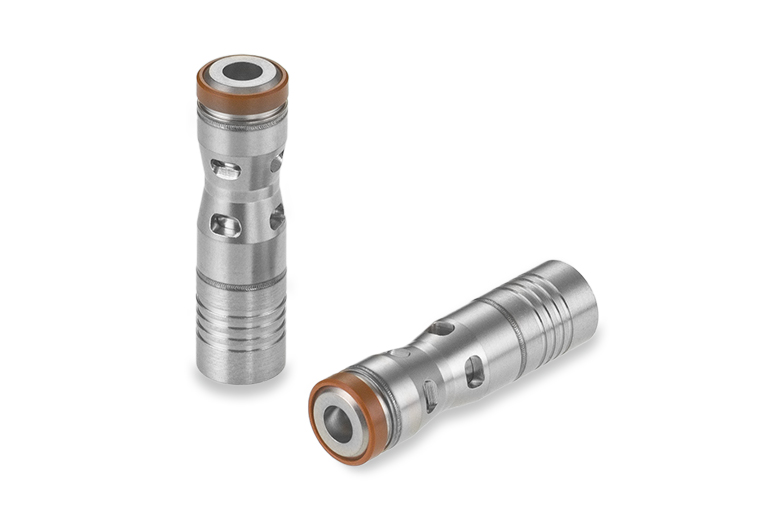

281 Zero-Leak Detented Shuttle Valve

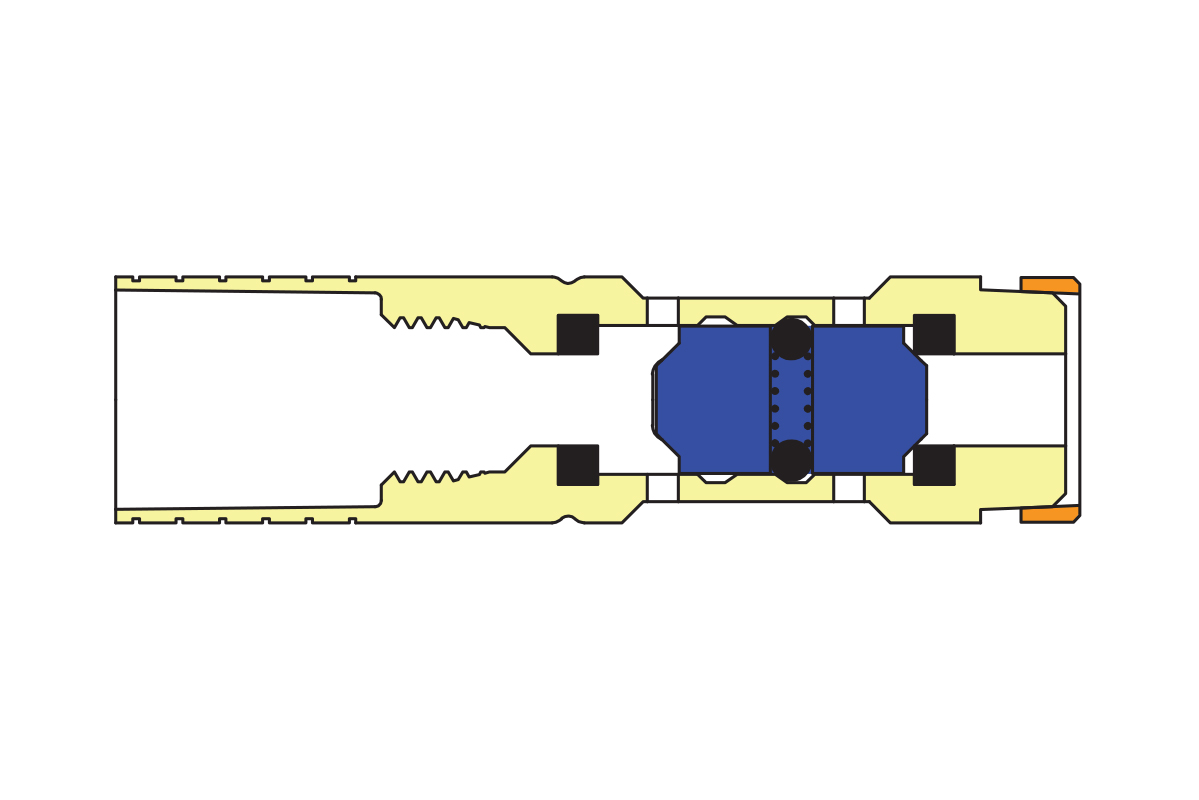

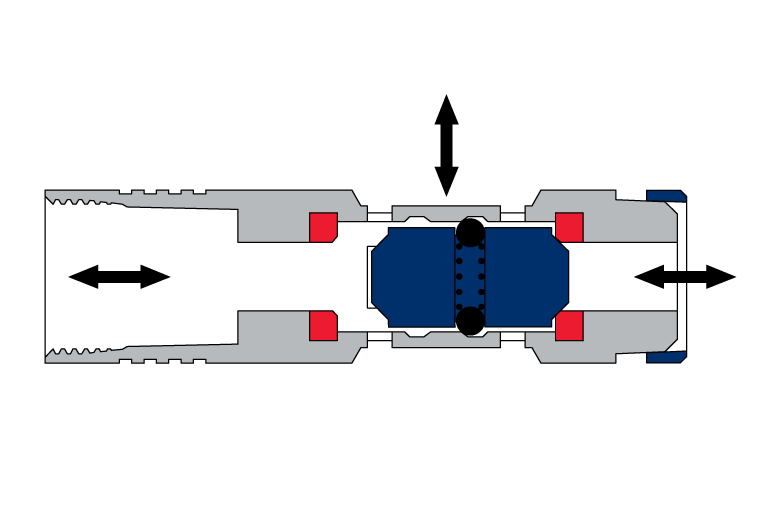

This miniature shuttle valve incorporates a polyimide valve seat to create a leak tight seal when tested on nitrogen. The valve is only .281” in diameter and 1.02” in length. This shuttle valve incorporates a detent mechanism that can latch the poppet at either of the inlet ports. This is beneficial when bi-direction flow is needed in either poppet position. It is ideal for applications with flow rates up to 7.2 gpm. Rated for operating pressures up to 4,000 psid.

Key Product Facts
  • Weighs only 4 grams
  • Flow Rate: 1.2 GPM minimum at 50 psid
  • Zero Bubbles per Minute Leakage on Nitrogen
Part Numbers
SVDA2811313D

CAD Envelopes

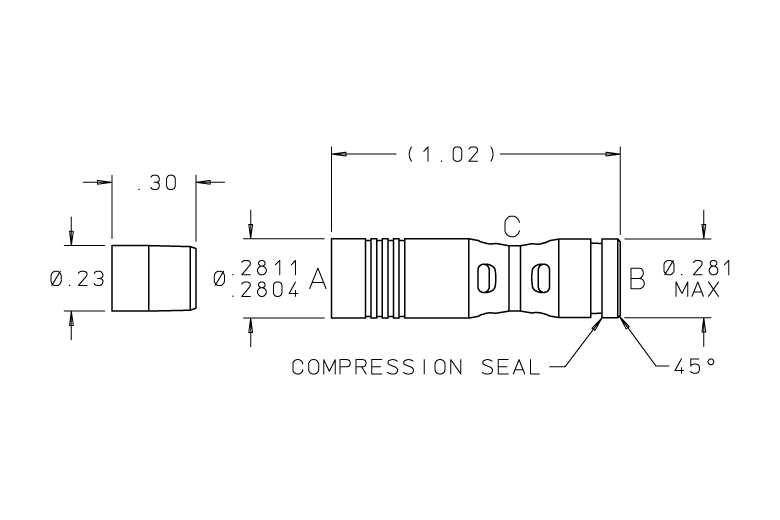

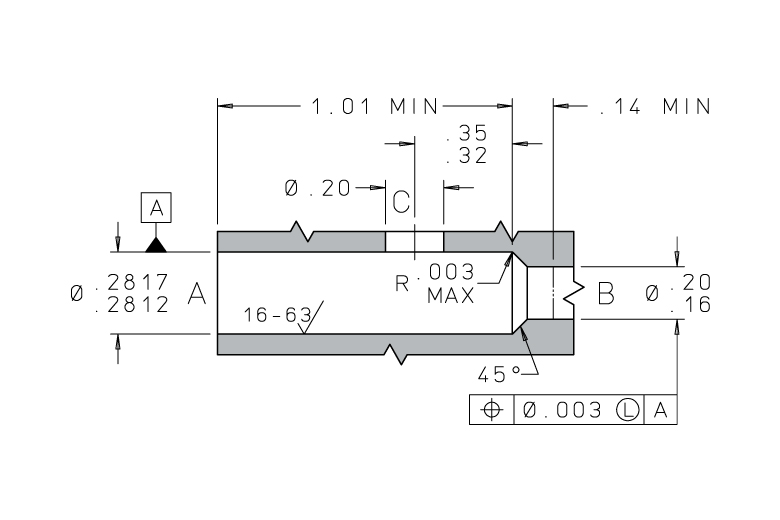

CAD Envelope
