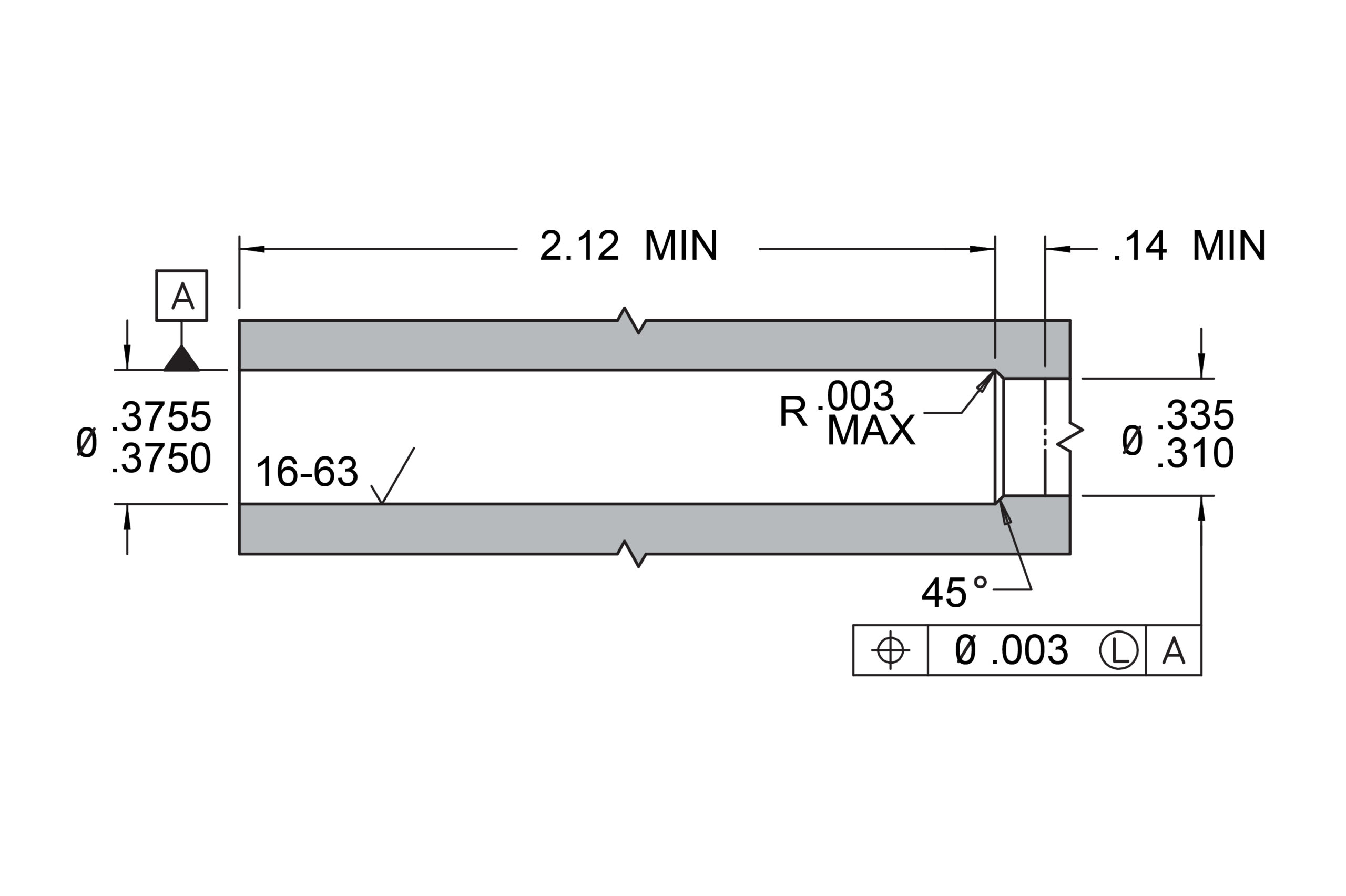

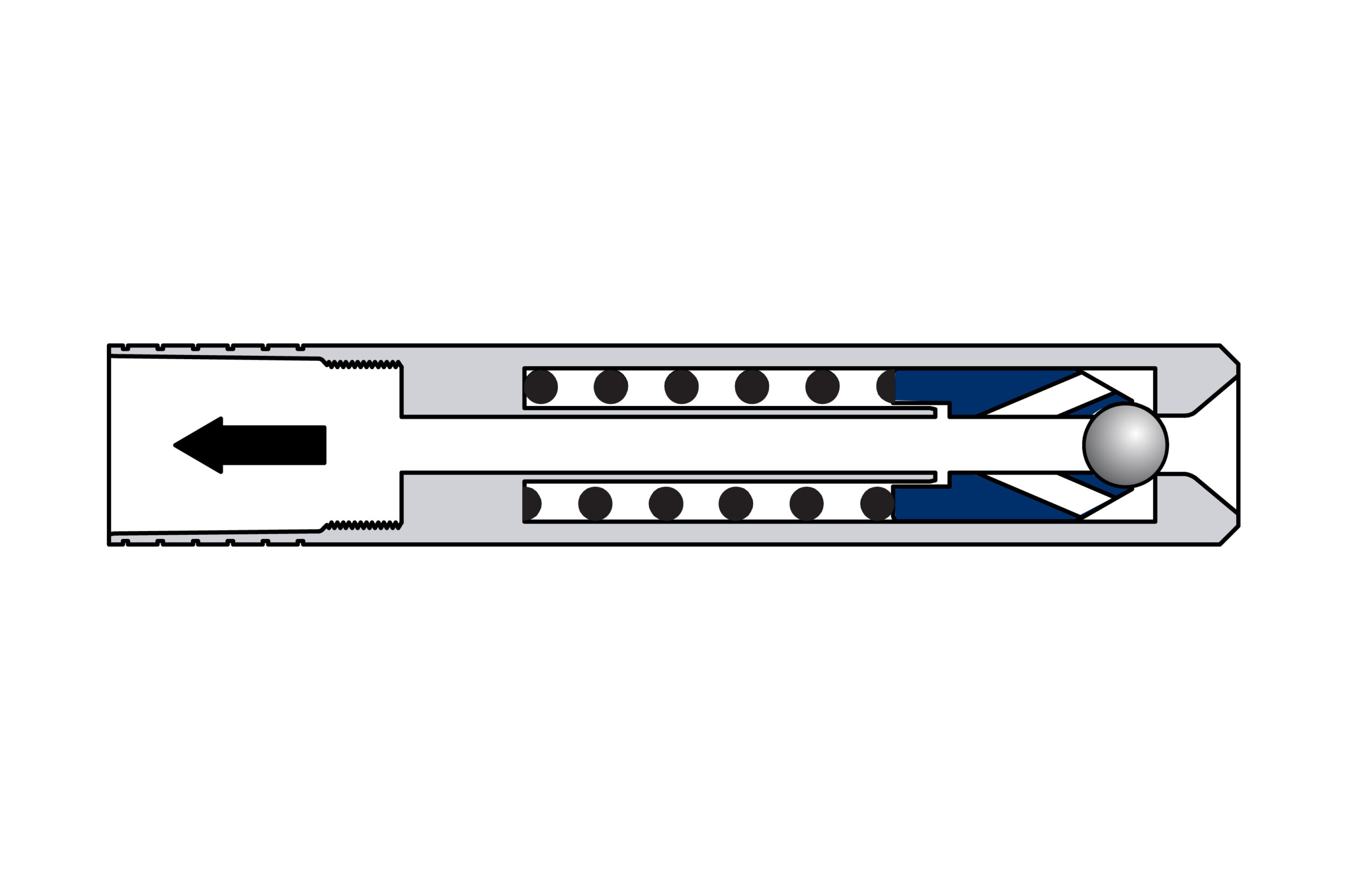

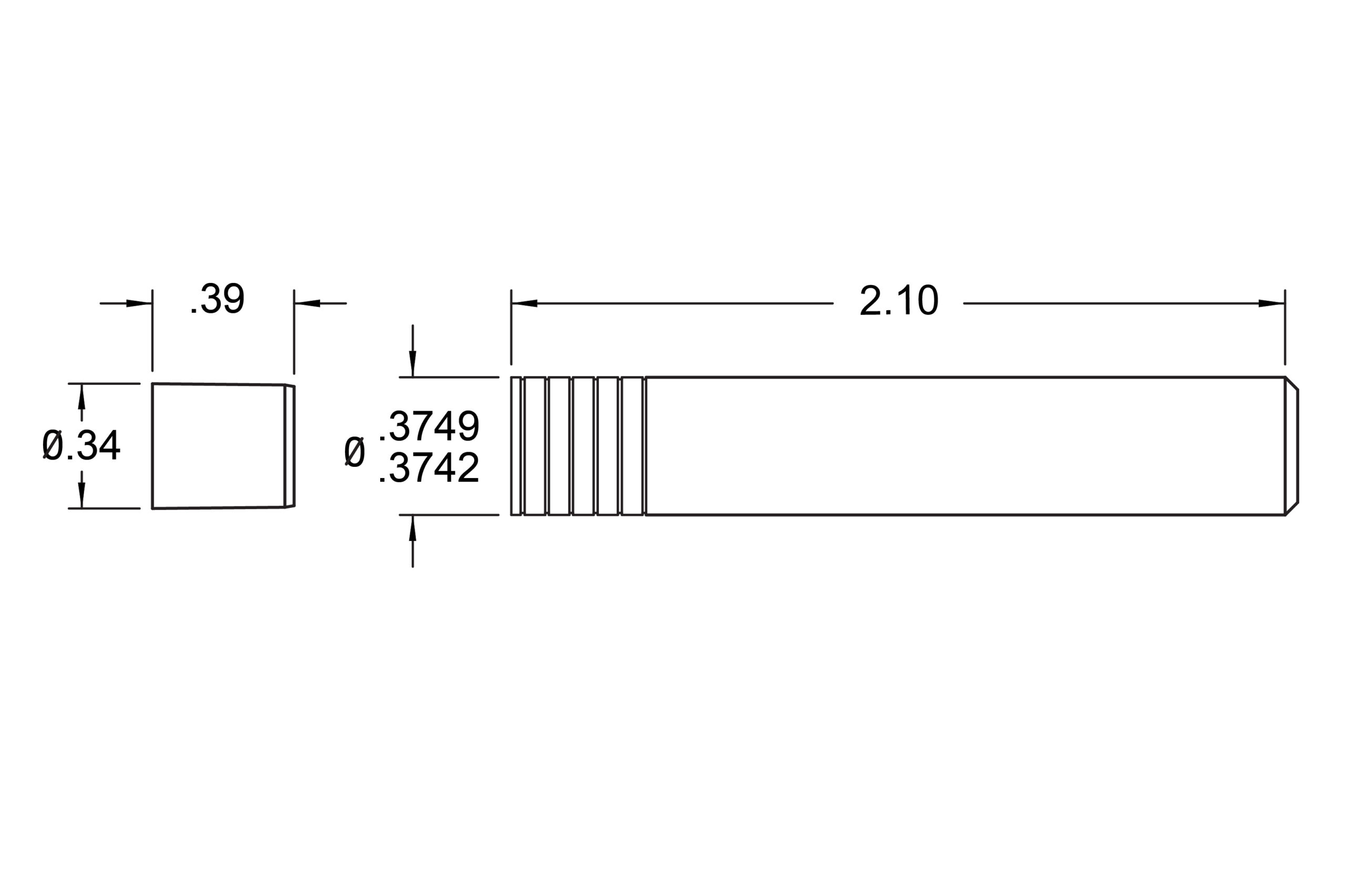

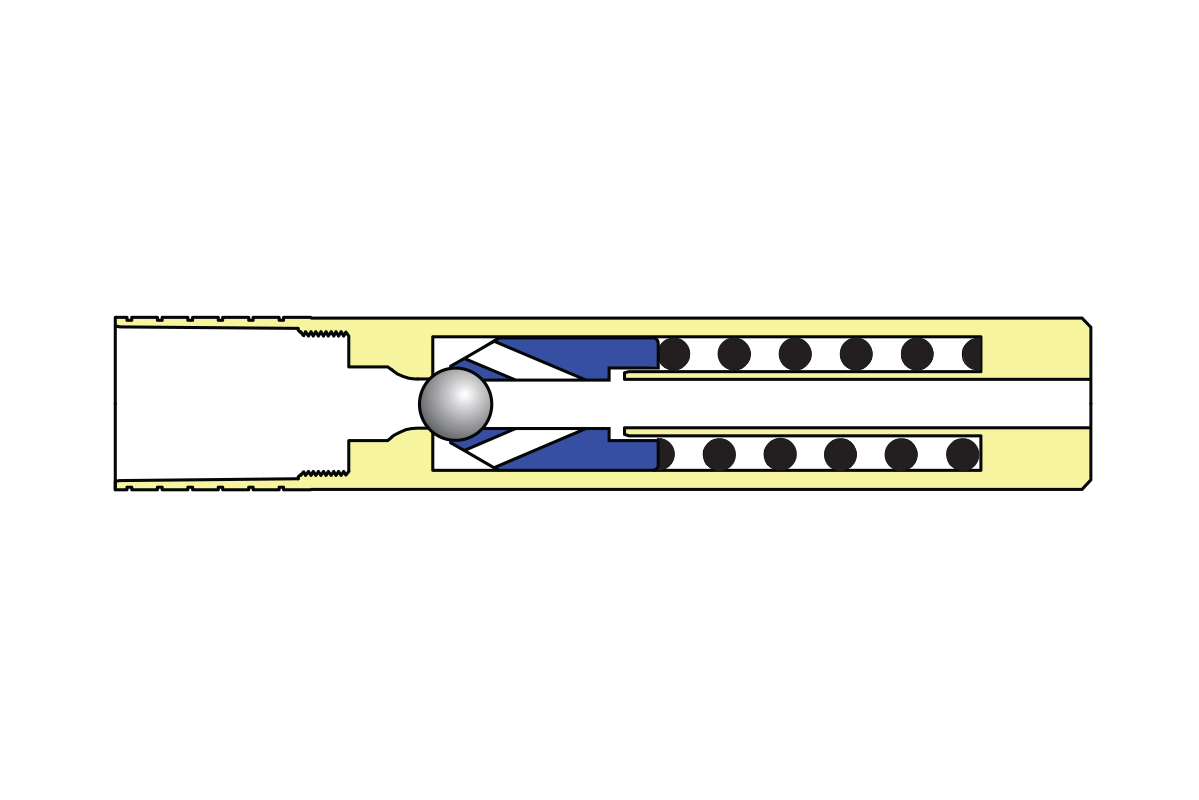

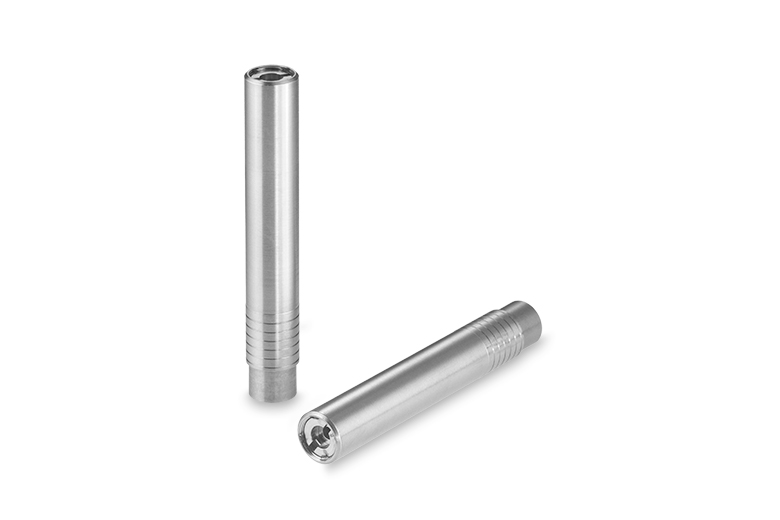

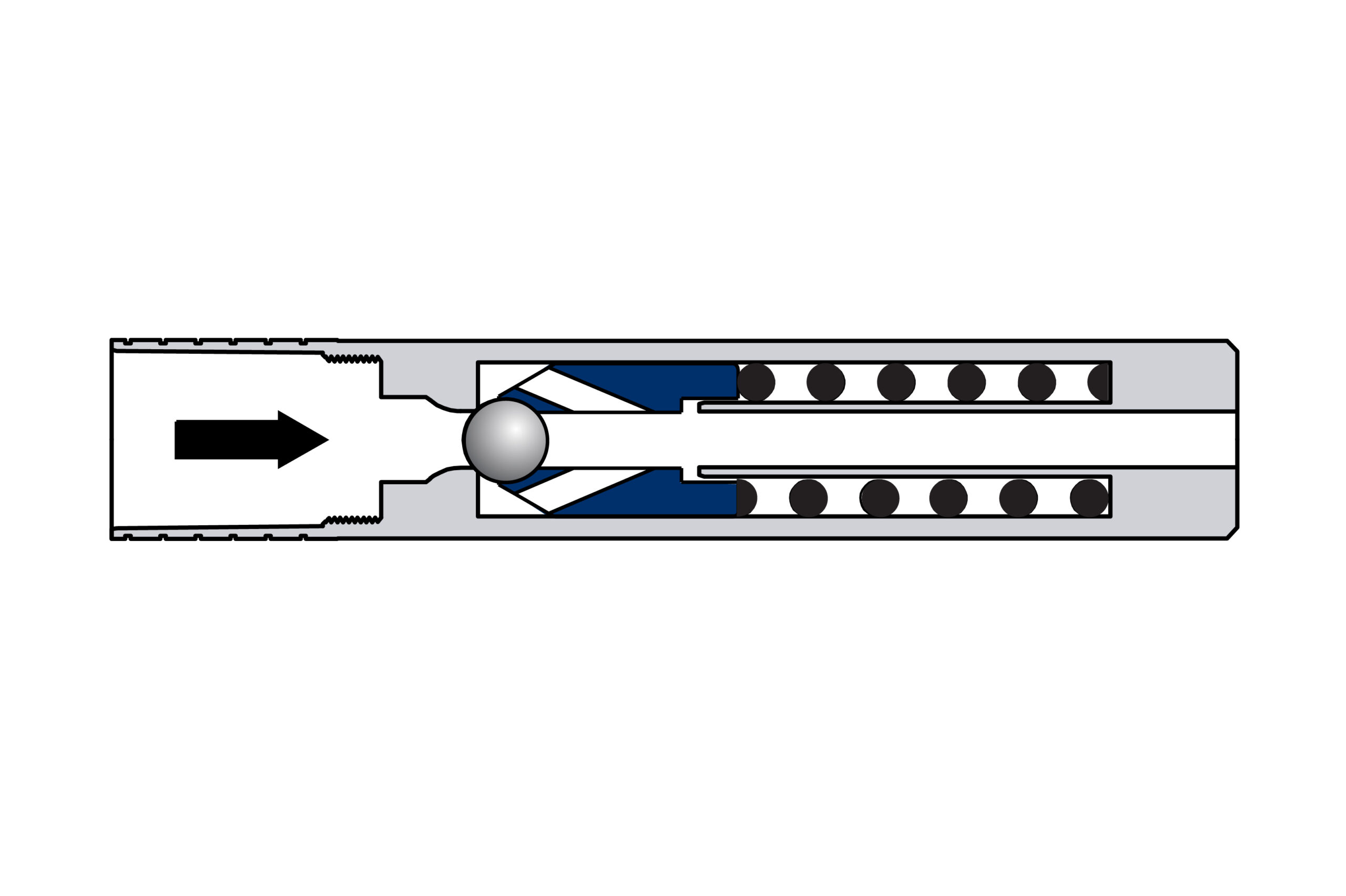

This direct-acting valve is ideally suited for high pressure hydraulic applications (up to 5000 psi) where a fast opening safety relief valve is needed to prevent system damage from pressure spikes. Minimum cracking pressures are available from 3000-5400 psid. An integral safety screen is available for added protection.
| Characteristic | Specification |
|---|---|
| Leakage at Minimum Cracking Pressure | 2 mL / Minute Maximum |
| Leakage at Minimum Shutoff Pressure: | 2 mL / Minute Maximum |
| Restriction at Minimum Recommended Valve Lift | 1500 Lohms |
| Nominal System Pressure | up to 5000 psi |
| System Peak Pressure | 6750 psi Maximum |
| Nominal Weight | 20 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 304 CRES | AMS 5639 |
| Pin | 17-4PH CRES | AMS 5643 |
| Poppet | 304 CRES | AMS 5639 |
| Seat | 440C CRES | AMS 5630 |
| Spring | 17-7PH CRES | AMS 5678 |
| Ball | Tungsten Carbide | - |
| Retainer | 15-5PH CRES | AMS 5659 |
| Tube | 13-8 MO CRES | AMS 5629 |
| Orifice Plate | 304 CRES | AMS 5639 |
| Shim | 17-7PH CRES | AMS 5529 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA3750514C | Installation / Extraction Tool Set |
| PHRA3750003A | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
