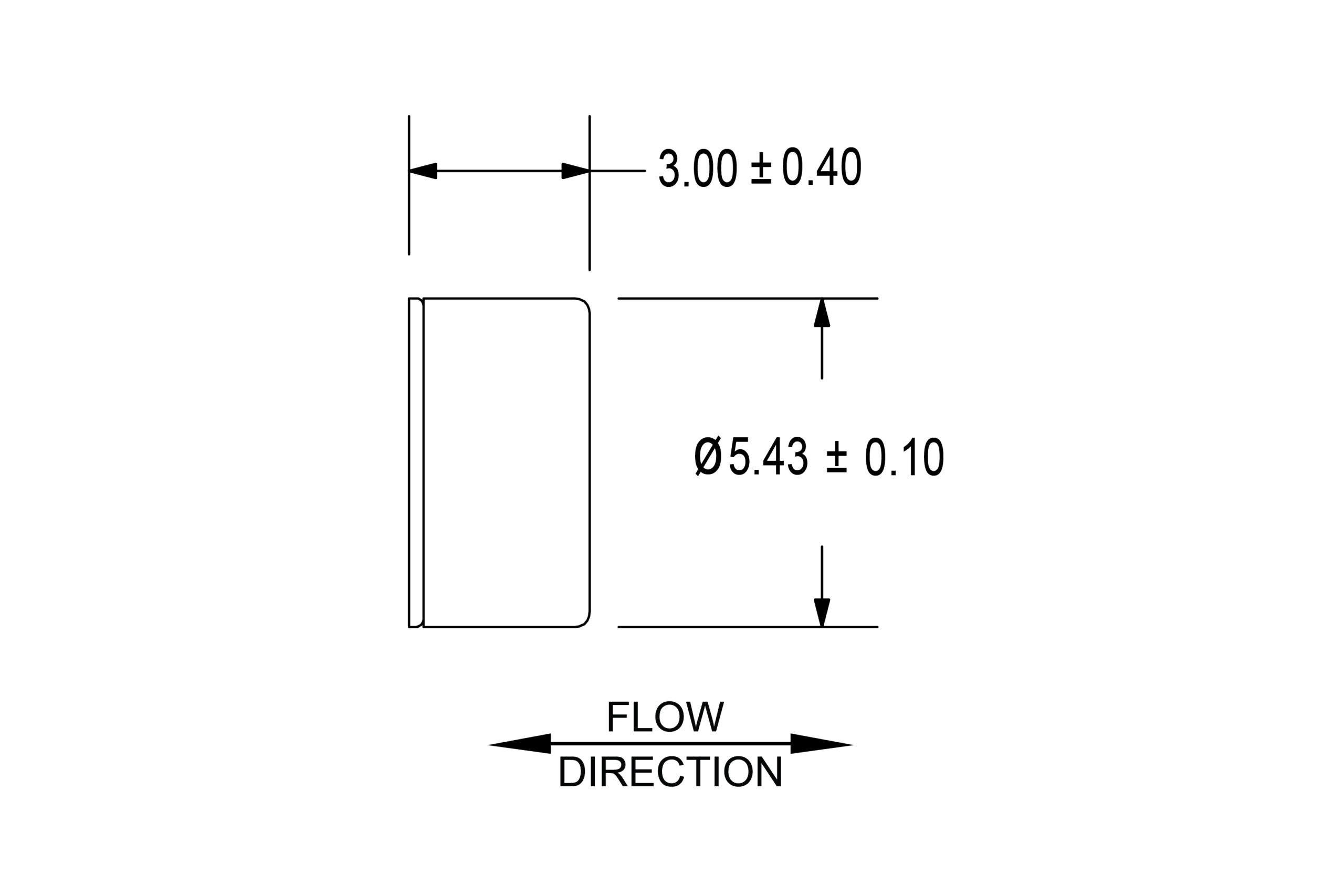

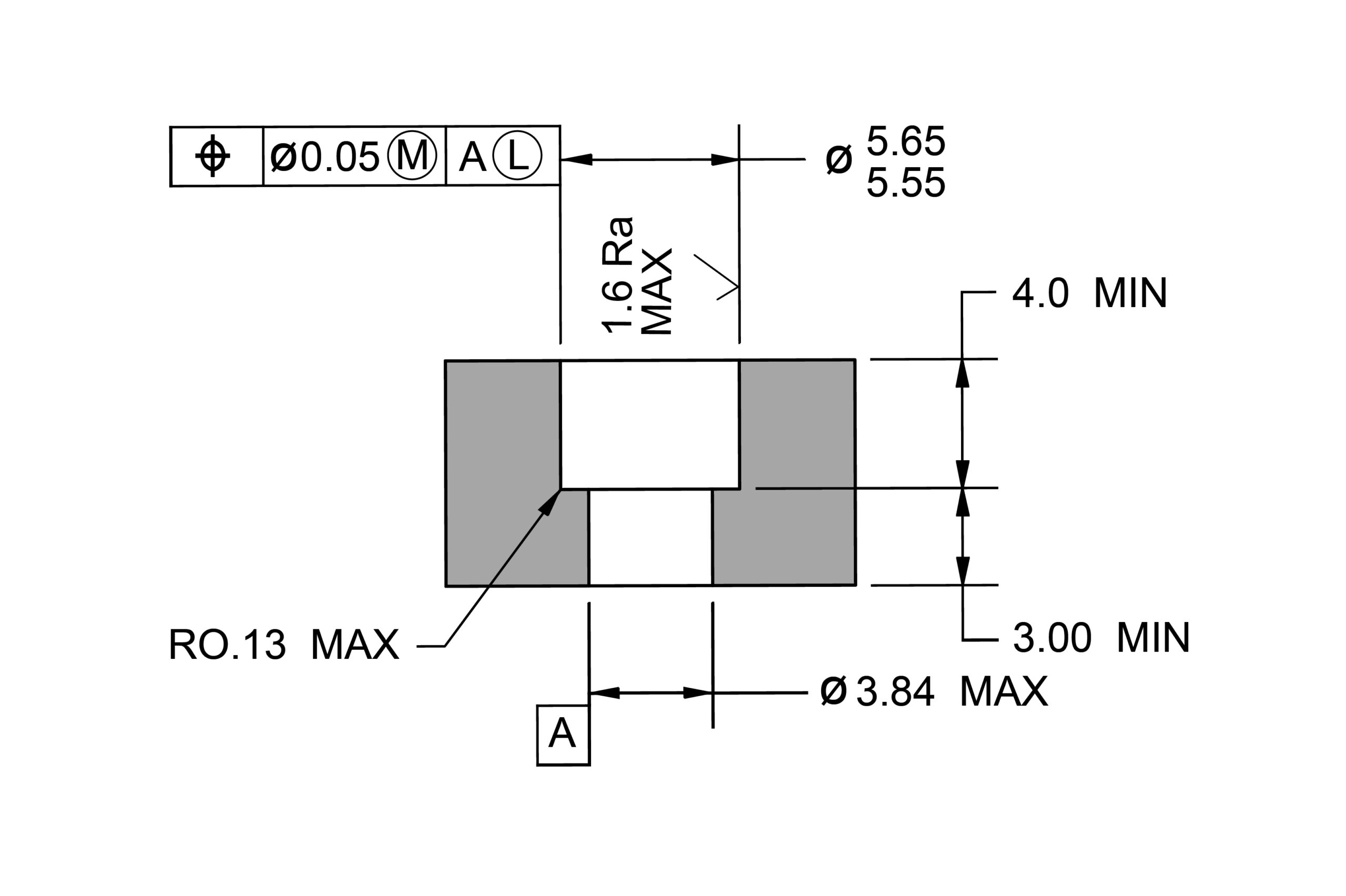

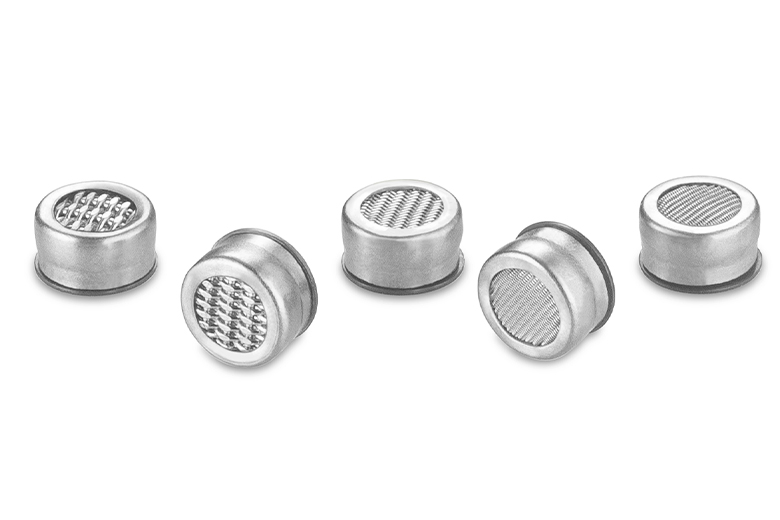

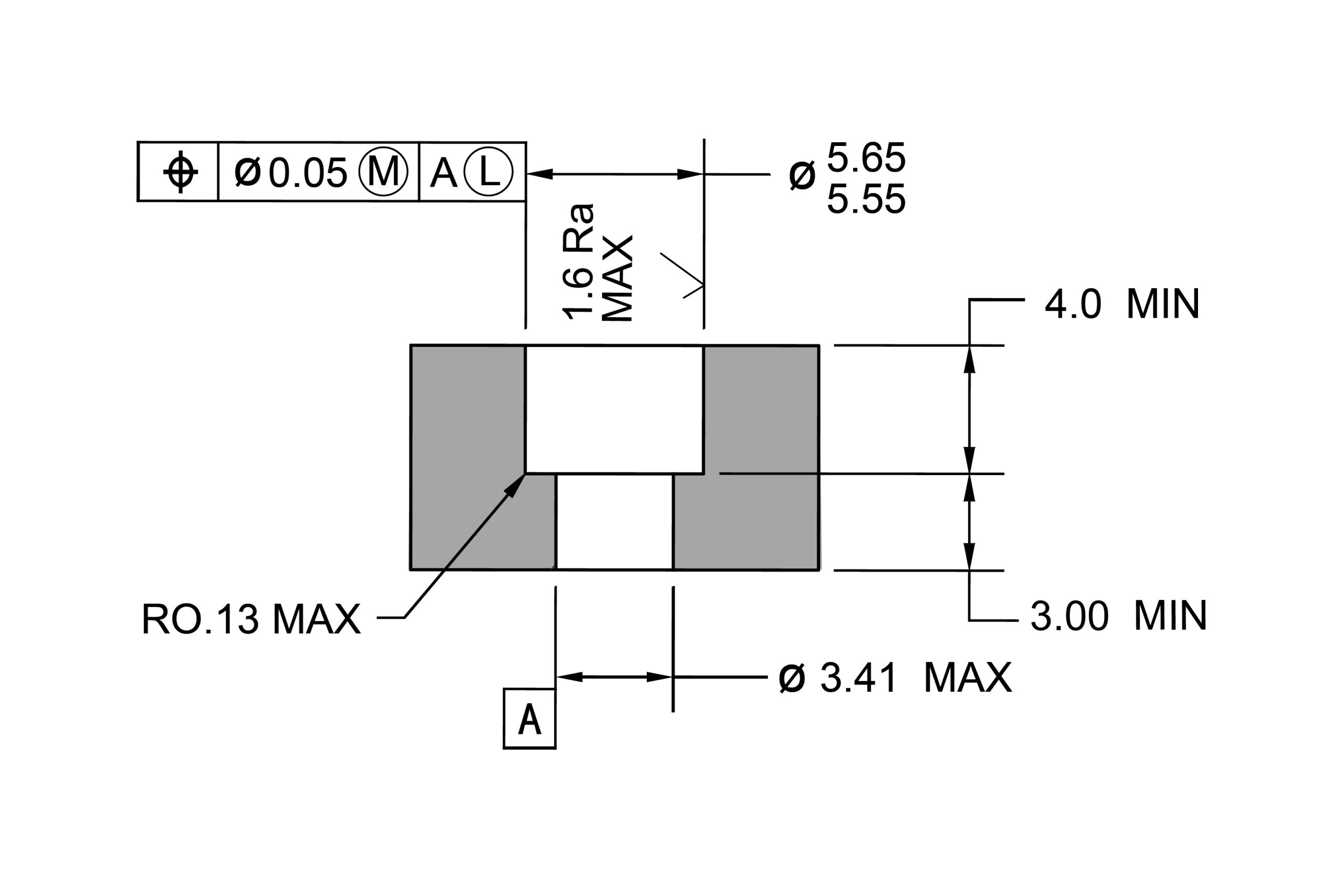

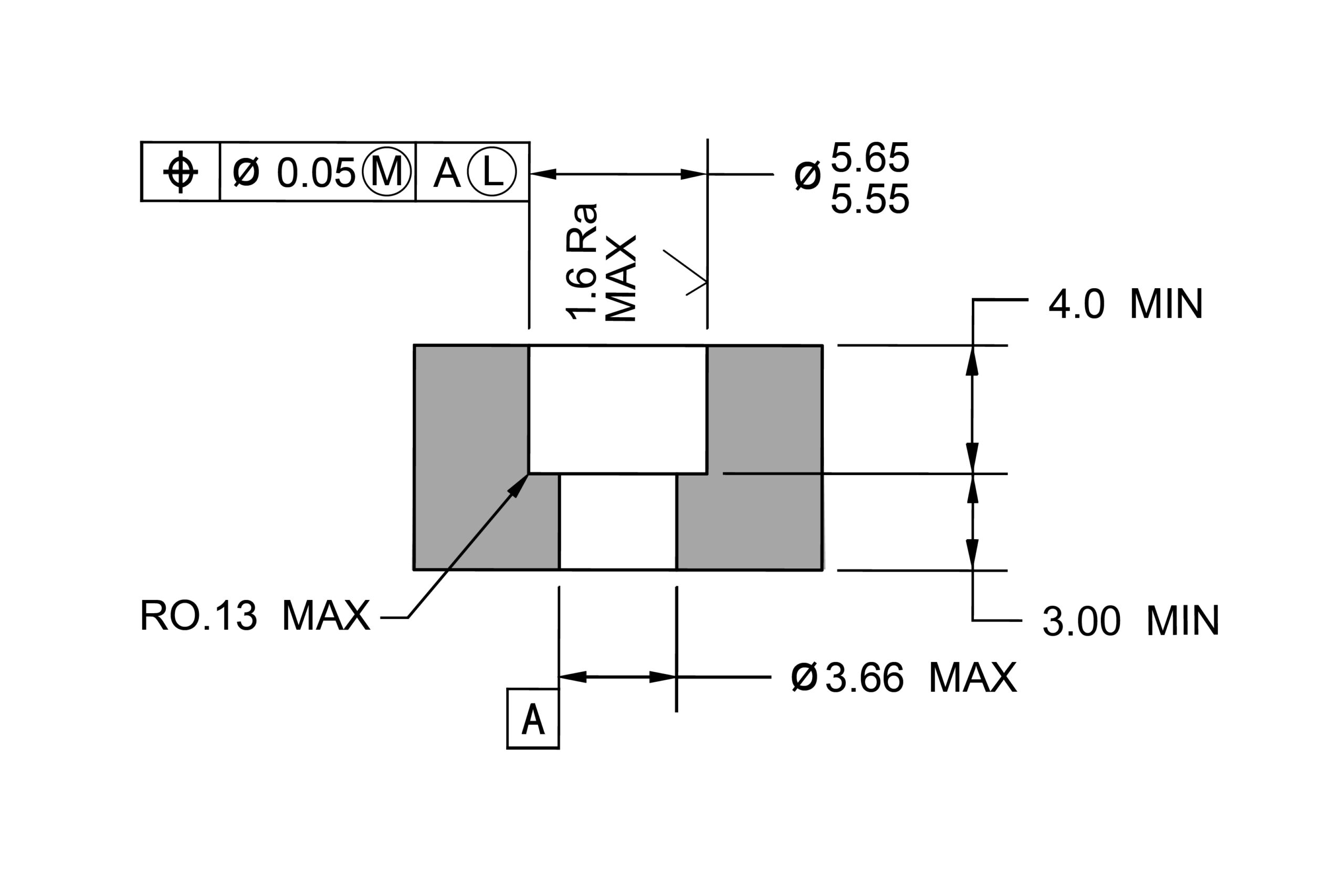

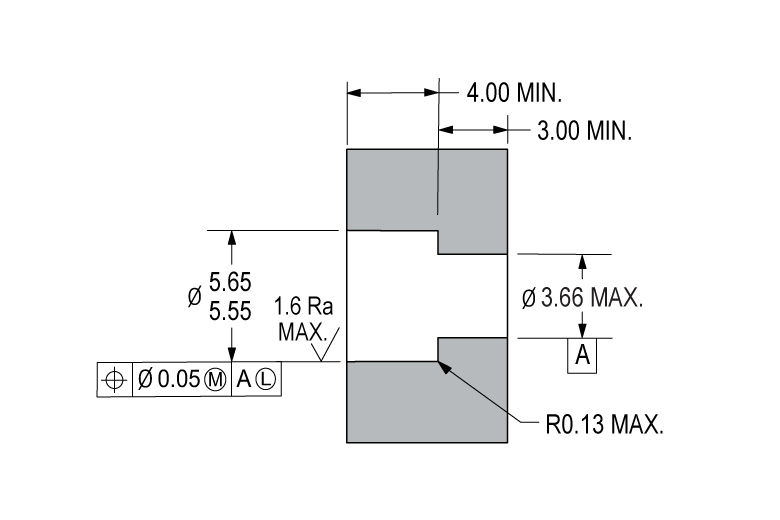

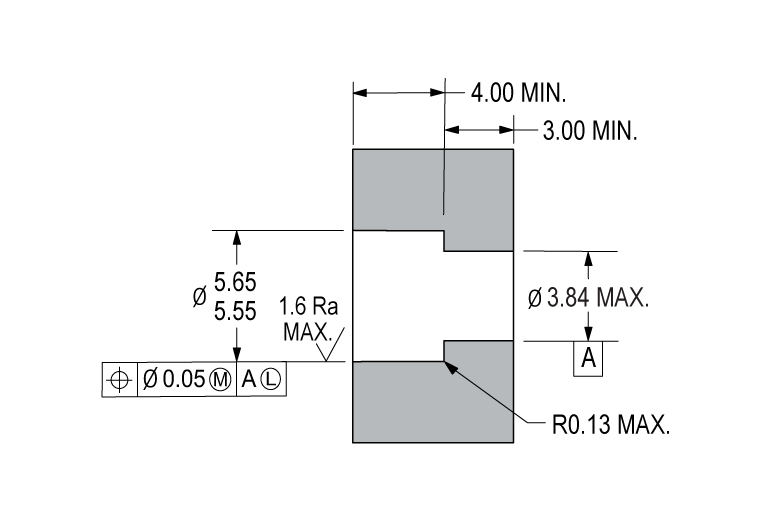

This stainless steel safety screen filter is designed to protect critical fluid control components against rogue contamination. The filter uses a woven wire mesh design that is bonded together using a proprietary process to guarantee high strength and integrity. It is designed for extremely high pressure applications where meeting such pressures could otherwise cause a screen to rupture if it clogged. The filter is designed to slip into a drilled flat bottom hole and should be retained by a secondary means. This last chance filter is available in a range of micron ratings from 40 to 170 microns.
| Characteristic | Specification |
|---|---|
| Screen Type | Woven Wire Mesh |

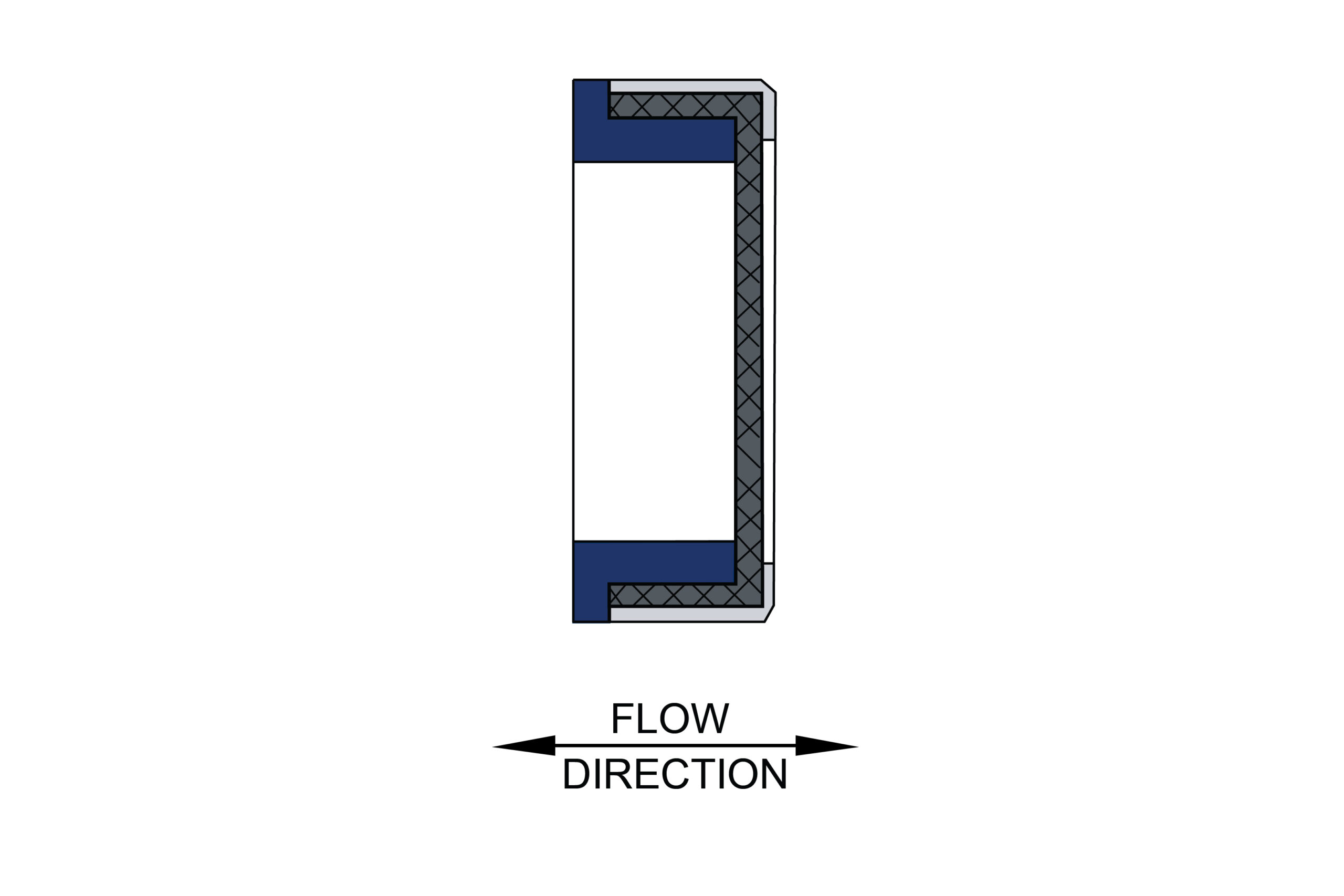

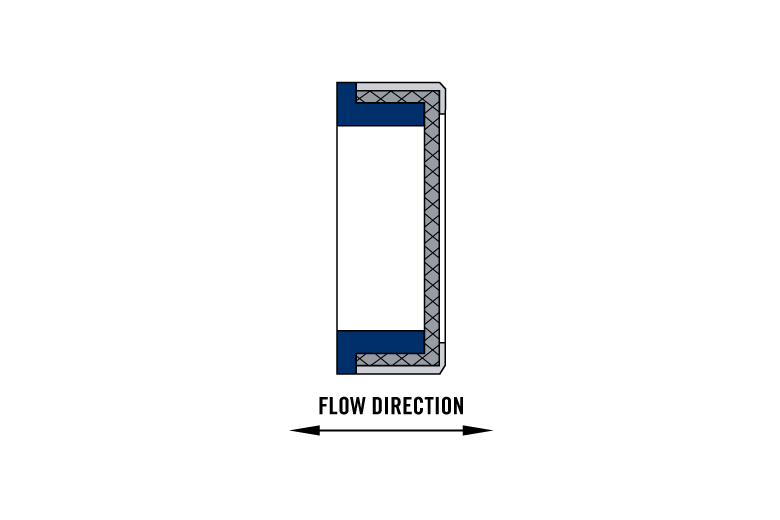

| Flow Direction | Bidirectional Flow |
| Minimum Burst Pressure | 24 MPa |
| Screen Retainer Part Number | SCRR5510001S |

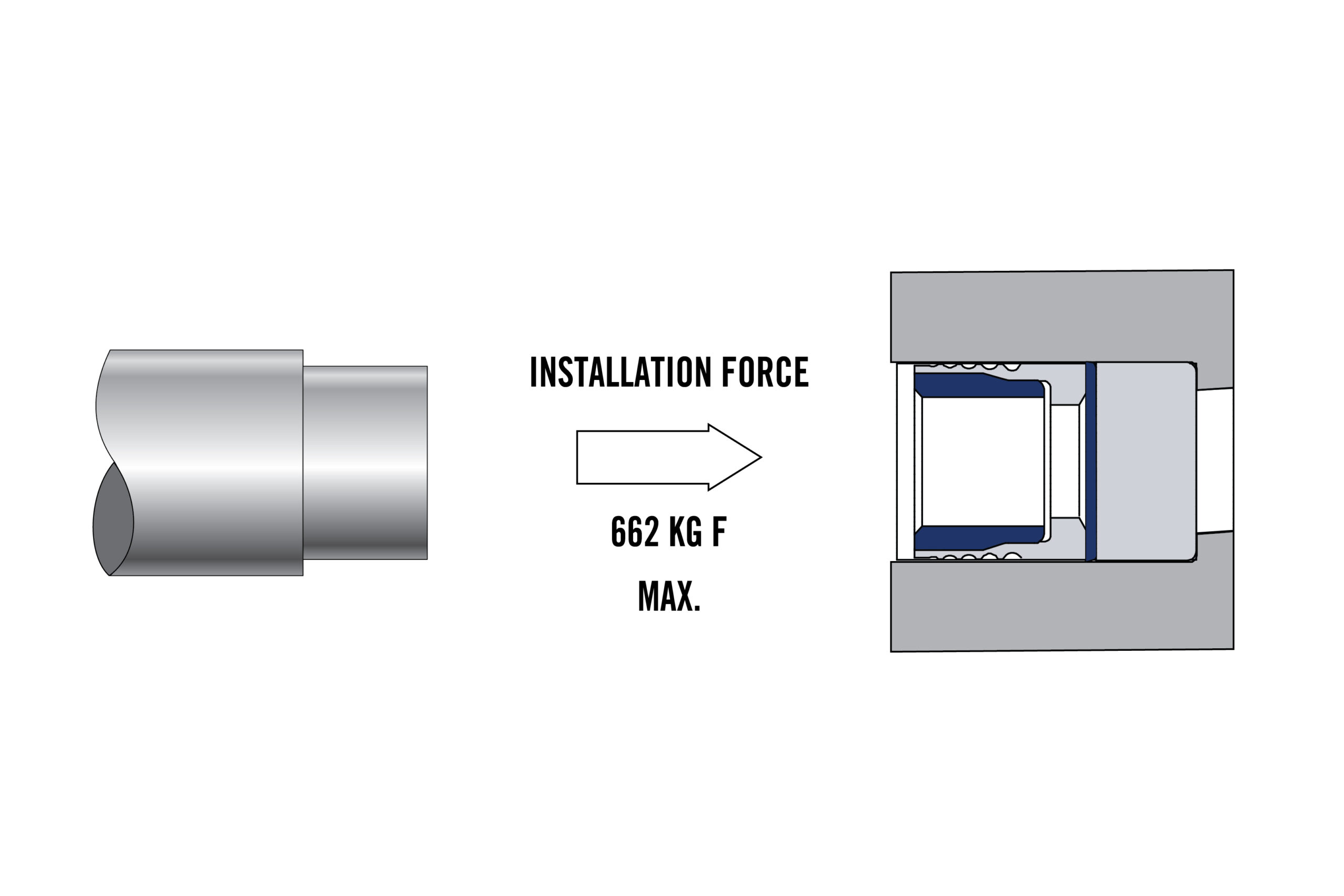

| Screen Retainer Installation Force | 662 KgF (Max.) |
| COMPONENT | MATERIAL |
|---|---|
| Body | 305 Stainless Steel |
| Pintal | 17-7 Stainless Steel |
| Screen | 316 Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|

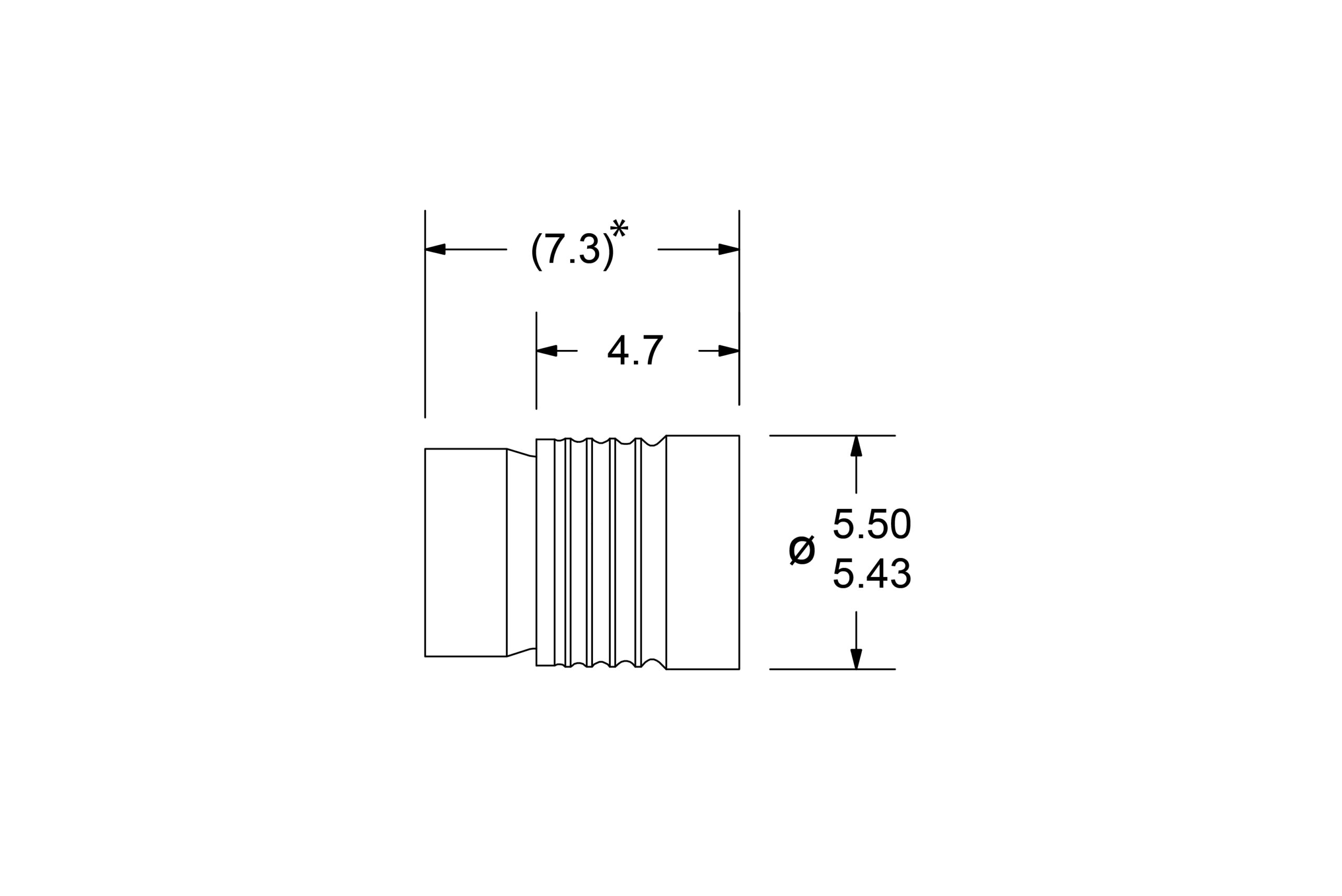

| SCRR5510001S | 5.5 mm Screen Retainer |
| CCRT0900120S | 5.5 mm Screen Retainer Installation Tool |
