5 mm DL Series Plug

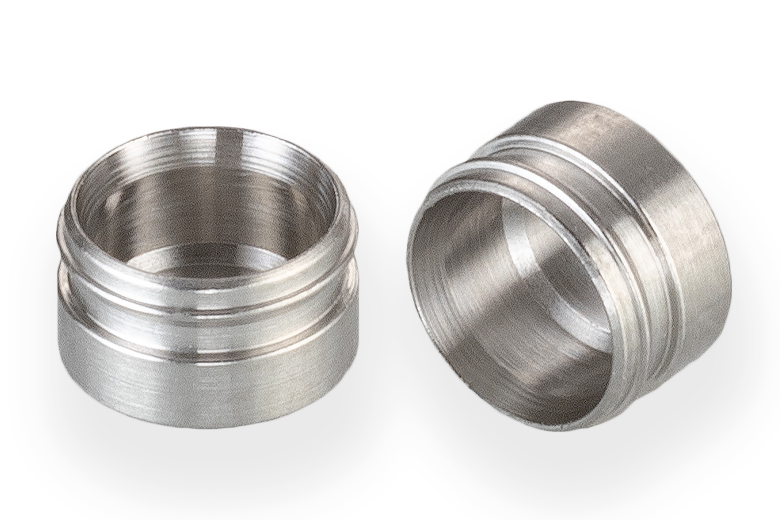

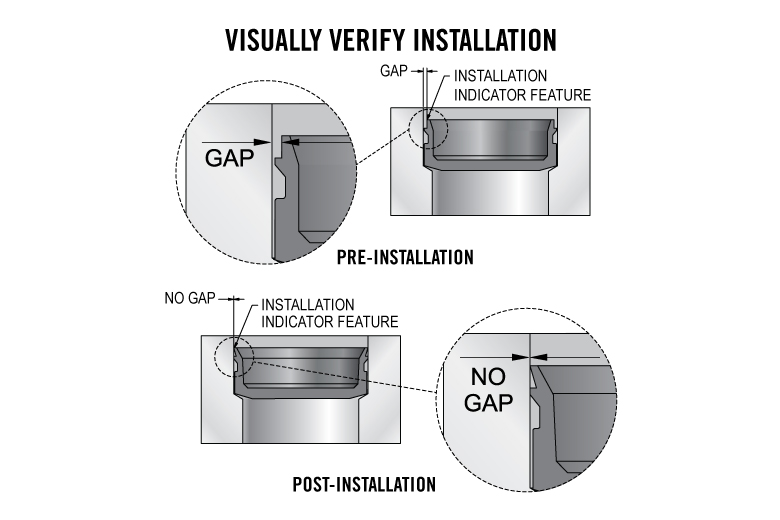

This single-piece stainless steel expansion plug uses our Drive Locking® technology to create a leak-tight seal in aluminum housings without the use of threads, sealants, or O-rings. The DL Series Plug* includes an Installation Indicator feature that allows customers to visually verify that the plug was properly installed. With this feature, manufacturers can easily automate both the installation and verification processes, helping to reduce costs and improve reliability.

*Patent Pending

Key Product Facts
  • Plug Diameter:4.95 mm
  • Max. Sealable Passageway Diameter:4.30 mm
  • Rated Pressure:69 bar
  • Plug Material:Stainless Steel
  • Housing Material:Aluminum

Product Information

General Performance
Characteristic Specification
Rated Pressure* 69 bar
Maximum Sealable Passageway Diameter 4.30 mm
Typical Installation Force in Aluminun 5 - 6 kN
Acceptable Housing Material Aluminum
*Pressure rating may be higher depending on specific application requirements. Contact your local Lee Sales Engineer to discuss higher pressure requirements.
Materials
COMPONENT MATERIAL
Plug 303 Stainless Steel

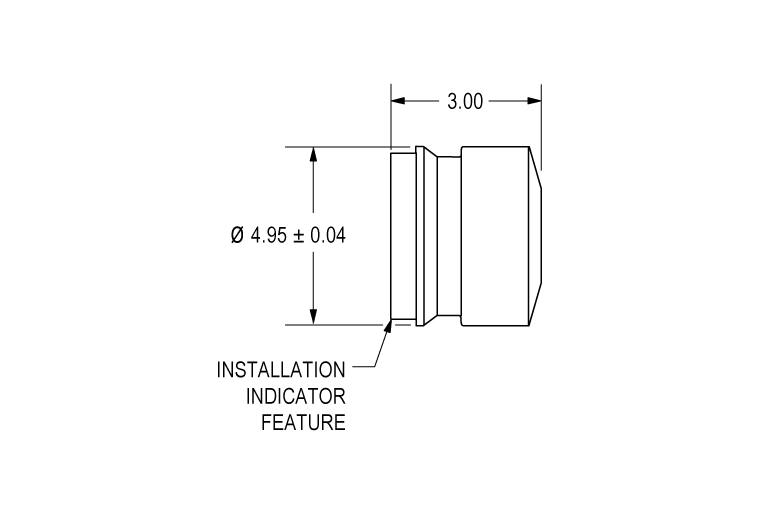

Dimensional View

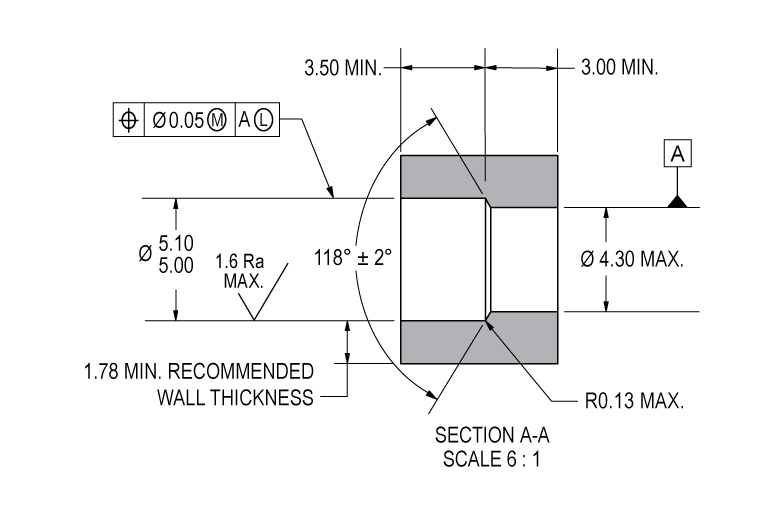

Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER WEIGHT INSTALLATION HOLE DRAWING NUMBER Request Information
DLPM0510100S 0.17 g 1INST115691S Request

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0500360S 5 mm DL Series Plug Installation Tool

CAD Envelopes
