This threadless, cartridge-style shuttle valve is a selective, non-detented, loose ball, three port isolation valve for use in hydraulic manifolds. The valve’s locking end uses the field-proven Lee Controlled Expansion Principle to provide secure retention without the need for threads, O-rings, or sealants. At 8 mm, the valve’s compact size makes it ideal as a signal for auxiliary functions, such hydraulically released, spring-applied brakes and load sensing applications.
| Characteristic | Specification |
|---|---|
| Lohm Rate | 32 Lohms (max.) |
| Flow Rate | 18.2 LPM at 345 kPa (4.8 GPM at 50 psid) on hydraulic fluid |
| Shuttling Pressure | 7 kPa (1 psid) max. |
| Leakage | 1 Drop/Minute (max.) After Two Minute Wait on Hydraulic Fluid in the Checked Direction at 6.9-27.6 MPa (1000-4000 psid) |
| Maximum Working Pressure | 280 Bar |
| Installation Force | 545 kgf (min.) to 635 kgf (max.) |
| COMPONENT | MATERIAL |
|---|---|
| Upper Body | 303 Stainless Steel |
| Lower Body | 303 Stainless Steel |
| Pin | 416 Stainless Steel |
| Ball | 440C Stainless Steel |

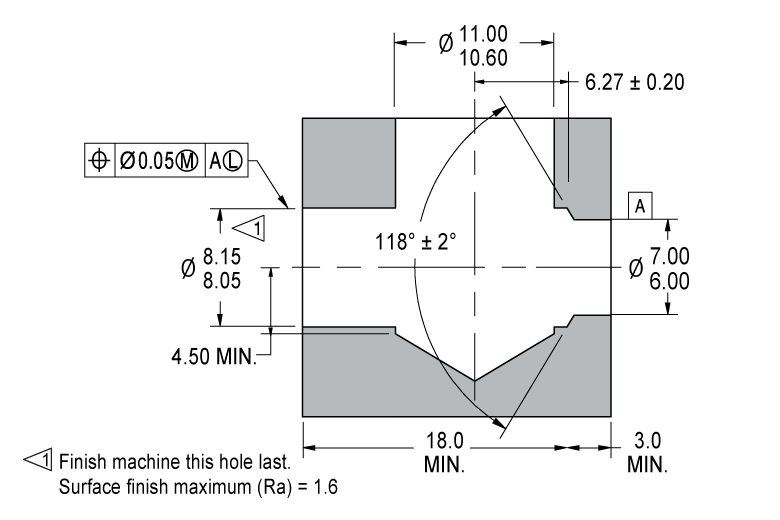

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0900150S | 8 mm Valve Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
