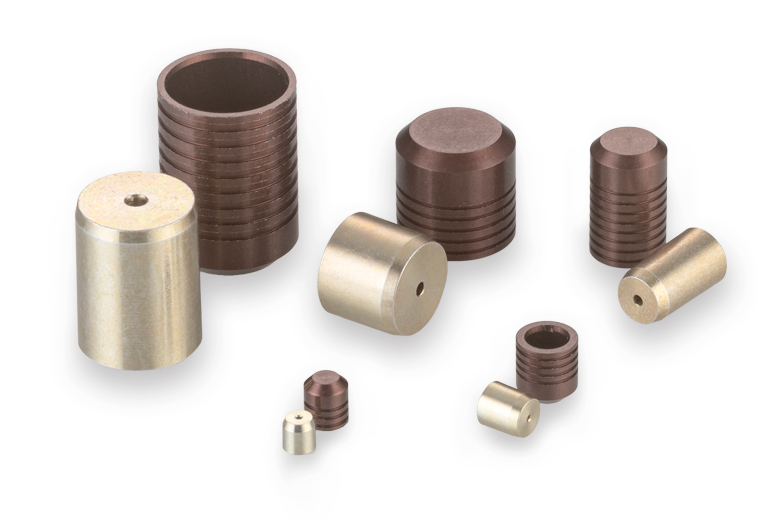

8,00 Aluminum Metric Lee Plug®

This member of our classic Lee Plug family is ideal for installation into aluminum manifolds. Lee plugs continue to be the simplest, most successful method for sealing cross-drilled holes. Upon installation of the pin, controlled expansion causes the lands and grooves of the plug to “bite” into the surrounding material, forming independent seals and retaining rings. Sizes range from 2.5 to 8 millimeters.

Key Product Facts
  • Plug Diameter:8.00 mm
  • Max. Sealable Passageway Diameter:7.2 mm
  • Proof Pressure:98 MPa
  • Plug Material:Aluminum
  • Housing Material:Aluminum

Product Information

General Performance
 Class 1 Class 2 Class 3
Short 39 54 69
Long 59 79 98
Proof Pressure (MPa)
Materials
PART MATERIAL SPECIFICATION FINISH
Pin 2024-T4 or T351 Aluminum SAE AMS-QQ-A-225/6 Alodine Yellow per MIL-DTL-5541 & Wax
Plug 2024-T4 or T351 Aluminum SAE AMS-QQ-A-225/6 Anodize Brown per MIL-A-8625 Type II B
Electrical Operation

For dimensions, please refer to the Part Numbers & Specifications tab.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Image Specifications

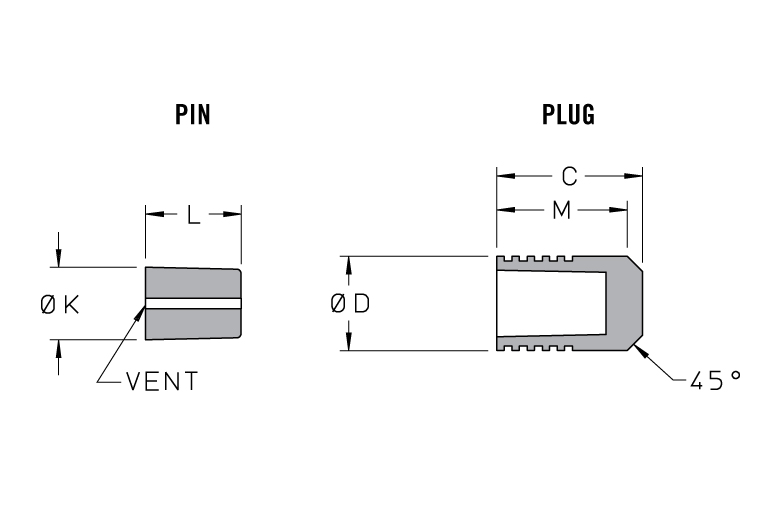

Dimensional View

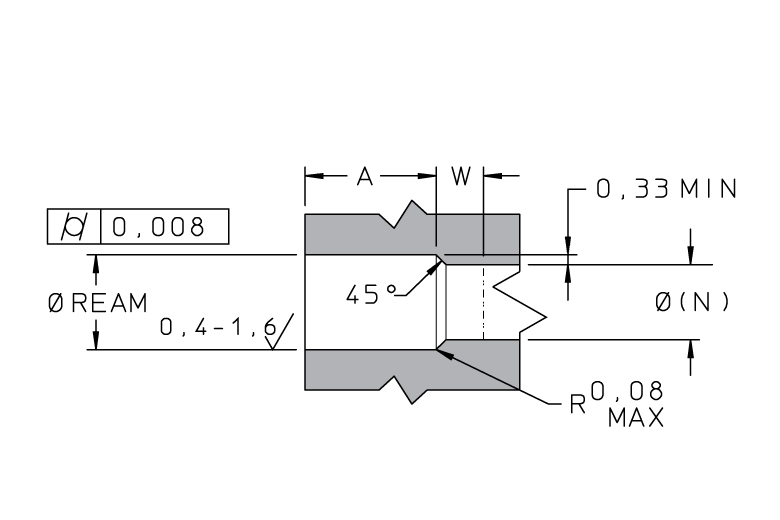

Installation Hole Details
Part Numbers & Specifications
Part Number Size D Max. D Min. C Nom. M Nom. K Nom. L Nom. Weight (g) A Min. N Dia. Ref. W Min. Ream Dia.
Class 1
Ream Dia.
Class 2
Ream Dia.
Class 3
Request Information
PLGM0800010A Short 8 7.98 7.62 6.74 7.05 5.69 0.99 7.2 7.2 3.2 H10 * 8.00 - 8.06 H9 * 8.00 - 8.04 H6 * 8.00 - 8.01 Request
PLGM0801010A Long 8 7.98 11.05 10.11 7.05 9.02 1.5 10.6 7.2 3.2 H10 * 8.00 - 8.06 H9 * 8.00 - 8.04 H6 * 8.00 - 8.01 Request
*DIN 7154 tolerances fall within ream tolerances.
All dimensions are in millimeters. This information is for reference only.

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA3120203A Installation Tool Set
CUTM0800103B Extraction Tool Set
CUTM0801103A Gauge

CAD Envelopes

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
