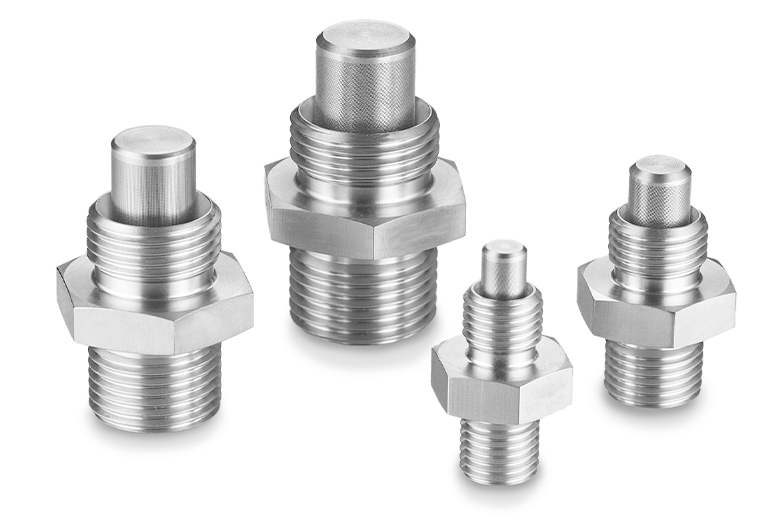

Lee HI-BAR Inlet Safety Screens save space and weight by incorporating the inlet screen directly into the boss fitting end rather than the more traditional approach of having the inlet screen installed in the manifold directly below the fitting. This unique design also offers greater flow and dirt holding capacity than a design that completely encapsulates the screen in the fitting. Lee HI-BAR Inlet Safety Screens are machined entirely from 15-5PH stainless steel and are rugged enough to withstand pressure differentials up to 6000 psi without burst or collapse. Each component is 100% proof pressure tested before shipment to ensure reliable performance. These screens are available in -4, -6, -8, and -10 configurations (AS33514 flareless tube to AS930 port fitting ends), which can be installed into a standard boss per AS33649 or equivalent. Eight standard hole sizes ranging from 50 to 500 micron are available.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

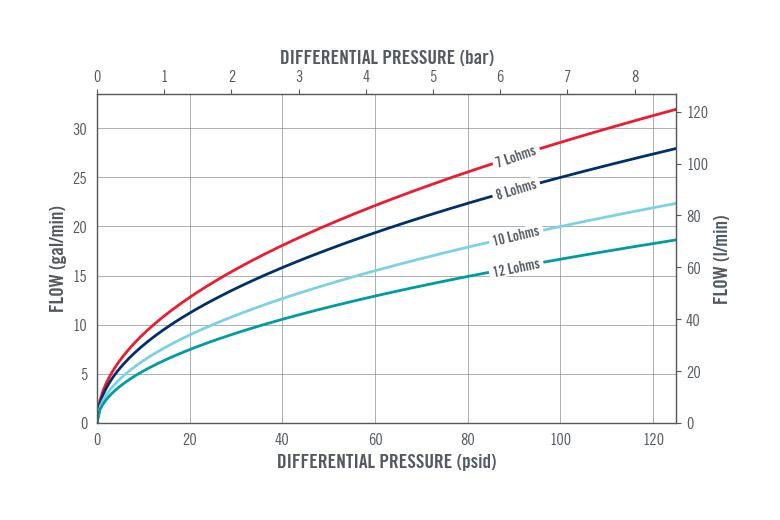

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
