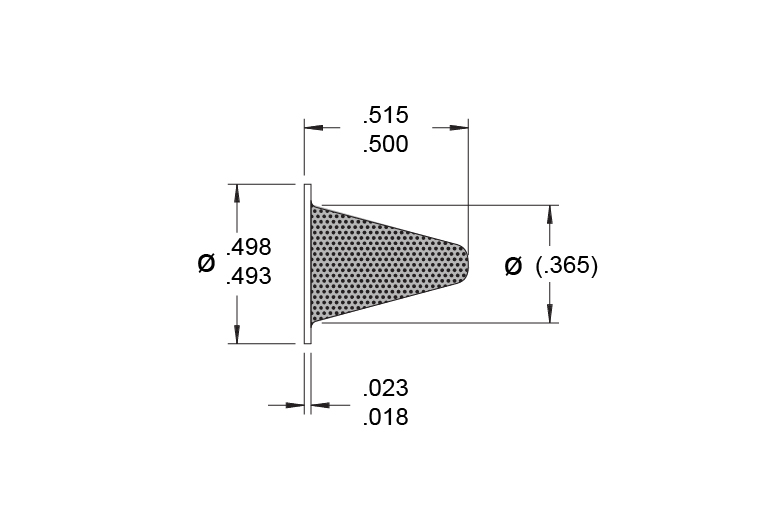

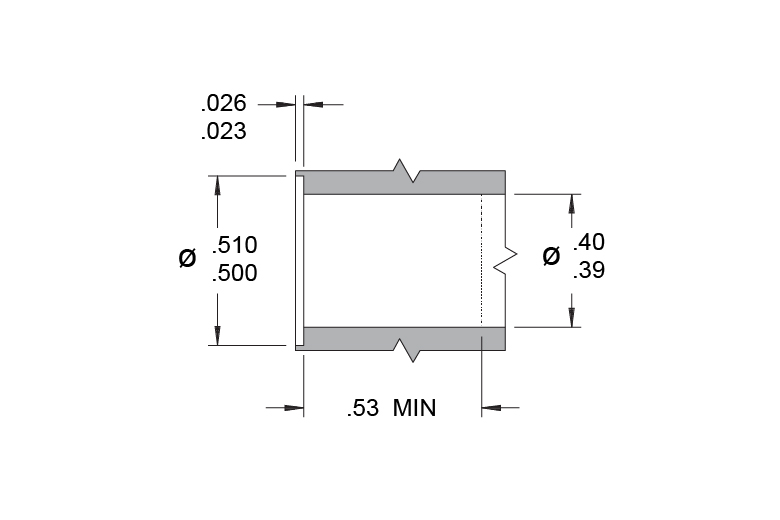

Lee PEEK HI-BAR Safety Screens are made entirely from PEEK (PolyEtherEtherKetone), a high performance engineering thermoplastic with excellent chemical resistance and superior mechanical properties. Depending on size, these lightweight, high strength polymer screens feature a robust, single-piece construction that can withstand pressure differentials from 350 psid to 1000 psid without rupture. These PEEK HI-BAR safety screens are available in a wide range of standard hole sizes from 75 to 500 micron. Lee Flange Mount HI-BAR Safety Screens incorporate a simple, flange mounting configuration and are available in six flange sizes ranging from 0.130″ to 0.670″ in diameter.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

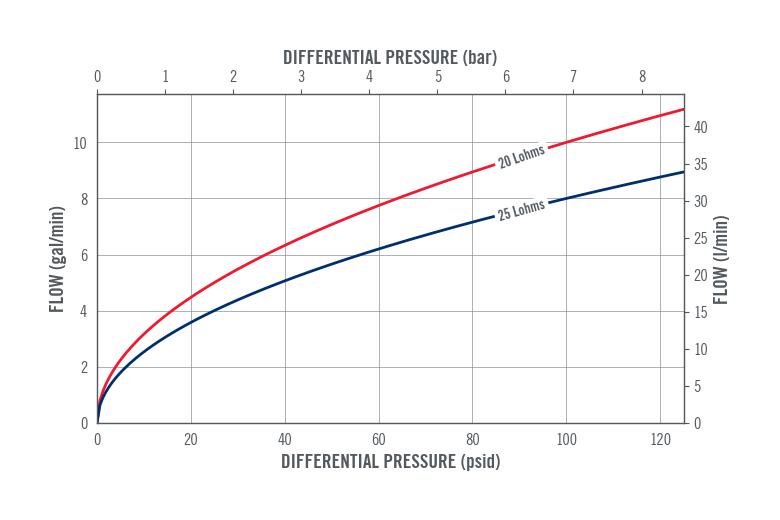

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
