Safety Screen Filters

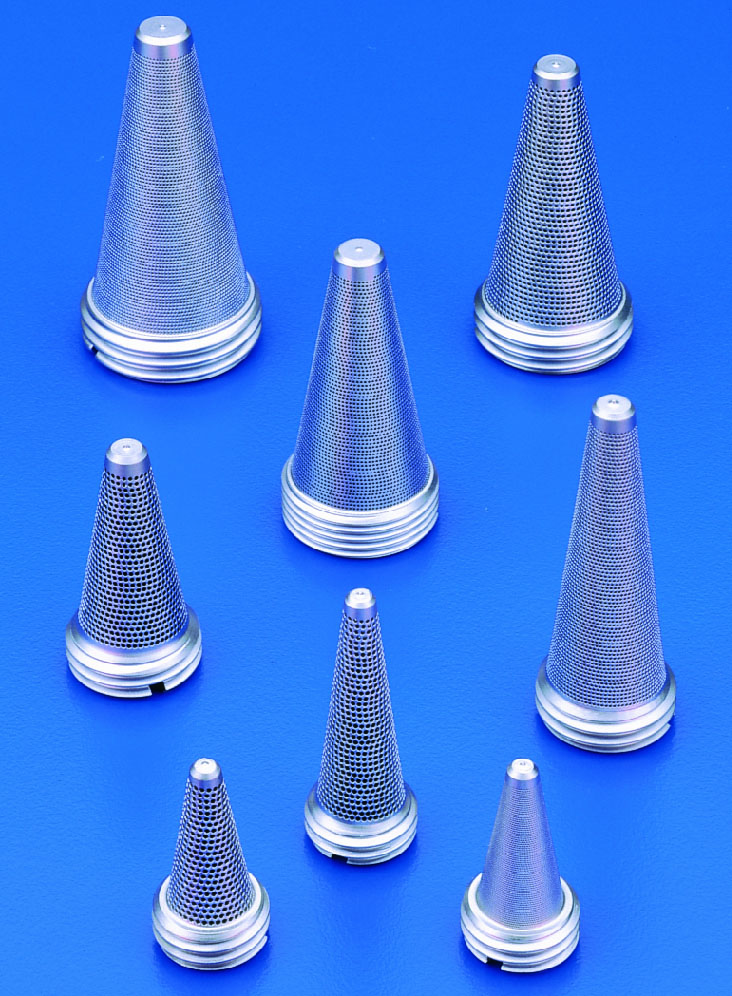

HI-BAR® Safety Screen Filter, MJ12 Boss Mount, 15-5PH

Individually laser drilled and deburred by proprietary manufacturing processes, this last chance filter features an extremely robust, one-piece design without joints or seams. Machined entirely from 15-5PH stainless steel, resulting in a high strength filter that can withstand burst and collapse pressures up to 7500 psid. This filter is available in a wide range of standard hole size options from 50 to 500 microns and incorporates a M12 thread for retention.

Key Product Facts
  • Mounting Configuration:Boss Mount
  • Lohm Rate:14 to 28 Lohms
  • Micron Rating:50 to 500 microns
  • Part Diameter:12 mm
  • Screenable Passageway Diameter:10.64 mm

Product Information

Materials
PART MATERIAL SPECIFICATION FINISH
Screen 15-5PH CRES AMS 5659 Passivate

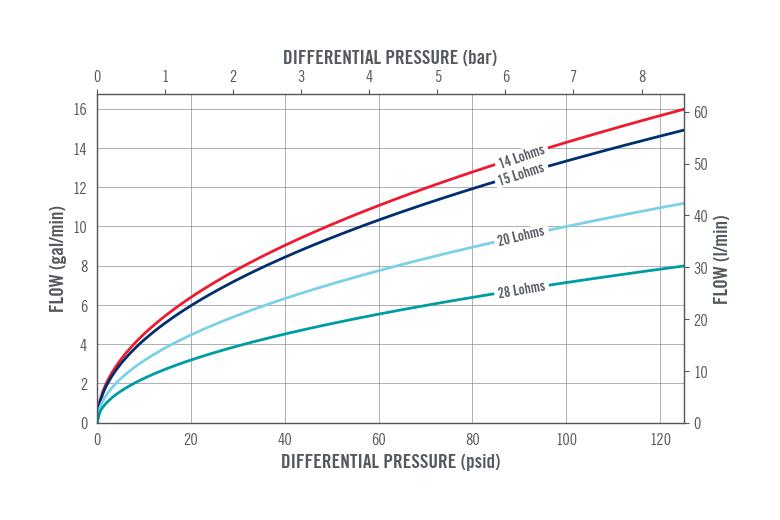

Flow Curve

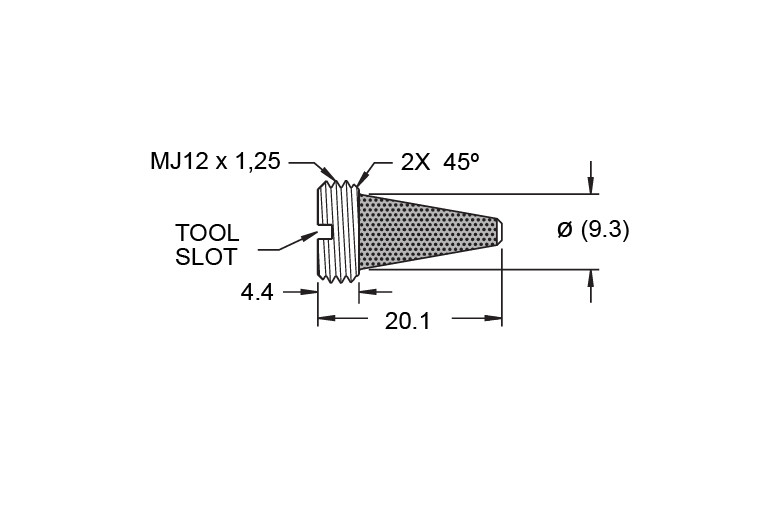

Dimensional View
Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER LOHM RATE (nominal) MINIMUM BURST/COLLAPSE PRESSURE (bar) ROB NUMBER NOMINAL SCREEN HOLE SIZE (in) NOMINAL SCREEN HOLE SIZE (μm) SCREEN OPEN AREA (mm2) TOTAL SCREEN AREA (mm2) NUMBER OF HOLES Request Information
FSHB1203105M 28 520 1.4 0.002 50 28 300 14,260 Request
FSHB1203107M 20 520 3.3 0.003 75 40 300 8775 Request
FSHB1203110M 15 520 7.6 0.004 100 58 300 7155 Request
FSHB1203115M 15 520 16 0.006 150 58 300 3180 Request
FSHB1203120M 15 520 30 0.008 200 58 300 1790 Request
FSHB1203125M 15 520 53 0.01 250 58 300 1180 Request
FSHB1203140M 14 520 186 0.015 380 73 300 640 Request
FSHB1203150M 14 520 428 0.02 500 73 300 360 Request
