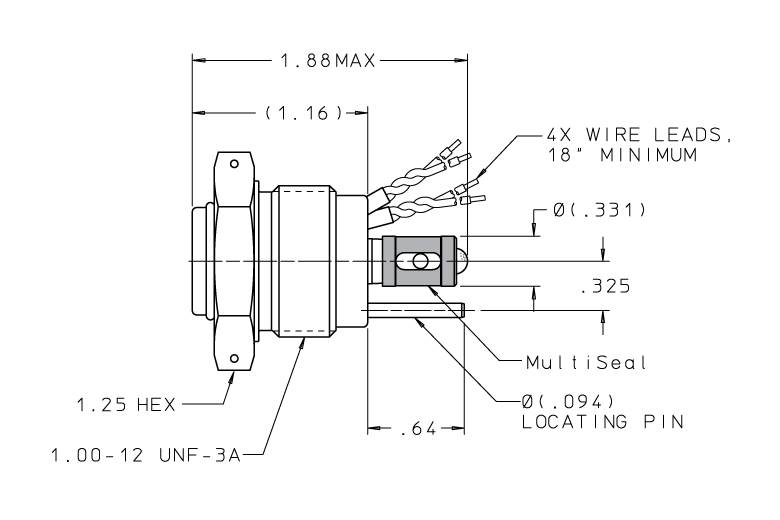

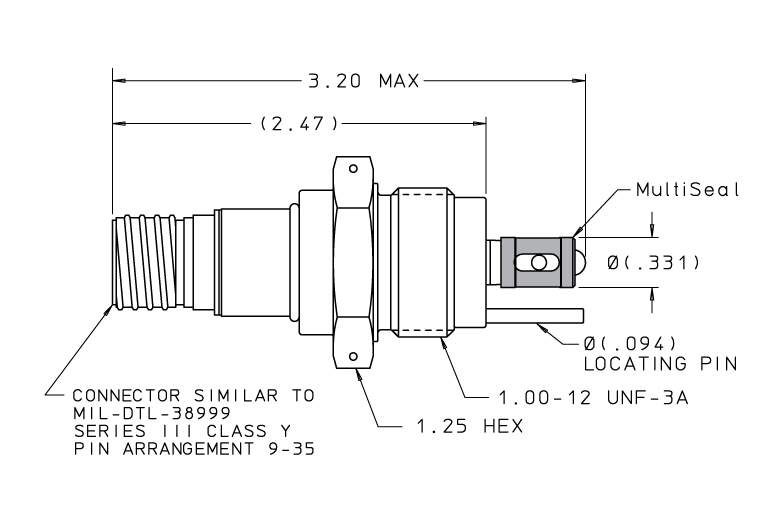

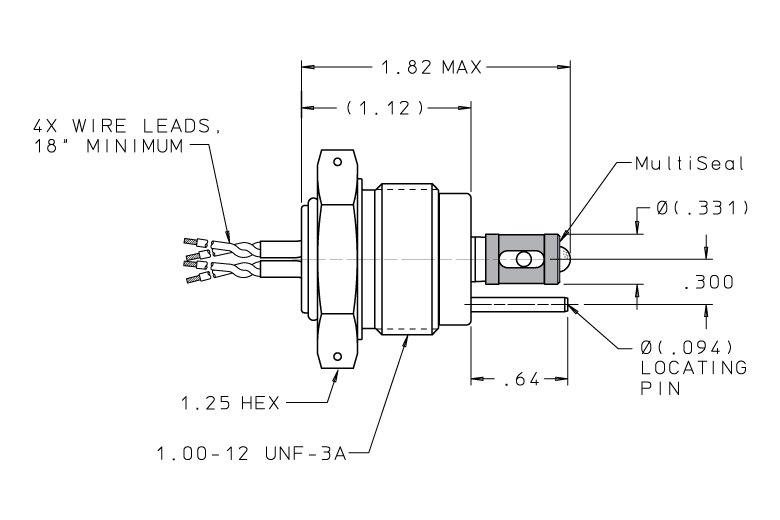

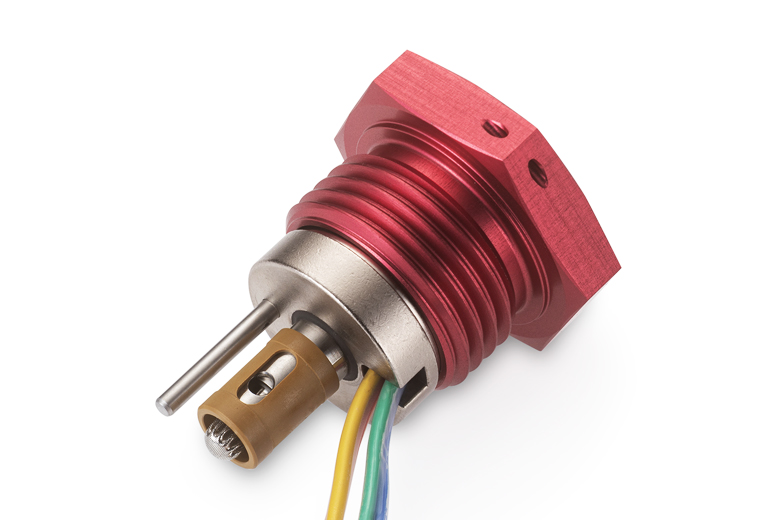

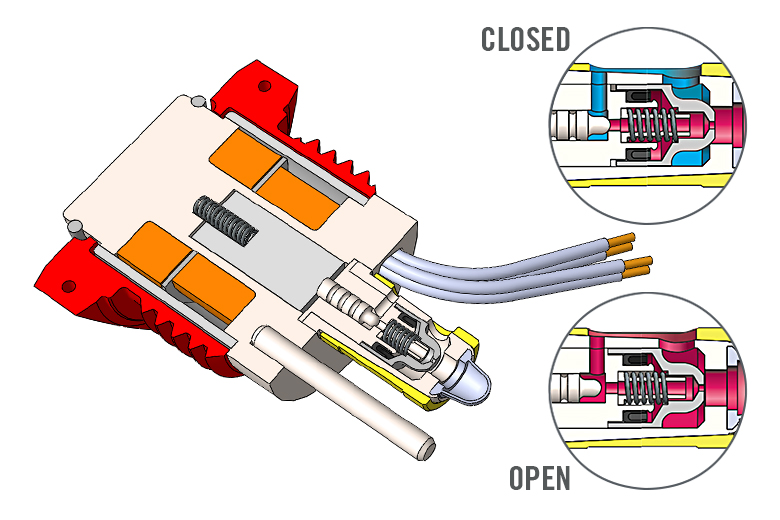

The High Flow 2-Way Dual-Coil Solenoid Valve utilizes a two-stage poppet to allow over nine times more flow when compared to our standard piloting solenoid valve. It also incorporates an additional coil to provide electrical redundancy for added safety. In exchange, the package size and weight are slightly increased when compared to the single coil configuration. This design utilizes MultiSeal® technology, eliminating the need for O-rings, simplifying port layout, and offering significant space and weight savings.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Operating Pressure | 200 - 3000 psid |
| Operating Ambient Temperature | -65°F to 275°F |
| Operating Fluid Temperature | -65°F to 275°F |
| Internal Leakage | 2 cc / Minute Max at Rated Pressure |
| External Leakage | 0 cc |

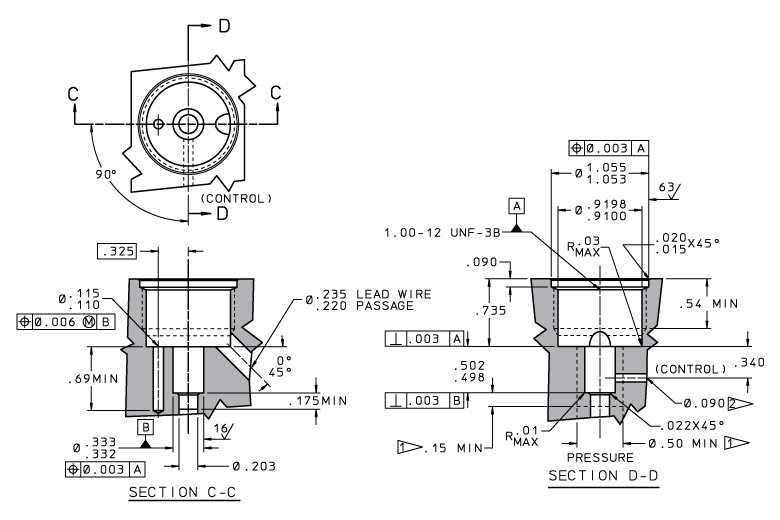

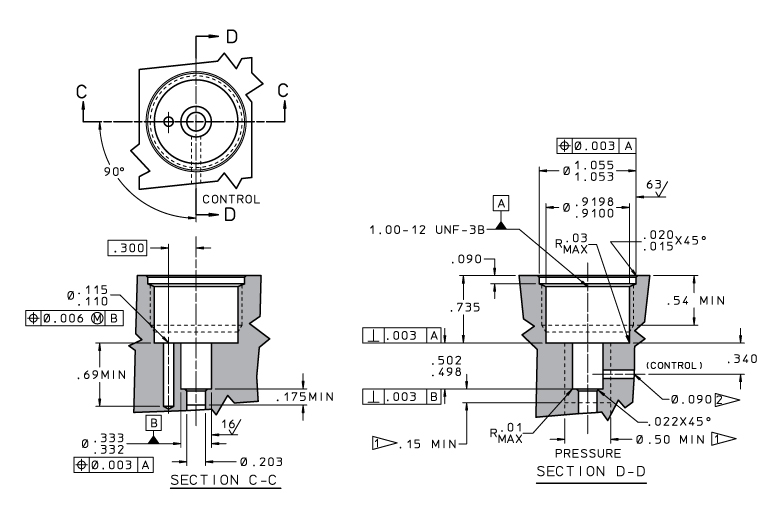

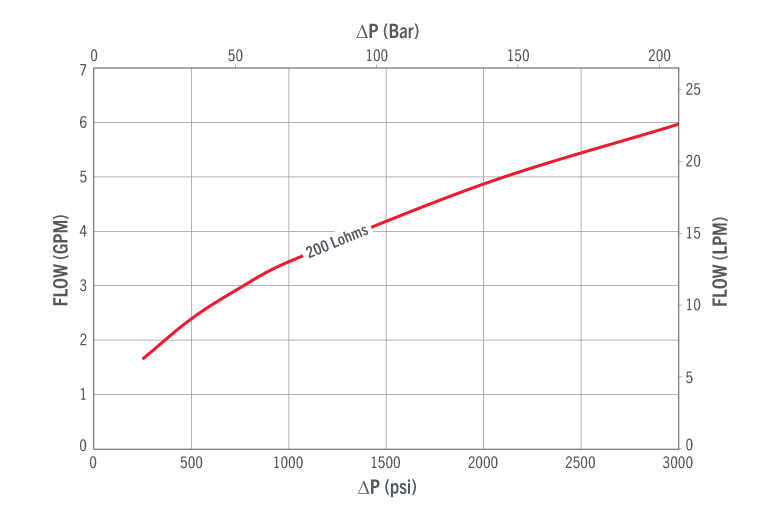

| Lohm Rate | 200 Lohms Max |
| Current Drain | 0.35 amps at 28 VDC at 70°F (9.8 Watts) |
| Max Operating Voltage | 32.2 VDC |
| Resistance | 74 - 86 Ohms at 70°F |
| Pull-In Voltage | 18 VDC Max at 275°F and 3000 psi to Either Coil |
| Dropout Voltage | 1 VDC Min at 70°F and 3000 psi with Both Coils Energized |
| Pull-In Response Time (28 VDC at 70°F and Rated Pressure) |
0.030 Seconds Max |
| Dropout Response Time (28 VDC at 70°F and Rated Pressure) |
Normally Closed Version: 0.030 Seconds Max Normally Open Version: 0.050 Seconds Max |
| Nominal Screen Hole Size | 0.004 inches |
| Weight | Lead Wire Style: 0.23 lbs Max Connector Style: 0.25 lbs Max |
| Wetted Parts | |||
| Part | Material | Specification | Finish |
| Filter Screen | 304L CRES | ASTM A666 | Passivated |
| MultiSeal | Polyamide-Imide | AMS 3670 | – |
| Valve Body and Housing | 15-5 PH CRES | AMS 5659 | Passivated |
| Poppet | 440C CRES | AMS-QQ-S-763 | Passivated |
| Pin | 440C CRES | AMS 5630 | Passivated |
| Shaft | 440C CRES | AMS-QQ-S-762 | Passivated |
| Springs | 302 CRES | AMS 5688 | Passivated |
| Spring Guide | 304 CRES | AMS-QQ-S-763 | Passivated |
| Plug and Pushrod | 303 CRES | QQ-S-763C | Passivated |
| Flanges and Plungers | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Shunt | 22-13-5 CRES | AMS 5764 | Nickel Plate / AMS 2404 |
| Shims and Spacers | 302 CRES | ASTM A666 | Passivated |
| Seal | Graphite Filled PTFE | – | – |
| Braze | Silver Alloy | AMS 4774 | Nickel Plate / AMS 2404 |
| Non-wetted parts | |||
| Part | Material | Specification | Finish |
| Cover | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Retainer | 2024 T-351 AL | AMS-QQ-A-225 / 6 | Anodize / MIL-PRF-8625 Type II |
| Retaining Ring | 302 CRES | ASTM A313 / A313M | Passivated |
| Coil | Copper Magnet Wire | NEMA MW1000 / MW16 | – |
| Coil Separator | Aramid | ANSI NEMA FI 3 | – |
| Shrink Tube | PVDF and PTFE | AMS-DTL-23053 / 8 & / 12 | – |
| Insulation Tape | Polyimide | ASTM D5213 | – |
| Solder | Sb05A | J-STD-006 | – |
| Potting Compound | Stycast 2762FT, Catalyst 17 | – | – |
| Lead Wire* | 22 AWG | SAE AS22759 / 11 | – |
| Connector Shell** | 300 Series CRES | – | Passivated |
| Connector Pins** | Gold Plated | – | – |
| Connector Seal** | Fluorosilicone Elastomer | – | – |
| Connector Sleeve** | 304 CRES | AMS-QQ-S-763 | Passivated |
| Connecting Wire** | 26 AWG | SAE AS22759 / 11 | – |
*Applicable to lead wire versions only.
**Applicable to connector versions only.
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| CUTA3320321B | MultiSeal Extraction Tool |
| CUTA3320321B | Replacement MultiSeal |
| CUTA3320121A | Test Fixture |
