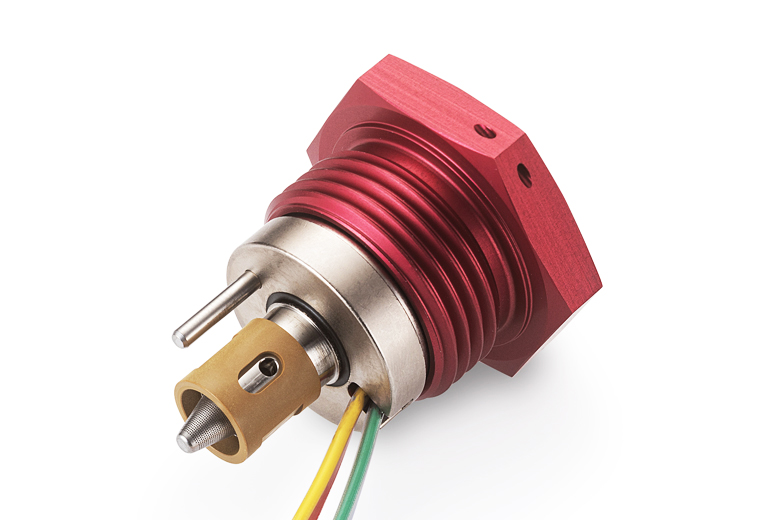

High Flow 3-Way Dual-Coil Solenoid Valve

The High Flow 3-Way Dual-Coil Solenoid Valve utilizes a two-stage poppet to allow over six times more flow when compared to the standard piloting solenoid valve. It also incorporates an additional coil to provide electrical redundancy for added safety. In exchange, the package size and weight are slightly increased when compared to the single coil configuration. This design utilizes MultiSeal® technology, eliminating the need for O-rings, simplifying port layout, and offering significant space and weight savings.

Key Product Facts
  • Lohm Rate:300 Lohms max
  • Operating Pressure:250 - 3000 psid
  • Leakage:2 cc / minute max
  • Weight:0.27 lbs max (lead wire version)
  • Two-Stage Poppet Design

Product Information

General Performance
CHARACTERISTIC SPECIFICATION
Operating Pressure 250 - 3000 psid
Operating Ambient Temperature -65°F to 275°F
Operating Fluid Temperature -65°F to 275°F
Internal Leakage 2 cc / Minute Max. at Rated Pressure
External Leakage 0 cc
Lohm Rate 300
Current Drain 0.35 amps at 28 VDC at 70°F (9.8 Watts)
Max. Operating Voltage 32.2 VDC
Resistance 74 - 86 Ohms at 70°F
Pull In Voltage 18 VDC Max. to at 275°F and 3000 psi to Either Coil
Drop Out Voltage 1.0 VDC Min. at 70°F and 3000 psi with Both Coils Energized
Pull In Response Time
(28 VDC at 70°F and Rated Pressure)
Normally Closed Version: 0.03 Seconds Max.
Normally Open Version: 0.05 Seconds Max.
Drop Out Response Time
(28 VDC at 70°F and Rated Pressure)
Normally Closed Version: 0.03 Seconds Max.
Normally Open Version: 0.05 Seconds Max.
Screen Hole Size 0.004 inches Nominal
Weight Lead Wire Style: 0.27 lbs Max.
Connector Style: 0.28 lbs Max.
Materials
Wetted Parts
Part Material Specification Finish
Filter Screen 17-4 CRES AMS 5604 or AMS 5643 Passivated
MultiSeal Polyamide-Imide AMS 3670
Housing, Pilot, and Ball Seat 15-5 PH CRES AMS 5659 Passivated
Poppets 440C CRES AMS-QQ-S-763 Passivated
Ball and Pin 440C CRES AMS 5630 Passivated
Shaft 440C CRES AMS-QQ-S-762 Passivated
Springs 302 CRES AMS 5688 Passivated
Spring Guide Si Iron BFM ASTM A867 Nickel Plate / AMS 2404
Plug and Pushrod 303 CRES QQ-S-763C Passivated
Flanges and Plungers Si Iron BFM ASTM A867 Nickel Plate / AMS 2404
Shunt 22-13-5 CRES AMS 5764 Nickel Plate / AMS 2404
Shims and Spacers 302 CRES ASTM A666 Passivated
Seals Graphite Filled PTFE
Seal Keeper 416 CRES QQ-S-763C Passivated
Braze Silver Alloy AMS 4774 Nickel Plate / AMS 2404
Non-Wetted Parts
Part Material Specification Finish
Cover Si Iron BFM ASTM A867 Nickel Plate / AMS 2404
Retainer 2024 T-351 AL AMS-QQ-A-225 / 6
Anodize / MIL-PRF-8625 Type II
Retaining Ring 302 CRES ASTM A313 / A313M Passivated
Coil Copper Magnet Wire NEMA MW1000 / MW16
Coil Separator Aramid ANSI NEMA FI 3
Shrink Tube PVDF and PTFE AMS-DTL-23053 / 8 & / 12
Insulation Tape Polyimide ASTM D5213
Solder Sb05A J-STD-006
Potting Compound Stycast 2762FT, Catalyst 17
Lead Wire* 22 AWG SAE AS22759 / 11
Connector Shell** 300 Series CRES Passivated
Connector Pins** Gold Plated
Connector Seal** Fluorosilicone Elastomer
Connector Sleeve** 304 CRES AMS-QQ-S-763 Passivated
Connecting Wire** 26 AWG SAE AS22759 / 11

*Applicable to lead wire versions only.

**Applicable to connector versions only.

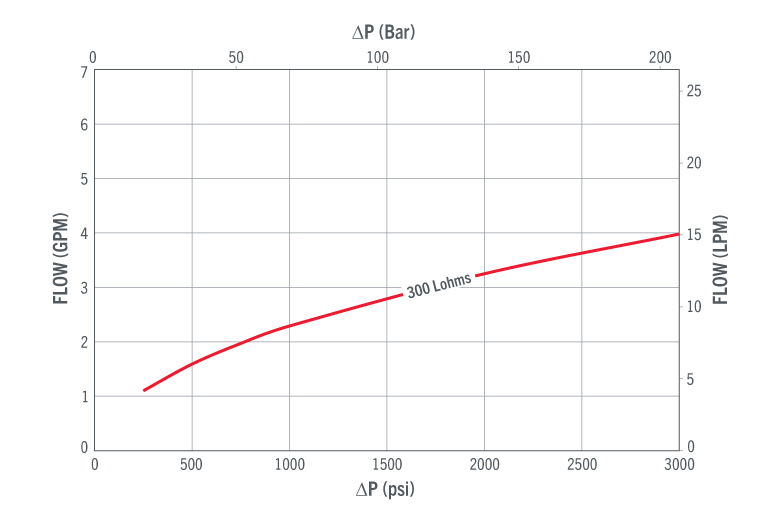

Flow Curve

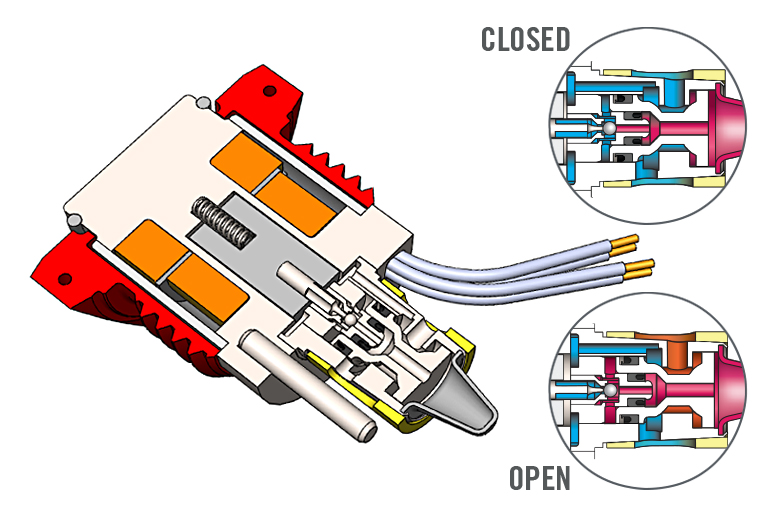

Cross Section View

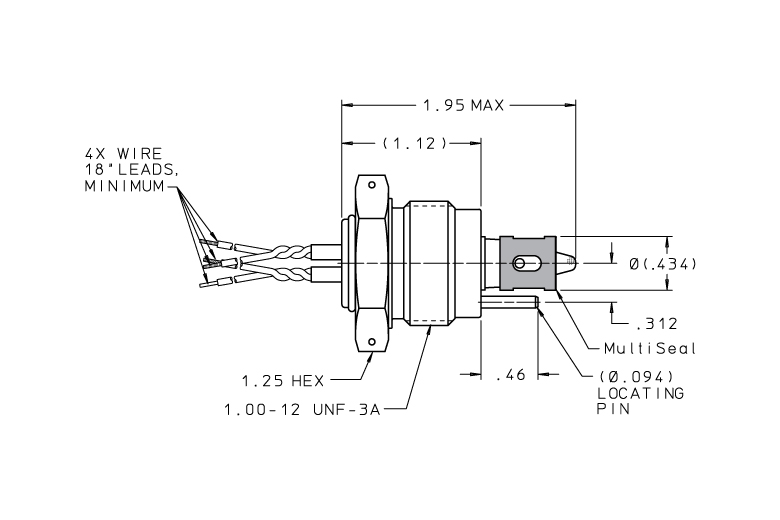

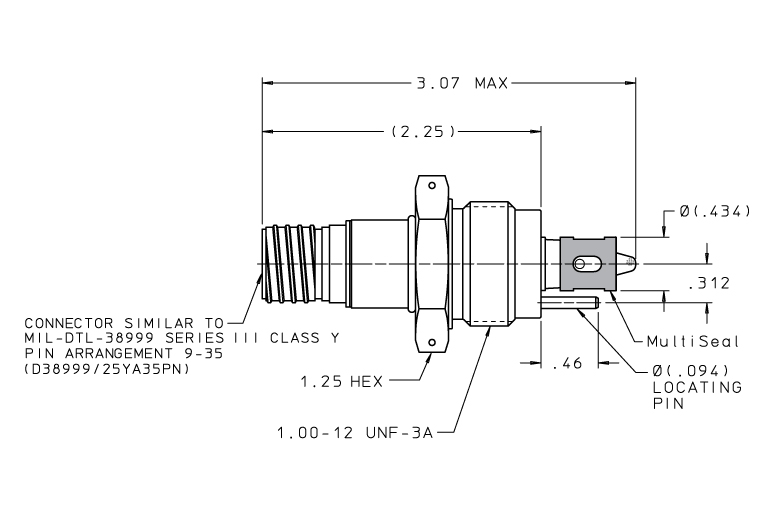

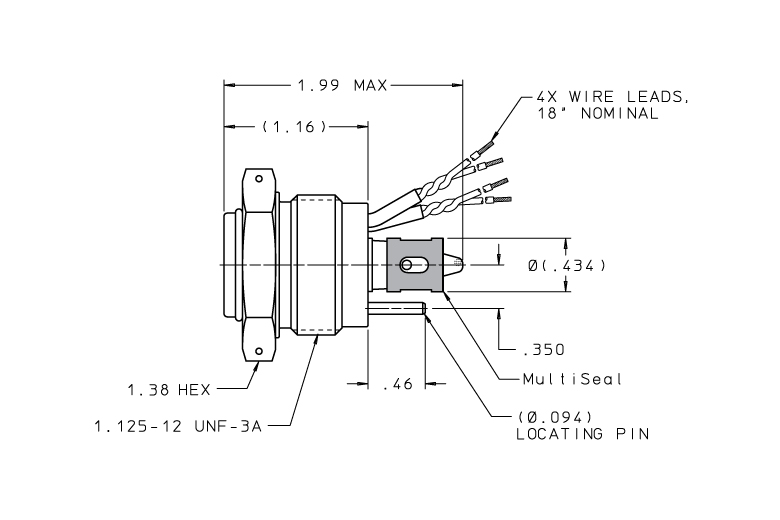

Dimensional Views

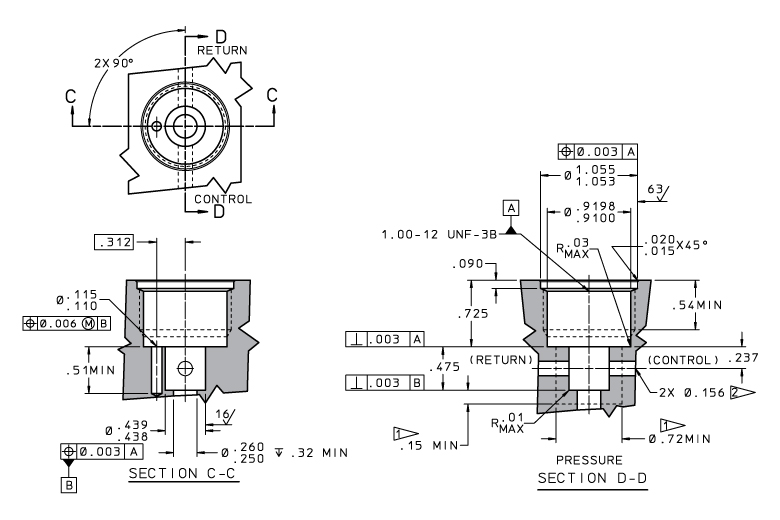

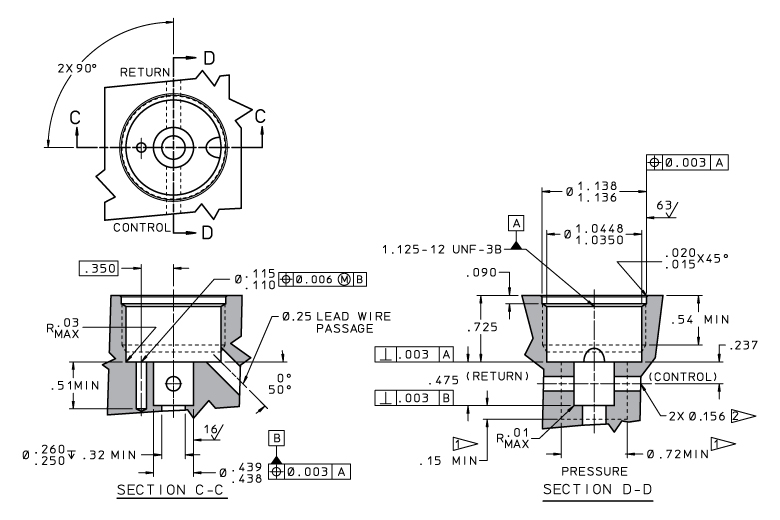

Mounting Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Part Number Rated Pressure (psi) Test Fluid Configuration Electrical Interface Request Information
SDHB4332002A 3000 Skydrol Normally Open Lead Wire Front Request
SDHB4332002B 3000 Skydrol Normally Open Lead Wire Rear Request
SDHB4332002E 3000 Skydrol Normally Open Connector Request
SDHB4332003A 3000 Skydrol Normally Closed Lead Wire Front Request
SDHB4332003B 3000 Skydrol Normally Closed Lead Wire Rear Request
SDHB4332003E 3000 Skydrol Normally Closed Connector Request
SDHB4332012A 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Open Lead Wire Front Request
SDHB4332012B 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Open Lead Wire Rear Request
SDHB4332012E 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Open Connector Request
SDHB4332013A 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Closed Lead Wire Front Request
SDHB4332013B 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Closed Lead Wire Rear Request
SDHB4332013E 3000 MIL-PRF-5606 or MIL-PRF-83282 Normally Closed Connector Request

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA4330221B MultiSeal Extraction Tool
CUTA4330121B MultiSeal Removal Tool
SDBB4330108A Replacement MultiSeal
CUTA4330121A Test Fixture
