Solenoid Valves

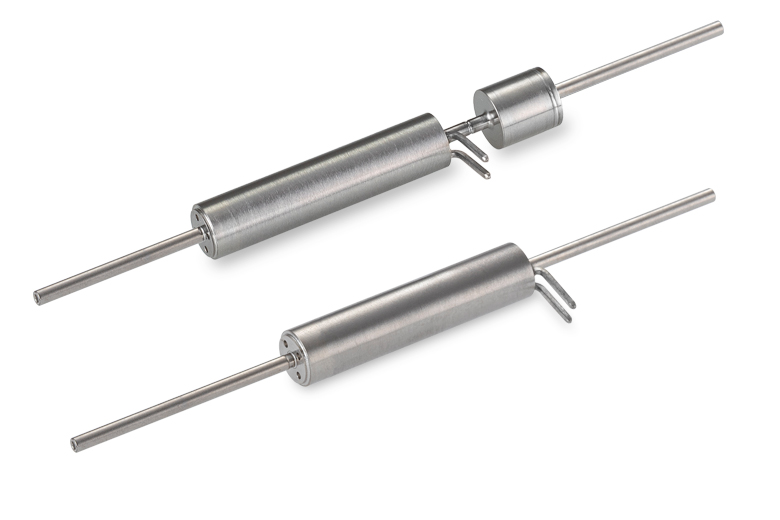

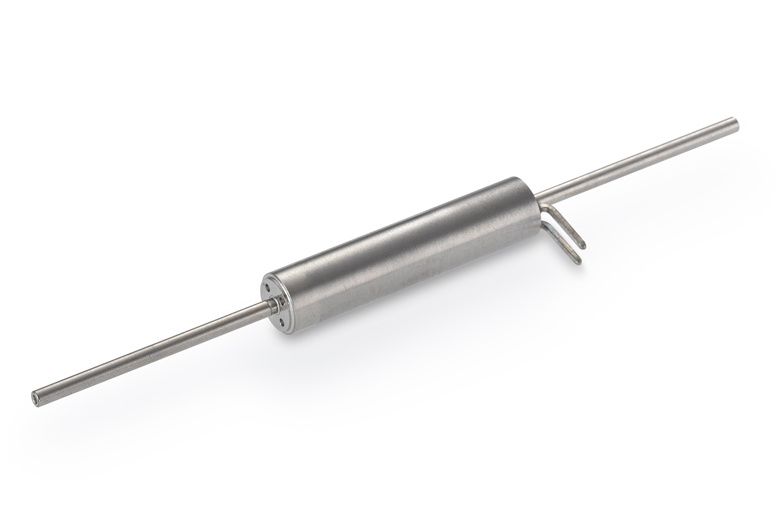

IEP Series 2-Way Dispense Solenoid Valves

Overview: 2-Way, 6mm Axial Flow Extended Performance Dispensing Solenoid Valves.

Description: IEP Series 2-way axial flow solenoid valves are designed to perform consistently under conditions that are far more demanding than typical high-speed dispensing applications. Featuring a welded stainless steel construction, these robust 6 mm valves can operate under higher pressure (800 psig) and temperature environments (up to 275°F). IEP valves offer response times as fast as 500 μs and can generate droplets at 500 Hz. This high-speed operation also enables accurate flow metering, acting as a replacement for some pressure regulators. In addition, the valve’s inlet and outlet ports can be connected to numerous fitting systems.

Features:
  • Compact Size: Less Than 6.5 mm Diameter
  • Operating Pressures up to 800 psig
  • Operating Temperatures up to 275°F (135°C)
  • Response times as fast as 500 µs
  • Light Weight: 4.7 grams
  • Low Internal Volume: 62 µL

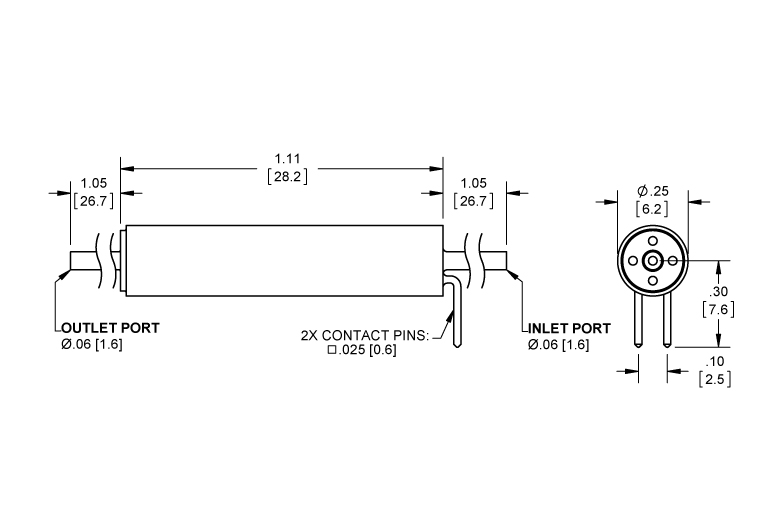

CAD Envelopes:
Part Numbers:
IEPA1211141H, IEPA1211241H, IEPA1211541H, IEPA1221141H, IEPA1221541H, IEPA2411141H, IEPA2411241H, IEPA2411541H, IEPA2421141H, IEPA2421541H
