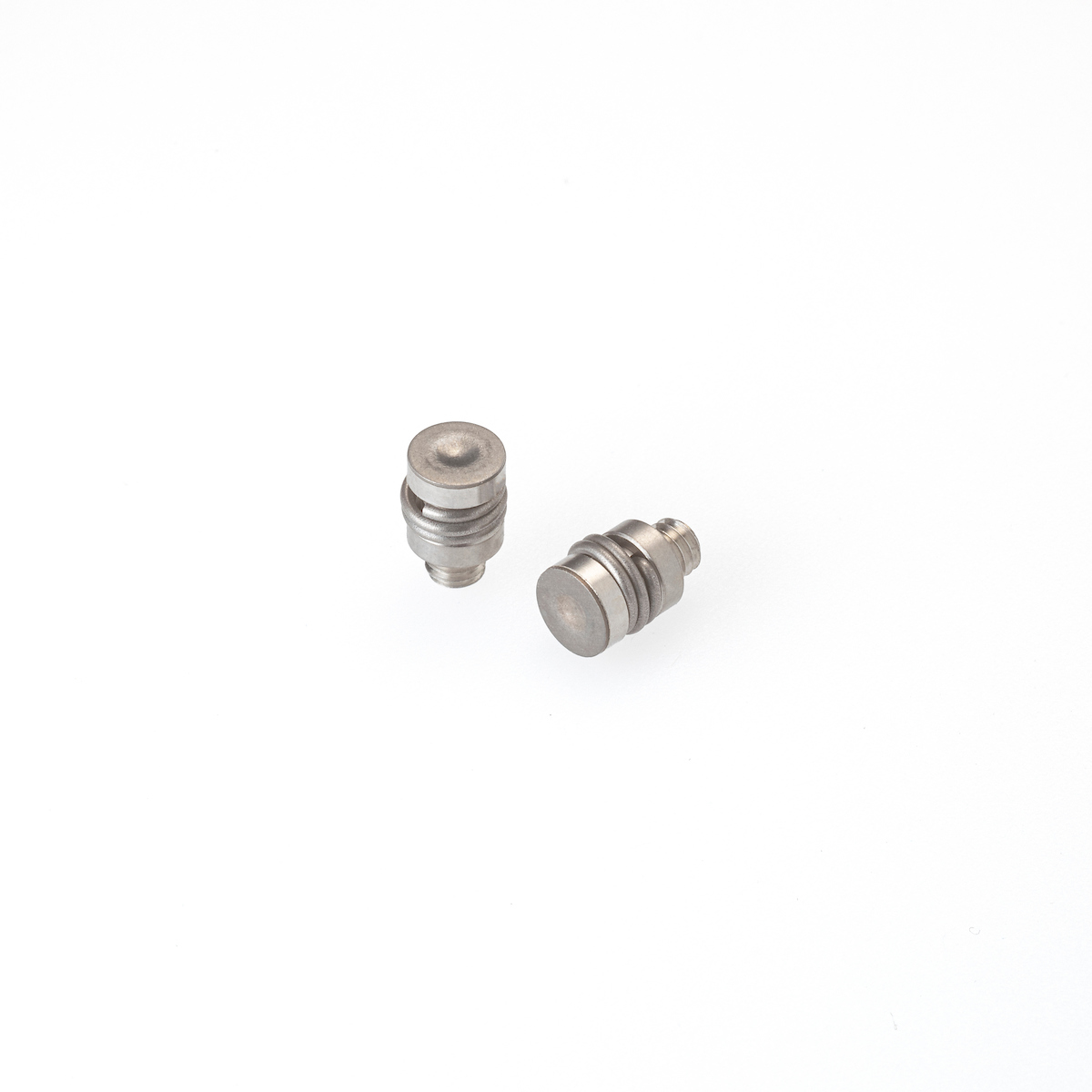

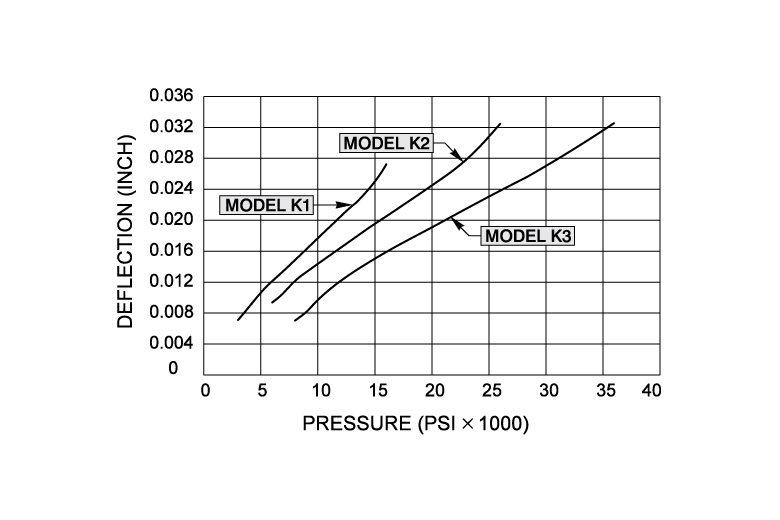

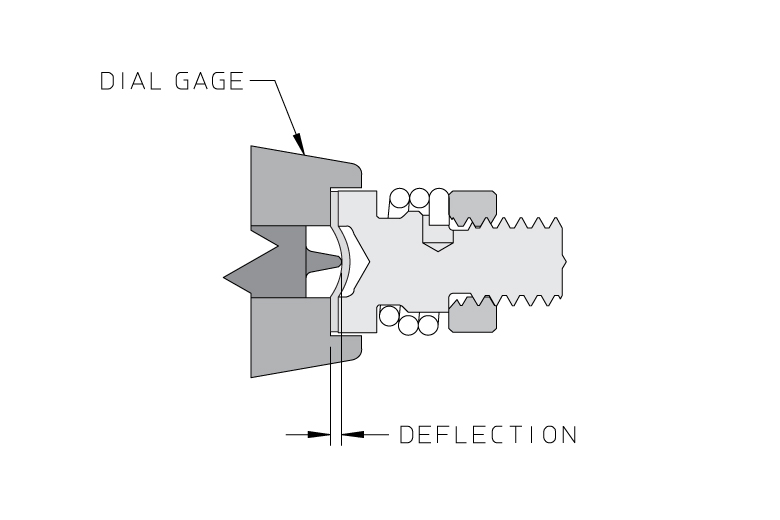

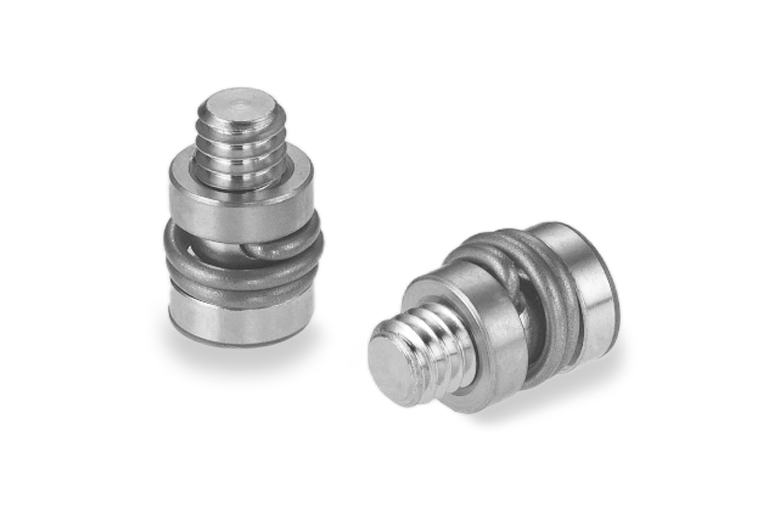

This miniature peak pressure recorder contains a pressure sensitive disc which permanently and irreversibly deforms a calibrated amount in relation to the peak pressure sensed. By simply measuring the deformation of the disc, the peak pressure can be determined from its deflection versus pressure graph. While its accuracy doesn’t replace sophisticated electronics, the Kipster Peak Pressure Recorder offers unique design opportunities where other expensive and bulky options are inappropriate.
| PART | MATERIAL |
|---|---|
| Body and Spring | CRES |
| Sensing Element | Inconel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| RTTA1870100 | Installation / Extraction Tool Set |
| RTTA1870150 | Dial Gauge and Calibration Block Tool Set Part Number |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
