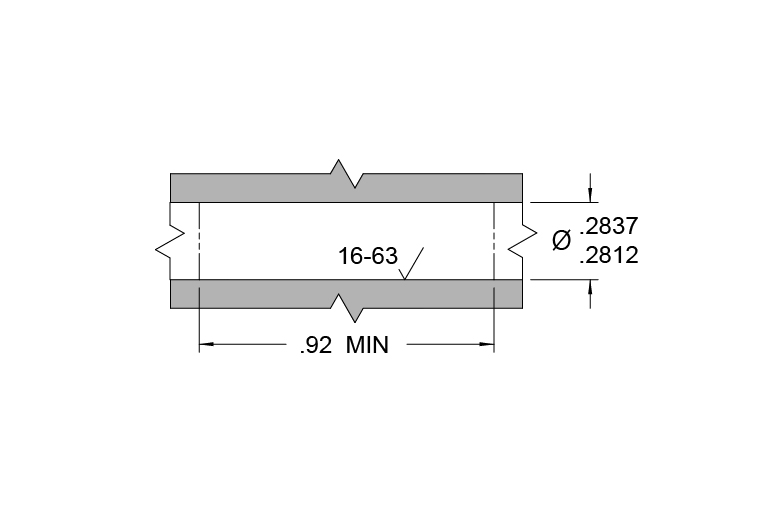

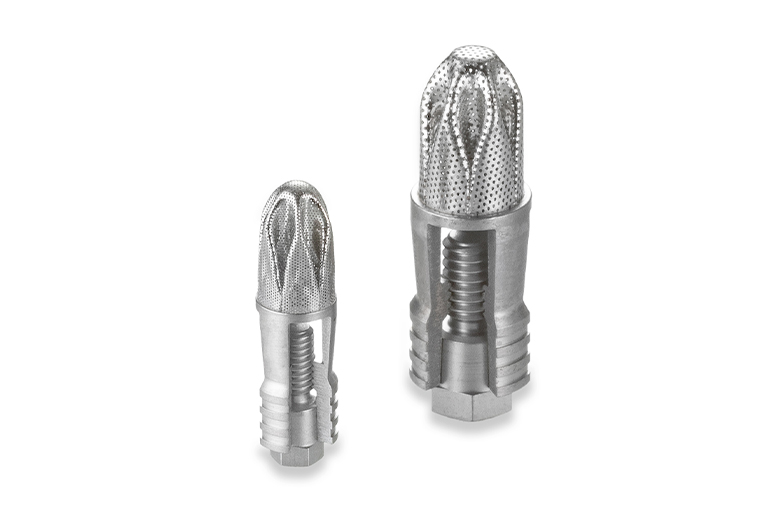

Lee Etched Safety Screens feature a seamless, one-piece, 304L CRES screen element formed with pleats to greatly increase the dirt carrying capacity of the screen. The result is a robust screen design with an optimum amount of protection in a small package. Lee etched safety screens are offered with several standard hole sizes including 75, 100, 150, 200, 250, 380, and 500 microns. Lee L-4 Etched Safety Screens combine a Lee expansion end with a robust, one-piece screen element. Featuring three locking fingers that are expanded outward locking the screen in a fluid passageway, this allows for a low cost installation hole where no support shoulder is required. In addition, the L-4 technique permits easy removal for inspection or cleaning. Lee L-4 Etched Safety Screens are available in two different body diameters, 0.187″ and 0.281″.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

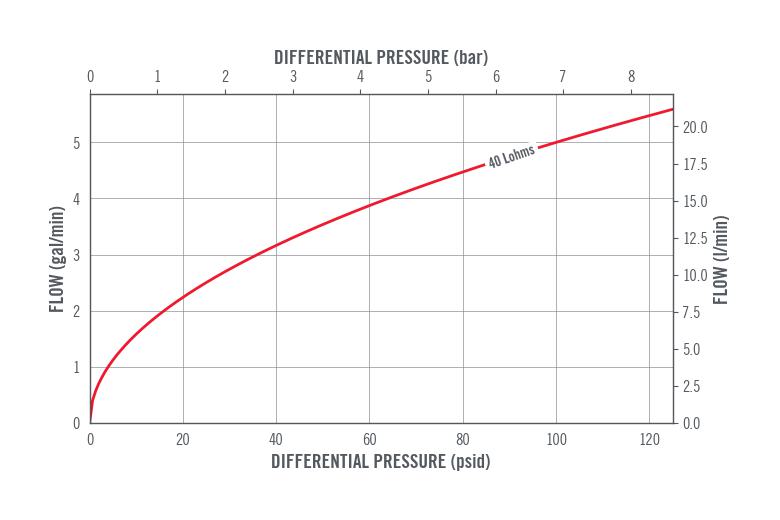

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
