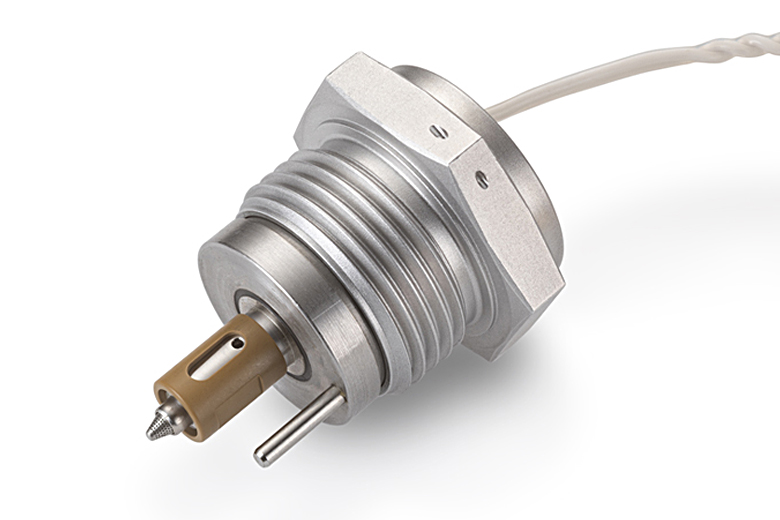

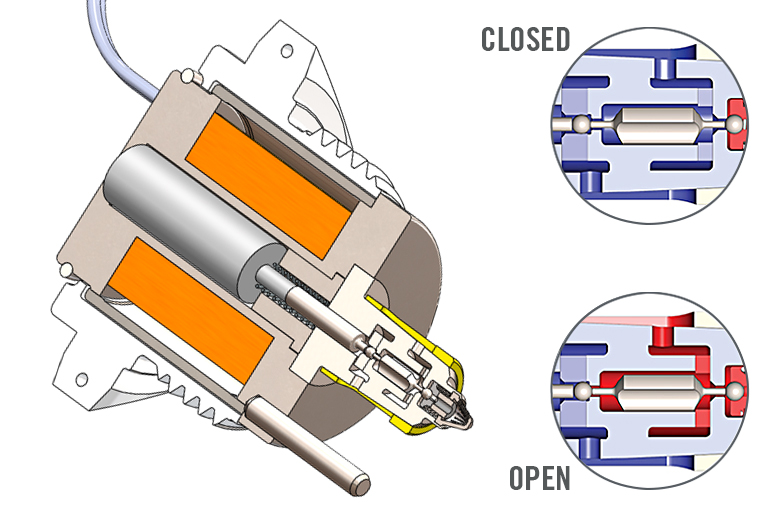

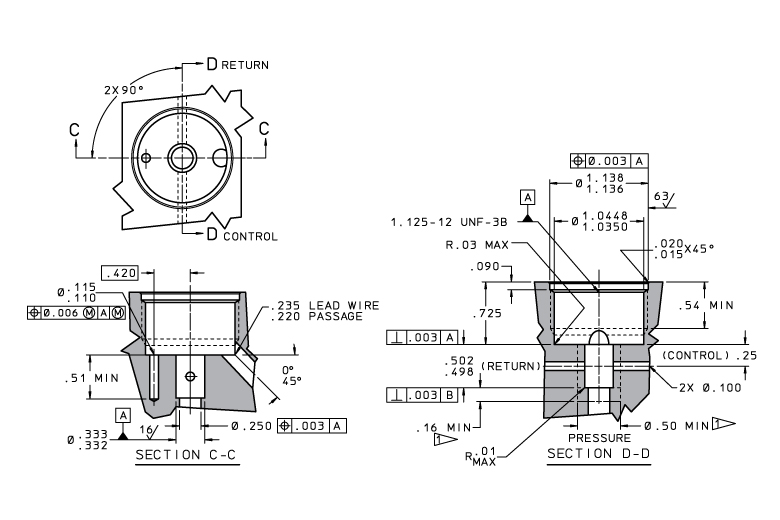

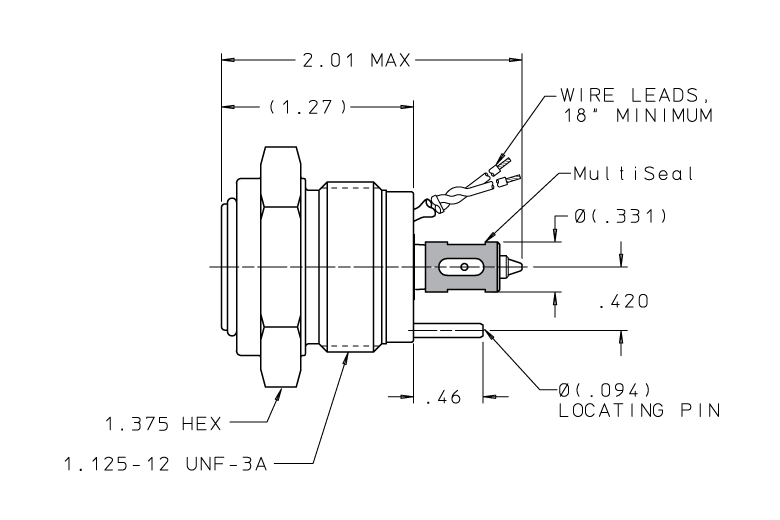

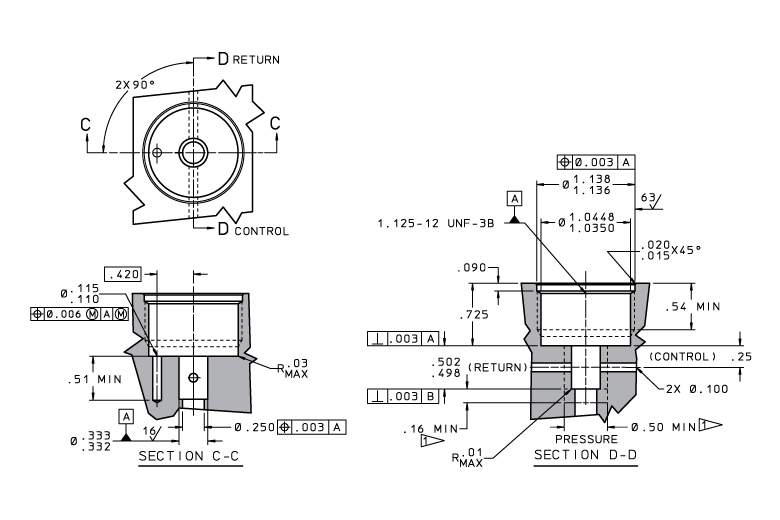

The PTC Solenoid Valve is a pressure-to-close design that ensures the control port remains isolated from the pressure source to help safeguard against any unexpected system conditions. This design offers the added performance benefit of reduced leakage. In exchange, there is a reduction in flow capacity and the package size and weight are slightly increased when compared to the standard piloting solenoid valve. This design utilizes MultiSeal® technology, eliminating the need for O-rings, simplifying port layout, and offering significant space and weight savings.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Operating Pressure | 3000 - 5000 psid |
| Operating Ambient Temperature | -65°F to 275°F |
| Operating Fluid Temperature | -65°F to 275°F |
| Internal Leakage | De-Energized: 0.5 cc / Minute Max at 5000 psid Energized: 2.0 cc / Minute Max at 5000 psid |
| External Leakage | 0 cc |

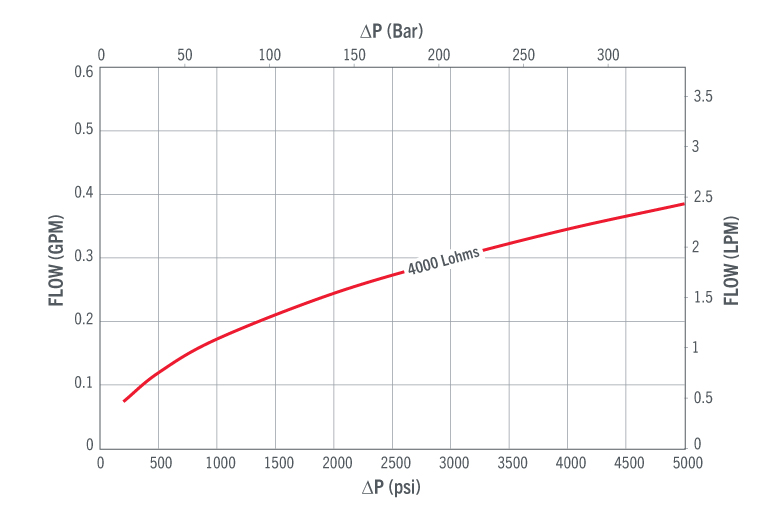

| Lohm Rate | 4000 Lohms |
| Current Drain | 0.35 amps at 28 VDC at 70°F (9.8 Watts) |
| Max Operating Voltage | 32.2 VDC |
| Resistance | 76 - 84 Ohms at 70°F |
| Pull-In Voltage | 18 VDC Max at 275°F and 3000 psi |
| Dropout Voltage | 1 VDC Min at 70°F and 3000 psi |
| Pull-In Response Time (28 VDC at 70°F and Rated Pressure) |
0.035 Seconds Max |
| Dropout Response Time (28 VDC at 70°F and Rated Pressure) |
0.035 Seconds Max |
| Nominal Screen Hole Size | 0.004 inches |
| Weight | 0.35 lbs Max |
| Wetted Parts | |||
| Part | Material | Specification | Finish |
| Filter Screen | MP35N | AMS 5844 (Chem. Only) | – |
| MultiSeal | Polyamide-Imide | AMS 3670 | – |
| Body and Pin | MP35N | AMS 5844 (Chem. Only) | – |
| Ball Guide and Ball Carrier | MP35N | AMS 5844 (Chem. Only) | – |
| Ball | 440C CRES | AMS 5630 | Passivated |
| Shaft and Shaft Guide | MP35N | AMS 5844 (Chem. Only) | – |
| Springs | 302 CRES | AMS 5688 | Passivated |
| Spring Guide | Ferritic Stainless Steel | – | Passivated |
| Pushrod | MP35N | AMS 5844 (Chem. Only) | – |
| Flanges and Plungers | Ferritic Stainless Steel | – | Passivated |
| Shunt | 22-13-5 CRES | AMS 5764 | Nickel Plate / AMS 2404 |
| Shims and Spacers | 302 CRES | ASTM A666 | Passivated |
| Washer | MP35N | AMS 5844 (Chem. Only) | – |
| Braze | Silver Alloy | AMS 4774 | Nickel Plate / AMS 2404 |
| Non-Wetted Parts | |||
| Part | Material | Specification | Finish |
| Cover | Ferritic Stainless Steel | – | Passivated |
| Retainer | 2024 T-351 AL | AMS-QQ-A-225 / 6 |
Anodize / MIL-PRF-8625 Type II
|
| Retaining Ring | 302 CRES | ASTM A313 / A313M | Passivated |
| Coil | Copper Magnet Wire | NEMA MW1000 / MW16 | – |
| Shrink Tube | PVDF and PTFE | AMS-DTL-23053 / 8 & / 12 | – |
| Insulation Tape | Polyimide | ASTM D5213 | – |
| Solder | Sb05A | J-STD-006 | – |
| Potting Compound | Stycast 2762FT, Catalyst 17 | – | – |
| Lead Wire | 22 AWG | SAE AS22759 / 11 | – |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| CUTA3320221B | MultiSeal Extraction Tool |
| SDBB3320108A | Replacement MultiSeal |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
