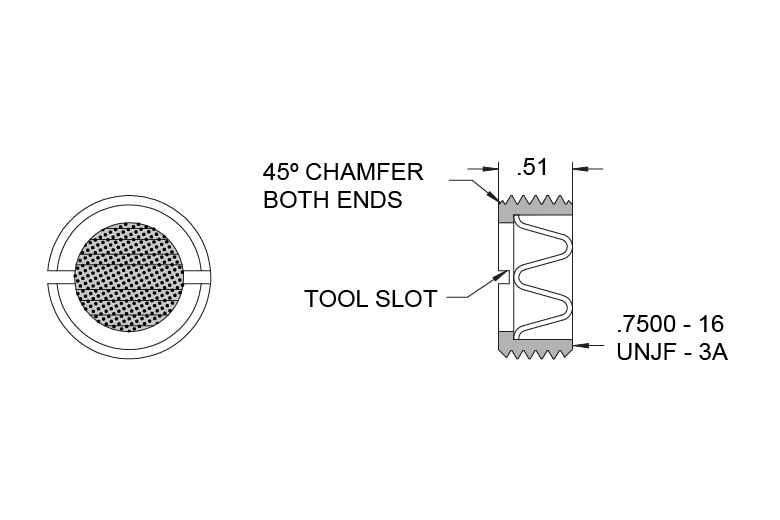

Lee Boss Mount Strainers offer coarse level filtration in a compact, low profile design. Manufactured from 304L stainless steel, the boss mount strainers feature a robust design with a single piece screen element that can withstand differential pressures up to 500 psid without rupture. In addition, the corrugated screen design provides maximum open area for increased dirt holding capacity. Lee Boss Mount Strainers are available in 6 different thread sizes ranging from 0.750″ to 1.875″. With an integral tool slot, these strainers can be easily installed and removed for inspection. In addition, standard screen hole sizes include 0.038″ and 0.062″, making the Boss Mount Strainers ideal for lubrication systems or any other systems requiring coarse filtration.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

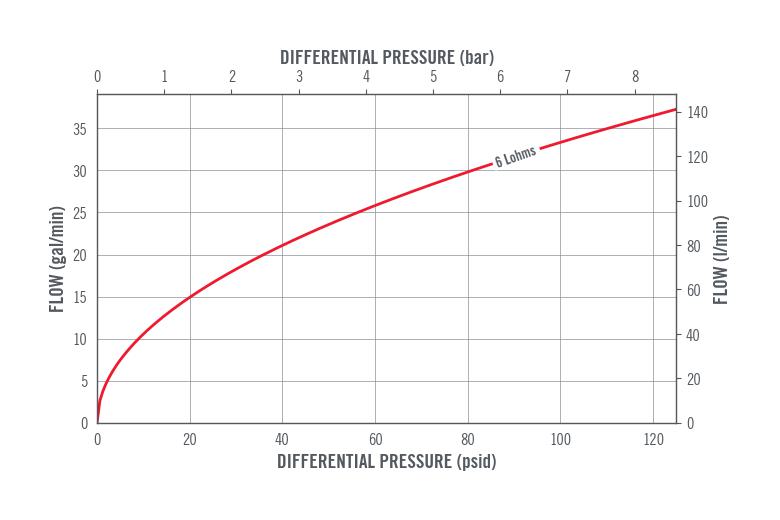

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
