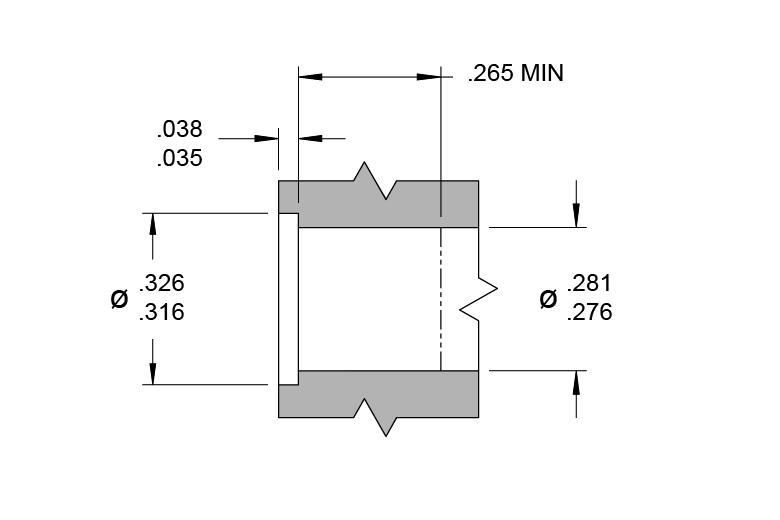

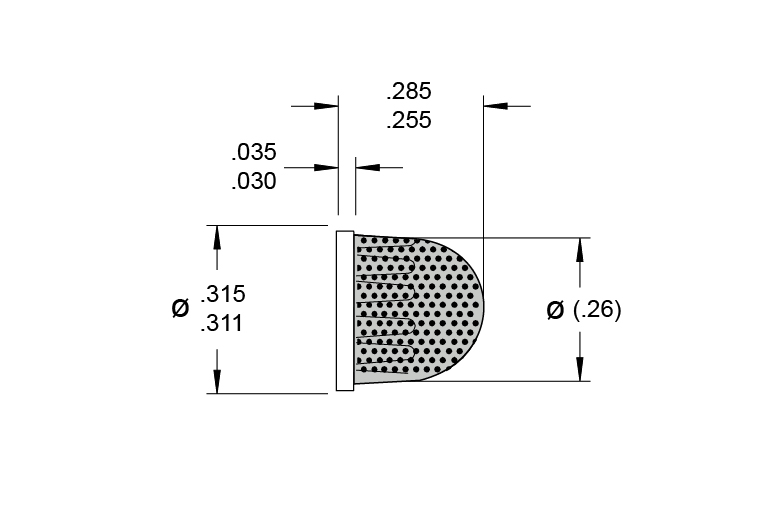

Overview: 316 CRES low micron wire mesh safety screen with 0.312" diameter flange for installation

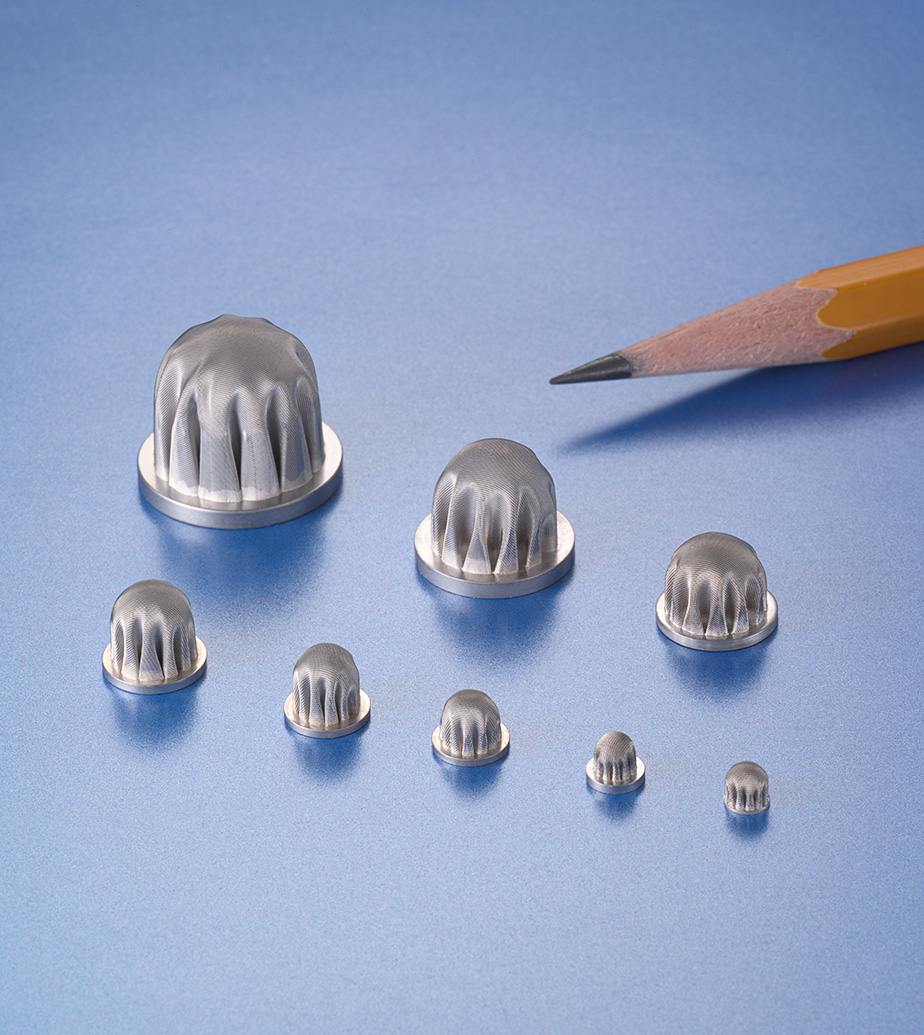

Description: Lee Series 10 and 20 Safety Screens offer 10 and 20 micron hole sizes, respectively, in a compact, flange mount design. These robust screens incorporate a rugged, calendered, and sintered 316L stainless steel wire mesh weave for maximum strength. Manufactured using a proprietary process, Lee Series 10 and 20 screens feature a seamless design containing radial convolutions that greatly increase the contamination carrying capacity of the screen. The result is a high strength screen with an optimum amount of protection, in a small package.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.

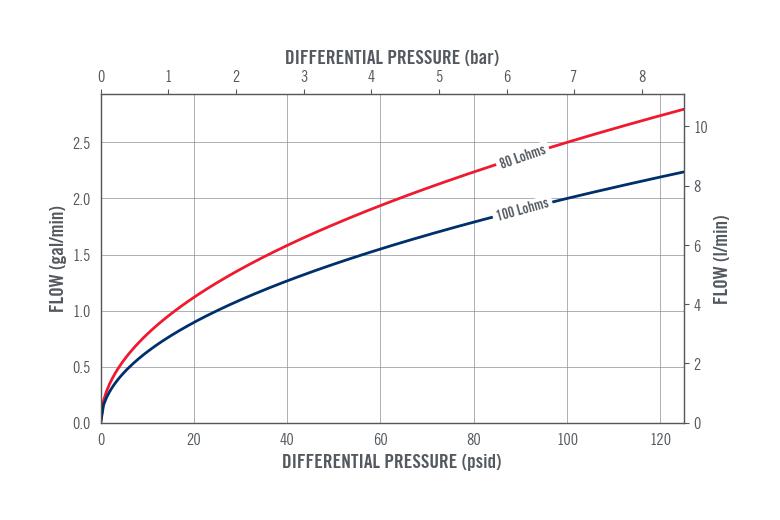

Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
