Control Valves

Browse Control Valves
Control Valves for Other Industries

Miniature Control Valve Designs for Other Applications

Control valves are used to flow air or gas through pneumatic equipment. Our designs are available in 2-way or 3-way configurations and different mounting styles, and their compactness makes them ideal for portable devices. In addition, we offer magnetically-latching solenoid valves that consume far less power, which helps conserve energy in battery-powered applications.

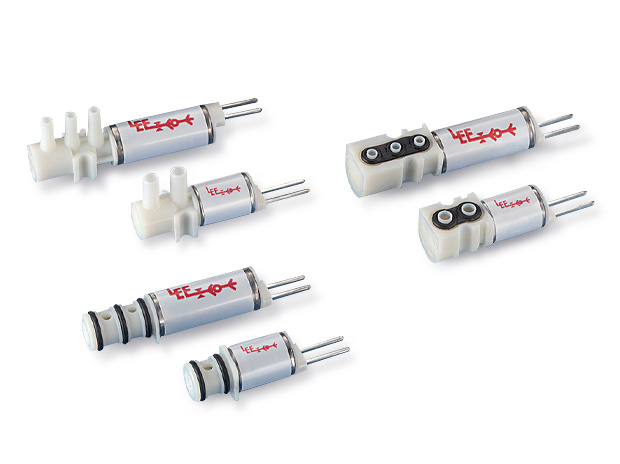

LHD Series

LHD Series valves are compact, 7 mm control solenoid valves that offer superior performance across an extensive cycle life. With a flow capacity of up to 450 Lohms, power as low as 550 mW, and leakage less than 50 µLPM, these valves maximize control performance without compromising reliability.

Learn More: 2-way lhd series

Learn More: 3-way lhd series

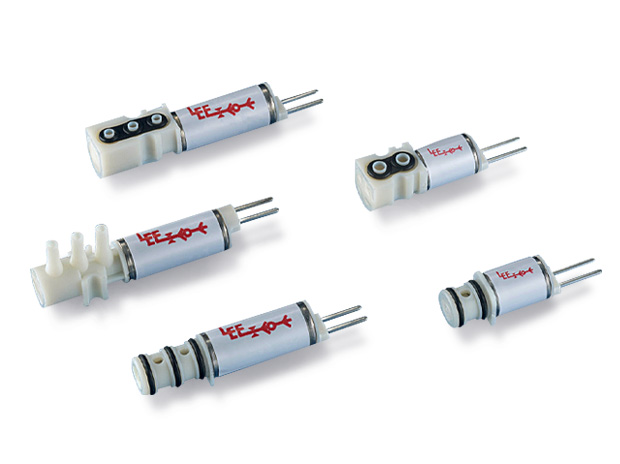

LHL Series

LHL Series valves are compact, 7 mm magnetically latched control solenoid valves that feature ultra-low power consumption (as low as 5.5 mJ/switch) and low heat dissipation. Ideal for battery-powered applications flowing air or gas, these valves require only momentary pulses (10-30 ms) of current to switch to and remain in each flow state. While being held in a specific flow state for an extended period of time, these valves don’t consume power, generate heat, or produce electrical noise. In addition, LHL Series valves provide reliable bi-stable switching performance in the smallest footprint possible.

Learn More: latching 2-way lhl series

Learn More: latching 3-way lhl series

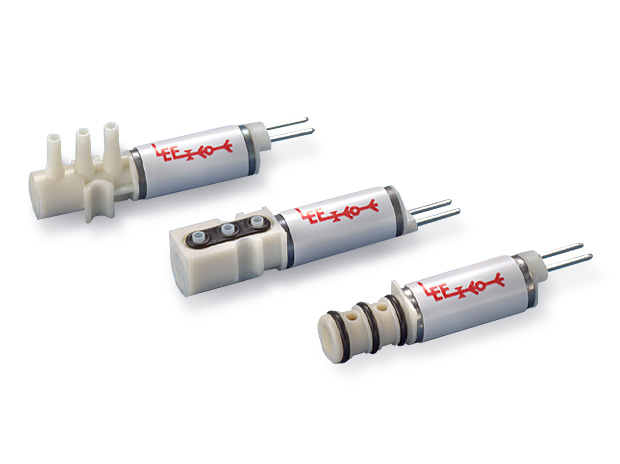

LHQ Series

LHQ Series valves are compact, 7 mm quiet operation control solenoid valves that feature whisper technology to reduce actuation noise. When a typical solenoid valve is energized, there is an inherent clicking sound caused by the metal-to-metal contact of the moving armature and stationary core. With a low sound profile that is 50% quieter (≤ 37 dBA) than our already best-in-class LHD Series solenoid valve, this reliable design is ideal for bedside applications flowing air or gas.

Learn More
Browse Control Valves

Product Finder

Looking for a control valve? Use the Product Finder to guide you to configurations that meet your requirements and gain access to detailed product information such as dimensions, performance specifications, CAD models, and more!
