Key Factors in Choosing a Valve to Improve Satellite Life and Propulsion

Propellant supply plays a significant role in a satellite’s operational life. Optimizing satellite design for longevity is a critical step before any mission. A high-performing isolation valve can help conserve charged pressure and extend the life of a satellite by creating an active barrier between the tank and the rest of the feed system.

Propulsion Efficiency: a Critical Factor IN DETERMINING Satellite Life

Satellite systems require high pressure tanks to store propellant and use it as needed. For those using a gas, pressure in the tank decreases with each use. The tank must be reliably sealed throughout the pressure range when the propellant is not used. The amount of propellant in the tank represents the life of the satellite. If the tank leaks, the satellite will soon be dead in space. Whether propelled by chemical or electrical means, satellites must compensate for the expected fluid loss due to leakage by increasing the volume carried into orbit. Ordinarily, this would require larger or higher-pressure tanks.

As higher pressures require thicker walls, traditional solutions may add considerable weight to the system, thereby increasing launch costs overall. If launch costs are capped, the mission life must be de-rated to account for any leakage that may occur throughout the life of the satellite. A better solution is to use a small, reliable isolation valve with minimal leakage to act as a barrier between the tank and the rest of the system until flow is desired.

Challenges During Satellite LAUNCH

Whether intended to operate in low earth (LEO), middle earth (MEO), or global earth orbit (GEO), the most volatile moment in the life of a satellite occurs before it is even turned on. A satellite experiences very high gravitational forces due to vibration during launch. While all components of the satellite must be able to survive these extreme conditions in order to perform their intended functions, an isolation valve—what could in this case be functionally called a barrier valve—must overcome an additional hurdle: staying closed.

The isolation valve is a critical component within a satellite that is designed to remain closed even in the most severe environments. A common application for this type of valve is in the gas feed system for Hall-effect thrusters (HET), which utilize propellants such as xenon and krypton to guide the satellite to orbit. Once there, any failure by the propulsion system could disable the satellite or greatly reduce its mission. A reliable, lightweight, and reusable isolation valve can be utilized as a barrier or isolation valve to mitigate such failures.

What OTHER Factors should be considered when selecting a valve for satellite propulsion?

When selecting an isolation valve, an engineer must consider typical specifications such as flow capacity, temperature, and whether redundant coils are needed for added reliability within their system. For isolation valves used within satellite applications, the following factors should also be examined to account for unique environmental challenges:

1. Leakage — As the main function of an isolation valve is to prevent the flow of fluid from the tank until expressly needed, the ability to avoid unwanted leakage is an imperative selection requirement. A pyrotechnic valve can technically be used as a single-use alternative option to the isolation valve. While this valve provides zero leakage, it is a single-use product that cannot be closed once utilized.
2. Operating Pressure Range — A satellite tank is initially charged to a very high pressure. As propellant is used throughout the life of the satellite, this pressure gradually decreases until it is no longer great enough for the feed system to work. An isolation valve needs to be able to open, close, and maintain leak-tight performance throughout this pressure spectrum.
3. Life Cycle — Life cycle requirements of satellite isolation valves range from hundreds to hundreds of thousands of cycles under varying pressure conditions. To provide exceptional leakage performance through these cycles, the materials of an isolation valve must be chosen carefully.
4. Envelope — As with any payload launched into space, reducing weight reduces launch costs. Also, isolation valves must be mounted on the satellite, where space is limited. Therefore, special awareness should be given to envelope size and weight specifications. Some isolation valves have large coils that extend out from their housing, increasing the size and weight. Moving the center of mass away from the manifold can negatively impact the valve’s performance in vibration.
5. Vibration — While satellites do not experience vibrational loads in orbit they can be exceedingly high during launch. The isolation valve must be designed to remain closed under these extreme levels of vibration. If it cannot, the fuel tank could deplete before the satellite ever reaches space. Vibration is often specified with a root mean-square acceleration (grms) value. System design engineers should ensure the force-margin of the isolation valve (or the forces holding the valve closed divided by the forces trying to open the valve) are high enough to handle peak vibration, not just the average.
6. Power Draw — While power is readily available in space, a means of cooling is not. An isolation valve opens frequently (and, in some cases, for long periods of time). Maximizing efficiency and limiting power draw from this valve helps to limit the need for active cooling. A latching isolation valve could also be considered.
7. Fluid Compatibility — Inert gases are used for many electric and ion-based propulsion systems; reactive fluids are often used in chemical propulsion systems. Whether using hydrogen, oxygen, or more reactive propellants, care should be taken to ensure that all materials are compatible and handled appropriately.
8. Response Time — As nothing can happen until the isolation valve is open, response time (the time it takes for the isolation valve to open or close once commanded) can be a significant consideration. Delays in closing may cause wasted flow.

OUR RECOMENDATION: SOLENOID OPERATED PNEUMATIC ISOLATION VALVES

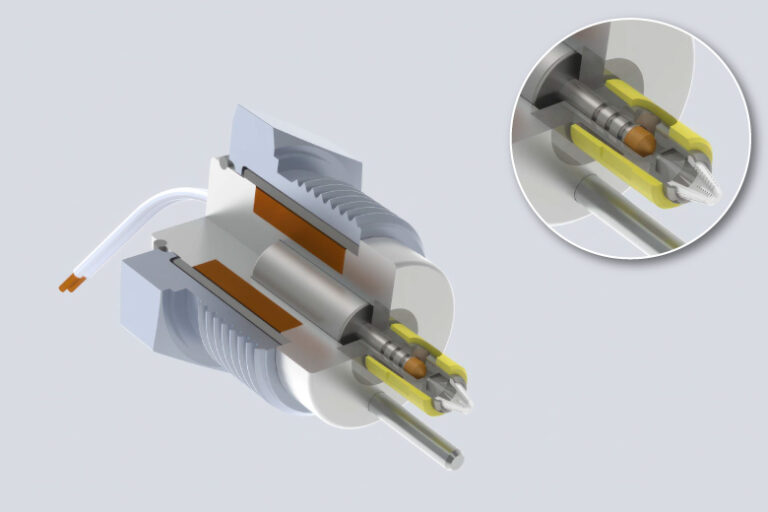

The Lee Company’s Solenoid Operated Pneumatic Isolation Valves feature a polyimide shaft tip to ensure a leak tight seal as tight as 1×10^-6 standard cubic centimeters per second (sccs) on Helium. These pneumatic isolation valves draw upon the design elements of The Lee Company’s field-tested line of piloting solenoid valves, historically recognized for their use within aircraft, weapon, launch vehicle, and satellite systems.

Lightweight and efficient, the smallest package weighs less than 0.14 lbs (2.24 oz). Utilizing a direct acting design that does not require pressure assistance to open, the valve flows up to 200 SLPM of air at 200 psi differential (3000 psia tank pressure). The 60-Ohm solenoid coil requires less than 4.2 watts to open the valve.

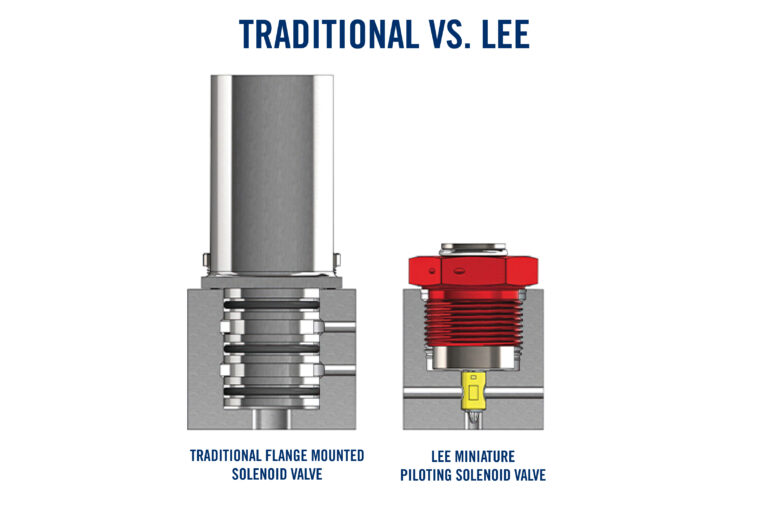

The Lee MultiSeal^® radically simplifies port layout of these valves, providing reduced machining costs and superior reliability over traditional sealing methods. The space and weight savings directly translate to reduced fuel costs. Low power requirements, wide operating temperature and pressure ranges, and material compatibility have made this configuration the ideal solution for a wide range satellite systems.

Features readily available for your testing:

• Latching: By incorporating permanent magnets into the coil design, a dramatic reduction in overall power consumption can be achieved particularly when operating with extended “ON” periods. Unlike traditional designs that require continuous voltage to energize the valve from its natural state, a latching solenoid requires only a momentary pulse of less than a joule to switch to and remain in state.
• Pressure Range: This design can accommodate pressures up to 10,000psi, more than enough to seal the highest pressure tanks used in satellite systems.
• Life: Variants with reduced seat stresses have survived over one million cycles.
• Materials: A wide range of materials are available to ensure optimal compatibility with fluids in use.
• Dual Coil: A redundant coil can be added to maximize the reliability of the solenoid.

How Can The Lee Company Help You Choose the RIGHT ISOLATION Valve?

At The Lee Company, we specialize in transforming complex problems into deliverable solutions. As a world leader in miniature precision fluid control technology since 1948, we supply millions of products worldwide for industries including aerospace, automotive, diagnostics, industrial, medical equipment, scientific instruments, motorsports, and more. Our aerospace products are produced in our state-of-the-art manufacturing facility in Connecticut, USA. We pride ourselves on our unwavering commitment to quality, research, development, and continuous innovation. This enables our customers to improve their designs, increase profitability, and advance their industries. Our in-depth application knowledge lets us collaborate with customers and provide personalized technical support through a wide network of experienced Lee Sales Engineers ready to address any challenge. EXPLORE LEE PRODUCTS IN SPACE.
