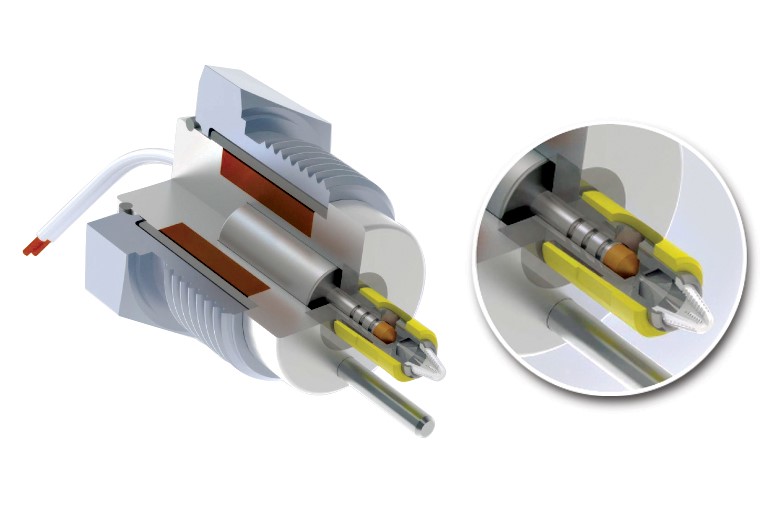

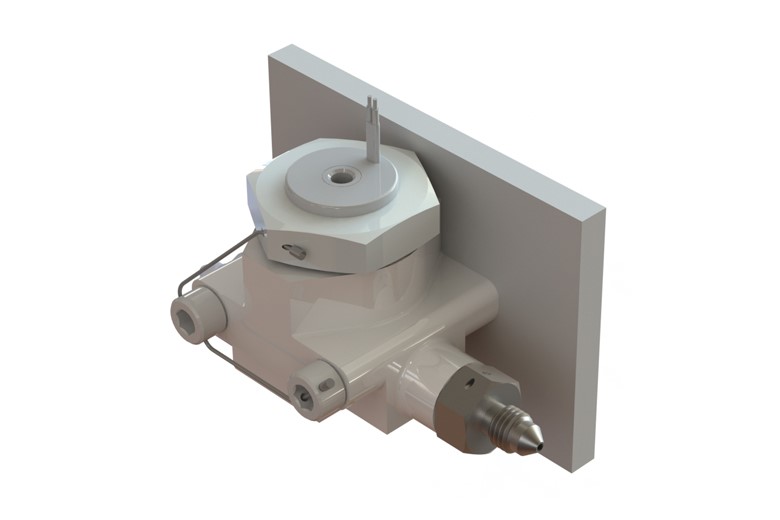

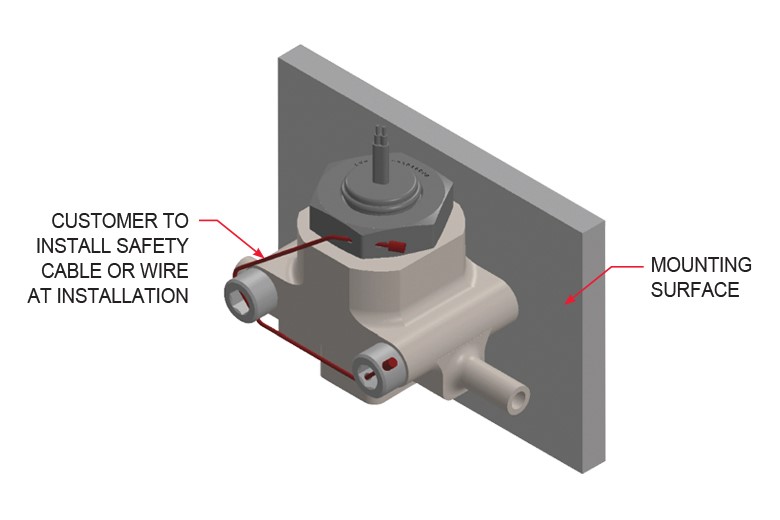

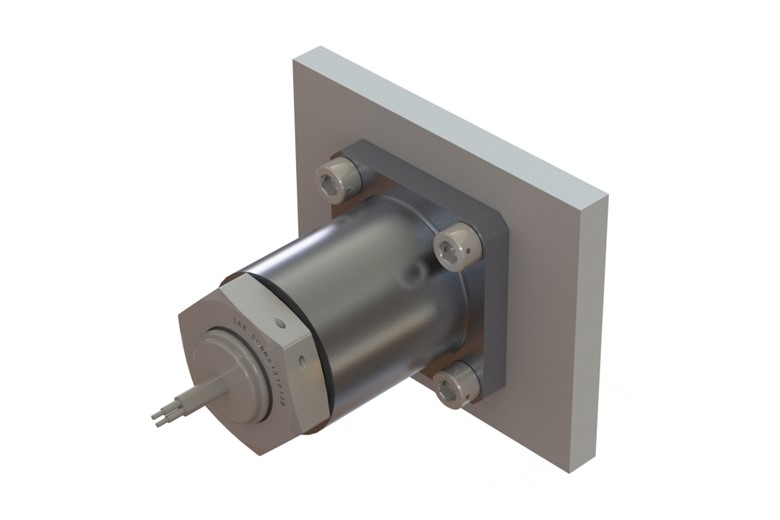

The Solenoid Operated Pneumatic Isolation Valve is the optimal solution when a tight seal is needed over a wide range of pressures. Its robust design has been tested using proven methods, including endurance testing up to 100,000 cycles, temperature shock, thermal cycling, and more. With a weight as low as 0.14 of a pound, this valve delivers reliable performance in the smallest package size. The design draws upon on MultiSeal® technology to radically simplify port layout and provide significant space and weight savings.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Operating Ambient Temperature | -65°F to 200°F |
| Operating Fluid Temperature | -65°F to 200°F |
| Internal Leakage | 0 Bubbles / Minute on Nitrogen (0 - Rated Pressure) |
| External Leakage | 0 cc |
| Max Operating Voltage | 32 VDC |
| Pull-In Voltage | 18 VDC Max at 200°F and 0 psid |
| Dropout Voltage | 1 VDC Min at 70°F and Rated Pressure |
| WETTED PARTS | |||
| Part | Material | Specification | Finish |
| Body, Shaft Guide and Filter Screen | 15-5 PH CRES | AMS 5659 | Passivated |
| MultiSeal | Polyamide-Imide | AMS 3670 | – |
| Pin | MP35N | AMS 5844 (Chem Only) | – |
| Shaft Tip | Polyimide | AMS 3644 | – |
| Shaft (Option 1) | 440C CRES | AMS-QQ-S-763 | Passivated |
| Shaft (Option 2) | MP35N | AMS 5844 (Chem Only) | – |
| Spring (Option 1) | 302 CRES | AMS 5688 | Passivated |
| Spring (Option 2) | 17-7 PH CRES | AMS 5678 | Passivated |
| Spring Guide | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Pushrod | 300 Sereies CRES | AMS-QQ-S-763 | Passivated |
| Flanges, Plunger, and Cover | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Shunt (Option 1) | 304L CRES | AMS-QQ-S-763 | Nickel Plate / AMS 2404 |
| Shunt (Option 2) | 22-13-5 CRES | AMS 5754 | Nickel Plate / AMS 2404 |
| Shims and Spacers | 300 Sereis CRES | ASTM A666 | Passivated |
| Braze | Silver Alloy | AMS 4774 | Nickel Plate / AMS 2404 |
| NON-WETTED PARTS | |||
| Part | Material | Specification | Finish |
| Retainer | 2024 T-351 AL | AMS-QQ-A-225 / 6 | Anodize / MIL-PRF-8625 Type II |
| Retaining Ring | 302 CRES | ASTM A313 / A313M | Passivated |
| Coil | Copper Magnet Wire | NEMA MW1000 / MW16 | – |
| Shrink Tube | PVDF and PTFE | AMS-DTL-23053 / 8 & / 12 | – |
| Insulation Tape | Polyimide | ASTM D5213 | – |
| Solder | Sb05A | J-STD-006 | – |
| Potting Compound | Stycast 2762FT, Catalyst 17 | – | – |
| Lead Wire | 22 AWG | SAE AS22759 / 11 | – |

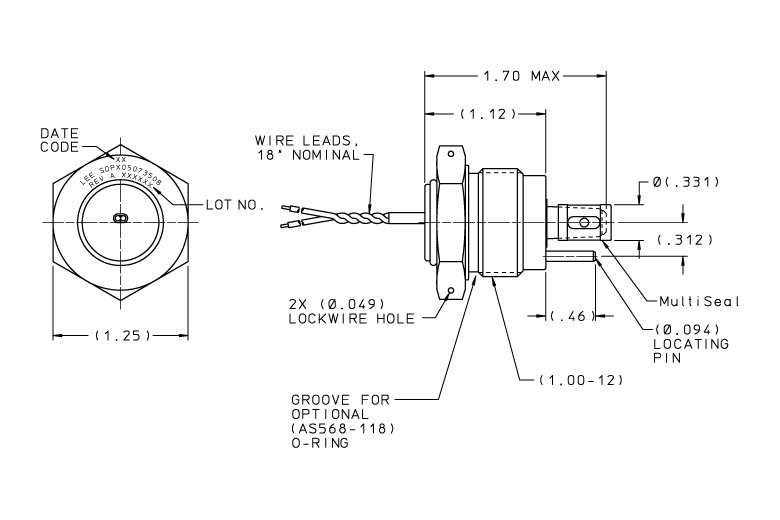

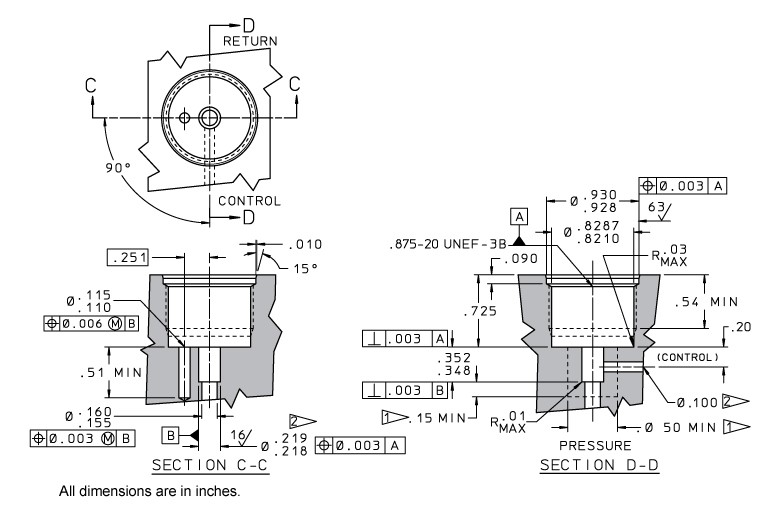

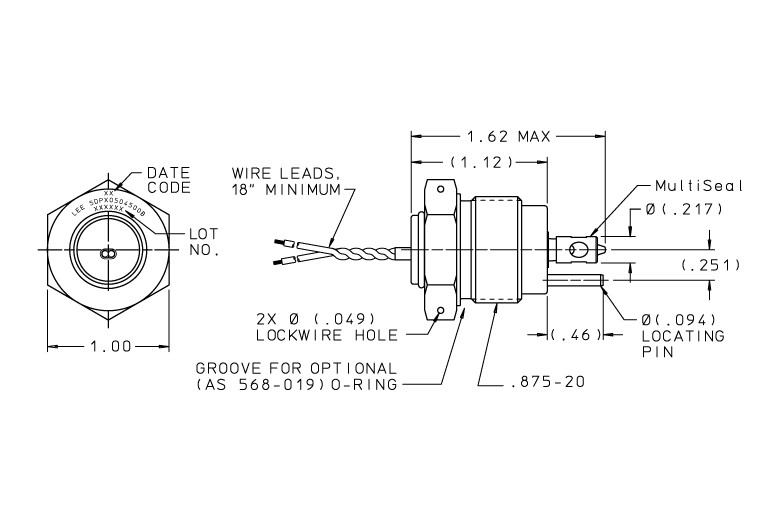

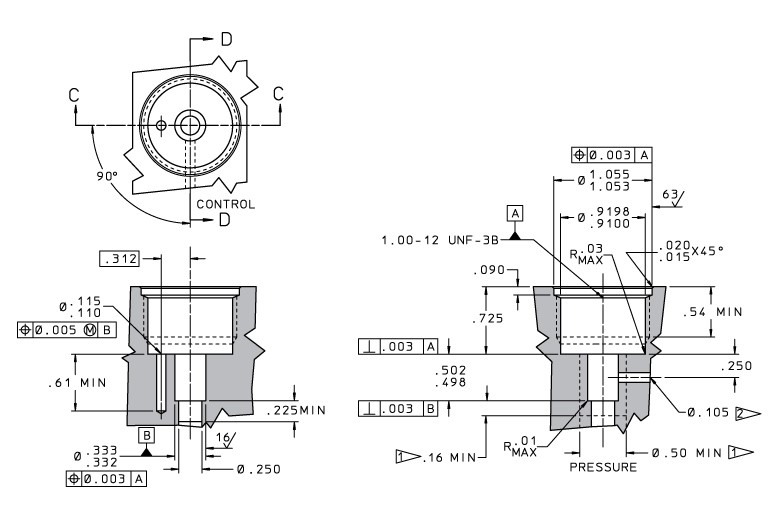

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| SDBB2130208A | Replacement MultiSeal for SDPX0504500B |
| SDBB2130108A | Replacement MultiSeal for SDPX0507400B |
| SDBB3320108A | Replacement MultiSeal for SDPX0507350B |
| CUTA2180021A | Test Fixture for SDPX0504500B and SDPX0507400B |
| CUTA3320121A | Test Fixture for SDPX0507350B |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

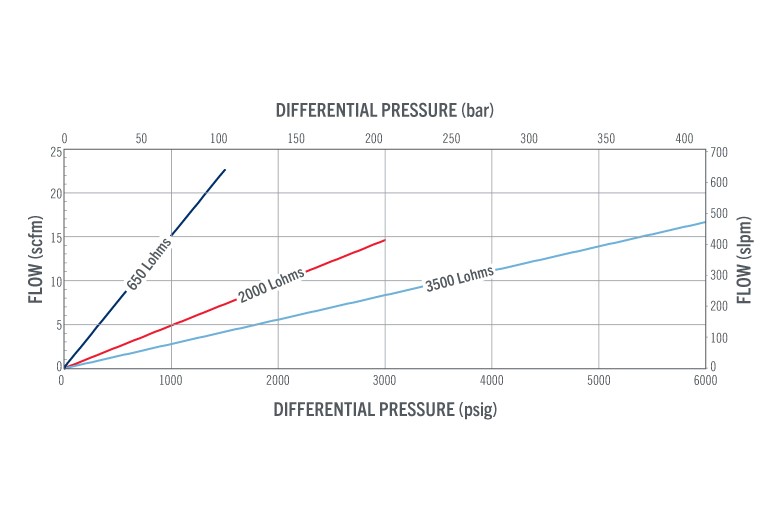

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
