156 Lee Jet® Single-Orifice Restrictor

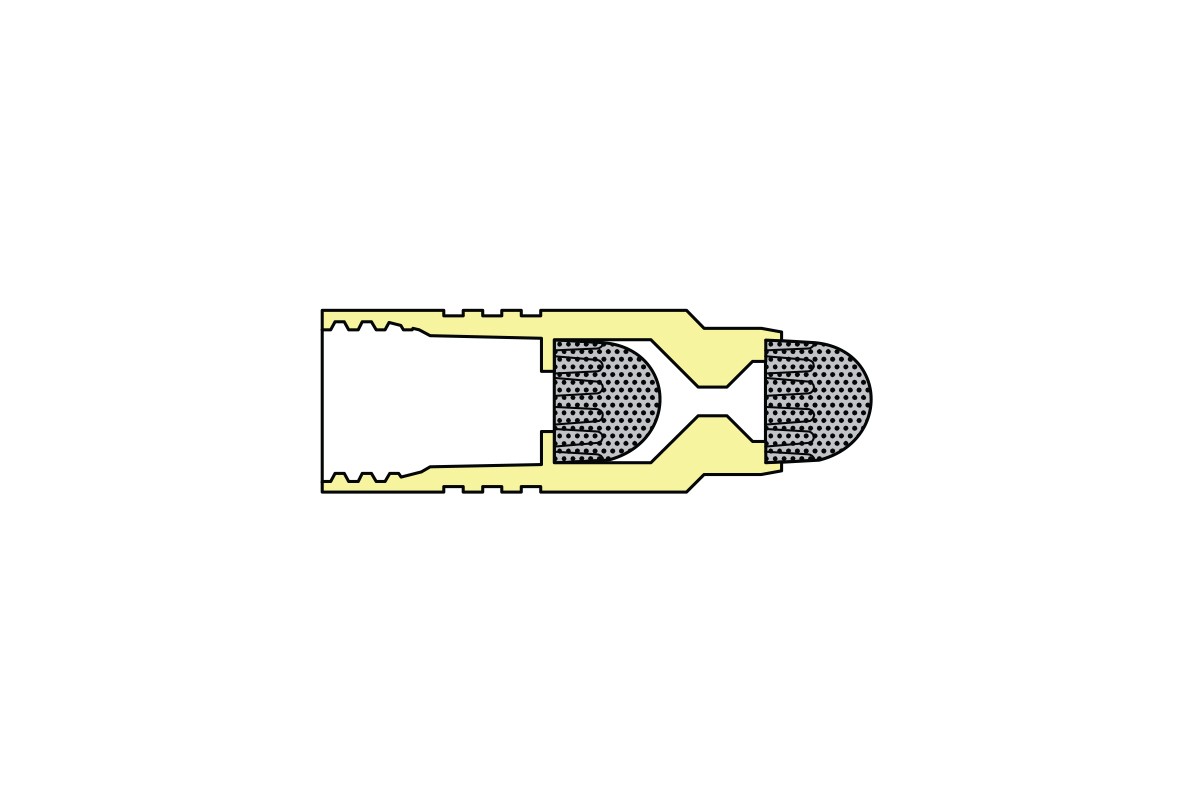

This small, economical, and accurate single-orifice flow restrictor contains a calibrated orifice, and two matched safety screens, allowing flow in both directions. This restrictor also features a reliable locking and sealing device. Adapted from Lee Plugs, this locking end design has been accepted for years as the best way to seal drilled holes. Quick and easy to install, this restrictor eliminates the need for costly assemblies, seals, threads, flow testing, and filter design. The Lee Company 100% flow tests all Lee Jet flow restrictors to two standard tolerances, +/- 2% and +/- 5%.

Key Product Facts
  • Type:Single-Orifice
  • Diameter:0.156 inches
  • Metered Flow Range:3000 to 30,000 Lohms
  • Test Fluid:Water
  • Operating Pressures:Up to 3000 psi

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 2% or ± 5%
Maximum Working Pressure 3000 psid
Nominal Weight 0.7 grams
Materials
PART MATERIAL SPECIFICATION
Body 304 CRES AMS 5639
Pin 15-5PH CRES AMS 5659
Screens 304L CRES ASTM A 666
Braze AMS 4774
Finish: All CRES Parts Passivated
Pins are prewaxed. Do not degrease. Do not lubricate.

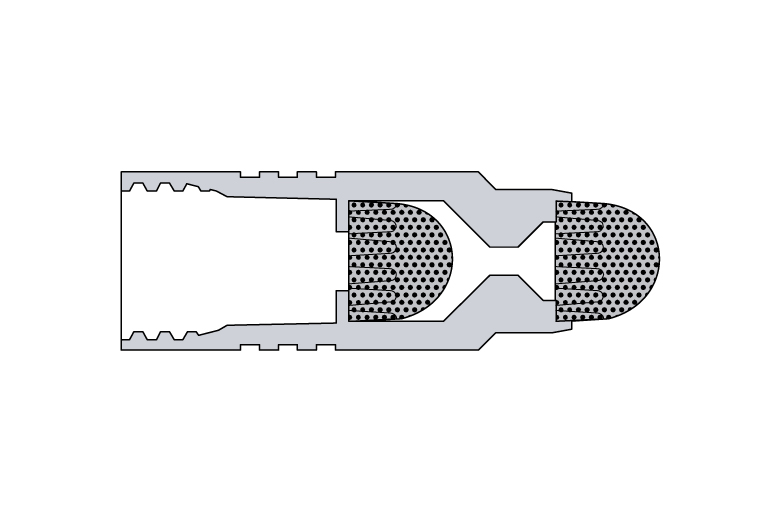

Cross Section View
Dimensional View
Installation Hole Details

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
Tolerance
PART NUMBER
Tolerance
LOHM RATE NOMINAL SCREEN HOLE SIZE (in) Request Information
JETA1562300D ± 2% 3000 Lohms 0.008 Request
JETA1562320D ± 2% 3200 Lohms 0.008 Request
JETA1562340D ± 2% 3400 Lohms 0.008 Request
JETA1562360D ± 2% 3600 Lohms 0.008 Request
JETA1562380D ± 2% 3800 Lohms 0.008 Request
JETA1562400D ± 2% 4000 Lohms 0.008 Request
JETA1562430D ± 2% 4300 Lohms 0.008 Request
JETA1562460D ± 2% 4600 Lohms 0.008 Request
JETA1562500D ± 2% 5000 Lohms 0.006 Request
JETA1562550D ± 2% 5500 Lohms 0.006 Request
JETA1562600D ± 2% 6000 Lohms 0.006 Request
JETA1562650D ± 2% 6500 Lohms 0.006 Request
JETA1562700D ± 2% 7000 Lohms 0.006 Request
JETA1562750D ± 2% 7500 Lohms 0.006 Request
JETA1562800D ± 2% 8000 Lohms 0.006 Request
JETA1562850D ± 2% 8500 Lohms 0.006 Request
JETA1562900D ± 2% 9000 Lohms 0.006 Request
JETA1562950D ± 2% 9500 Lohms 0.006 Request
JETA1562100H ± 2% 10000 Lohms 0.006 Request
JETA1562110H ± 2% 11000 Lohms 0.004 Request
JETA1562120H ± 2% 12000 Lohms 0.004 Request
JETA1562130H ± 2% 13000 Lohms 0.004 Request
JETA1562140H ± 2% 14000 Lohms 0.004 Request
JETA1562150H ± 2% 15000 Lohms 0.004 Request
JETA1562160H ± 2% 16000 Lohms 0.004 Request
JETA1562170H ± 2% 17000 Lohms 0.004 Request
JETA1562180H ± 2% 18000 Lohms 0.004 Request
JETA1562190H ± 2% 19000 Lohms 0.004 Request
JETA1562200H ± 2% 20000 Lohms 0.004 Request
JETA1562220H ± 2% 22000 Lohms 0.004 Request
JETA1562240H ± 2% 24000 Lohms 0.004 Request
JETA1562260H ± 2% 26000 Lohms 0.004 Request
JETA1562280H ± 2% 28000 Lohms 0.004 Request
JETA1562300H ± 2% 30000 Lohms 0.004 Request
JETA1565300D ± 5% 3000 Lohms 0.008 Request
JETA1565320D ± 5% 3200 Lohms 0.008 Request
JETA1565340D ± 5% 3400 Lohms 0.008 Request
JETA1565360D ± 5% 3600 Lohms 0.008 Request
JETA1565380D ± 5% 3800 Lohms 0.008 Request
JETA1565400D ± 5% 4000 Lohms 0.008 Request
JETA1565430D ± 5% 4300 Lohms 0.008 Request
JETA1565460D ± 5% 4600 Lohms 0.008 Request
JETA1565500D ± 5% 5000 Lohms 0.006 Request
JETA1565550D ± 5% 5500 Lohms 0.006 Request
JETA1565600D ± 5% 6000 Lohms 0.006 Request
JETA1565650D ± 5% 6500 Lohms 0.006 Request
JETA1565700D ± 5% 7000 Lohms 0.006 Request
JETA1565750D ± 5% 7500 Lohms 0.006 Request
JETA1565800D ± 5% 8000 Lohms 0.006 Request
JETA1565850D ± 5% 8500 Lohms 0.006 Request
JETA1565900D ± 5% 9000 Lohms 0.006 Request
JETA1565950D ± 5% 9500 Lohms 0.006 Request
JETA1565100H ± 5% 10000 Lohms 0.006 Request
JETA1565110H ± 5% 11000 Lohms 0.004 Request
JETA1565120H ± 5% 12000 Lohms 0.004 Request
JETA1565130H ± 5% 13000 Lohms 0.004 Request
JETA1565140H ± 5% 14000 Lohms 0.004 Request
JETA1565150H ± 5% 15000 Lohms 0.004 Request
JETA1565160H ± 5% 16000 Lohms 0.004 Request
JETA1565170H ± 5% 17000 Lohms 0.004 Request
JETA1565180H ± 5% 18000 Lohms 0.004 Request
JETA1565190H ± 5% 19000 Lohms 0.004 Request
JETA1565200H ± 5% 20000 Lohms 0.004 Request
JETA1565220H ± 5% 22000 Lohms 0.004 Request
JETA1565240H ± 5% 24000 Lohms 0.004 Request
JETA1565260H ± 5% 26000 Lohms 0.004 Request
JETA1565280H ± 5% 28000 Lohms 0.004 Request
JETA1565300H ± 5% 30000 Lohms 0.004 Request
Clear Filters

Installation & Accessories

Replacement Parts & Accessories
Part Number Description
CUTA1560104C Installation / Extraction Tool Set
JETA1560003B Replacement Pin
