Flow Restrictors

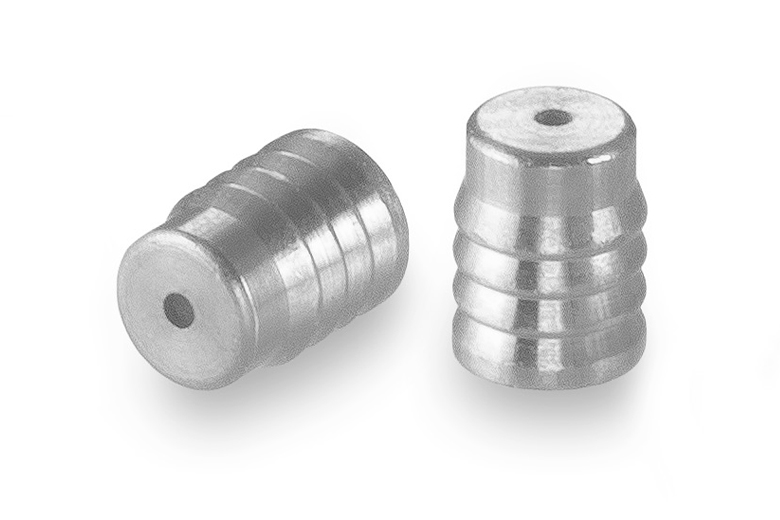

2.5 mm 303 Stainless Steel Press-In Single-Orifice Restrictor for Liquids

This threadless, reliable, and highly accurate flow restrictor is specifically designed for installation into plastic housings and fittings. Its unique press-in design provides easy installation that ensures retention and prevents any bypass leakage. The orifice is constructed of 303 stainless steel, providing compatibility with a wide range of gases. It is flow tested on distilled water with a nominal flow tolerance of ± 5%. Tighter tolerances are available as custom configurations. To increase accuracy, the orifice is tested in the direction of use.

Contact a Lee Sales Engineer Go to Product Finder
Key Product Facts
  • Mounting Configuration:Press-In - Into Plastic
  • Diameter:2.54 mm
  • Metered Flow Range:500 - 45,000 Lohms
  • Test Fluid:Distilled Water
  • Maximum Working Pressure:Dependent on Housing Material
For More Information

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5%
Test Fluid Distilled Water
Maximum Working Pressure Dependent on Housing Material, Configuration, and Operating Conditions
Designed for Installation Into Plastics, Such as Polypropylene, Nylon, Acetal, Polyethylene, and PEEK
Materials
COMPONENT MATERIAL
Body 303 Stainless Steel

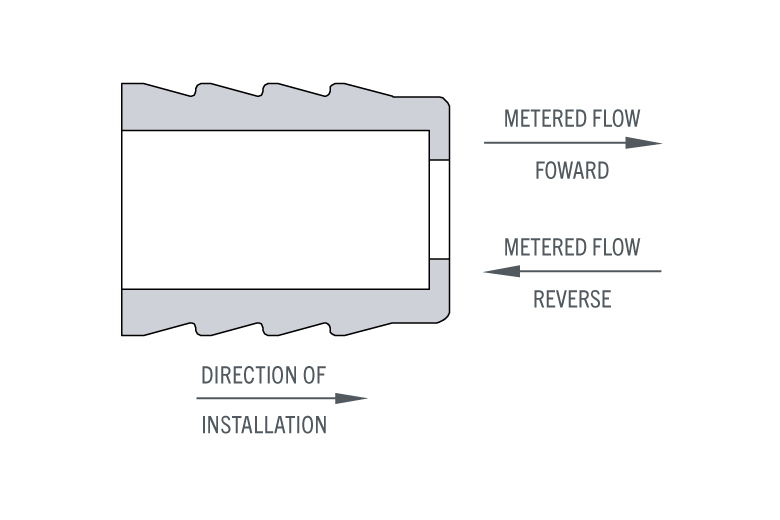

Cross Section View

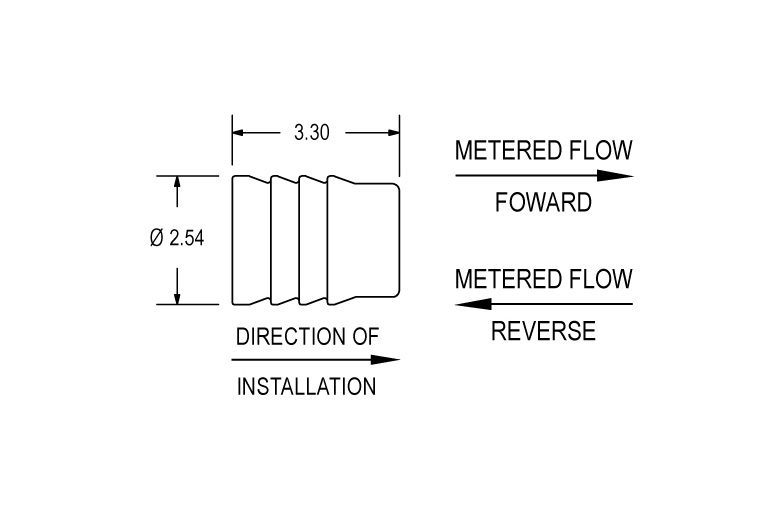

Dimensional View
This image is for reference only. All dimensions are in millimeters.
Installation Hole Details
Installation Hole Drawing Number: 1INST005724S
This image is for reference only. All dimensions are in millimeters.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER FLOW DIRECTION LOHM RATE APPROXIMATE WEIGHT (g) INSTALLATION HOLE DRAWING NUMBER Request Information
RPLF2551005S Forward 500 Lohms 0.07 1INST005724S Request
RPLF2551006S Forward 600 Lohms 0.07 1INST005724S Request
RPLF2551008S Forward 800 Lohms 0.07 1INST005724S Request
RPLF2551010S Forward 1000 Lohms 0.07 1INST005724S Request
RPLF2551012S Forward 1200 Lohms 0.07 1INST005724S Request
RPLF2551015S Forward 1500 Lohms 0.07 1INST005724S Request
RPLF2551020S Forward 2000 Lohms 0.07 1INST005724S Request
RPLF2551025S Forward 2500 Lohms 0.07 1INST005724S Request
RPLF2551030S Forward 3000 Lohms 0.07 1INST005724S Request
RPLF2551040S Forward 4000 Lohms 0.07 1INST005724S Request
RPLF2551050S Forward 5000 Lohms 0.07 1INST005724S Request
RPLF2551060S Forward 6000 Lohms 0.07 1INST005724S Request
RPLF2551080S Forward 8000 Lohms 0.07 1INST005724S Request
RPLF2551100S Forward 10,000 Lohms 0.07 1INST005724S Request
RPLF2551120S Forward 12,000 Lohms 0.07 1INST005724S Request
RPLF2551150S Forward 15,000 Lohms 0.07 1INST005724S Request
RPLF2551200S Forward 20,000 Lohms 0.07 1INST005724S Request
RPLF2551250S Forward 25,000 Lohms 0.07 1INST005724S Request
RPLF2551300S Forward 30,000 Lohms 0.07 1INST005724S Request
RPLF2551400S Forward 40,000 Lohms 0.07 1INST005724S Request
RPLF2551450S Forward 45,000 Lohms 0.07 1INST005724S Request
RPLR2551005S Reverse 500 Lohms 0.07 1INST005724S Request
RPLR2551006S Reverse 600 Lohms 0.07 1INST005724S Request
RPLR2551008S Reverse 800 Lohms 0.07 1INST005724S Request
RPLR2551010S Reverse 1000 Lohms 0.07 1INST005724S Request
RPLR2551012S Reverse 1200 Lohms 0.07 1INST005724S Request
RPLR2551015S Reverse 1500 Lohms 0.07 1INST005724S Request
RPLR2551020S Reverse 2000 Lohms 0.07 1INST005724S Request
RPLR2551025S Reverse 2500 Lohms 0.07 1INST005724S Request
RPLR2551030S Reverse 3000 Lohms 0.07 1INST005724S Request
RPLR2551040S Reverse 4000 Lohms 0.07 1INST005724S Request
RPLR2551050S Reverse 5000 Lohms 0.07 1INST005724S Request
RPLR2551060S Reverse 6000 Lohms 0.07 1INST005724S Request
RPLR2551080S Reverse 8000 Lohms 0.07 1INST005724S Request
RPLR2551100S Reverse 10,000 Lohms 0.07 1INST005724S Request
RPLR2551120S Reverse 12,000 Lohms 0.07 1INST005724S Request
RPLR2551150S Reverse 15,000 Lohms 0.07 1INST005724S Request
RPLR2551200S Reverse 20,000 Lohms 0.07 1INST005724S Request
RPLR2551250S Reverse 25,000 Lohms 0.07 1INST005724S Request
RPLR2551300S Reverse 30,000 Lohms 0.07 1INST005724S Request
RPLR2551400S Reverse 40,000 Lohms 0.07 1INST005724S Request
RPLR2551450S Reverse 45,000 Lohms 0.07 1INST005724S Request
For a companion 2.5 mm safety screen filter, click here.

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0029354S 2.5 mm Restrictor Installation Tool

CAD Envelopes

Resources

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.

Please provide your information to access the content.

Thank You.

Your download has started.

Request Information for Part #

We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.

Thank you for your inquiry.

We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.

Lohms for Liquids Lohms for Gases
