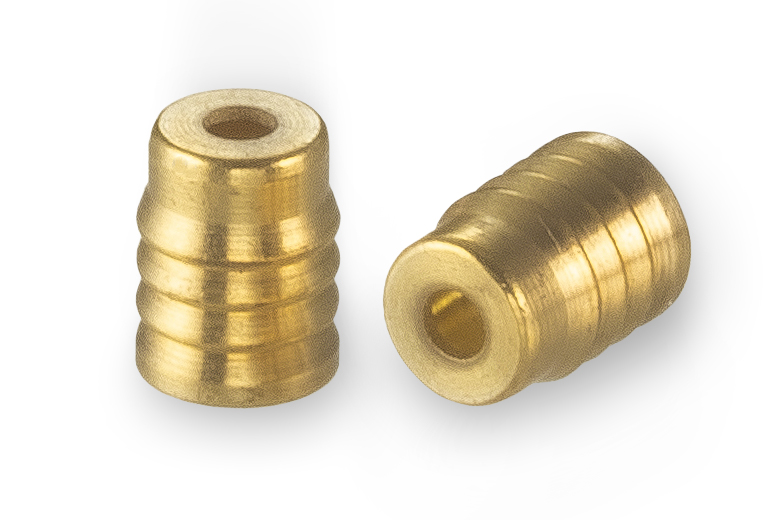

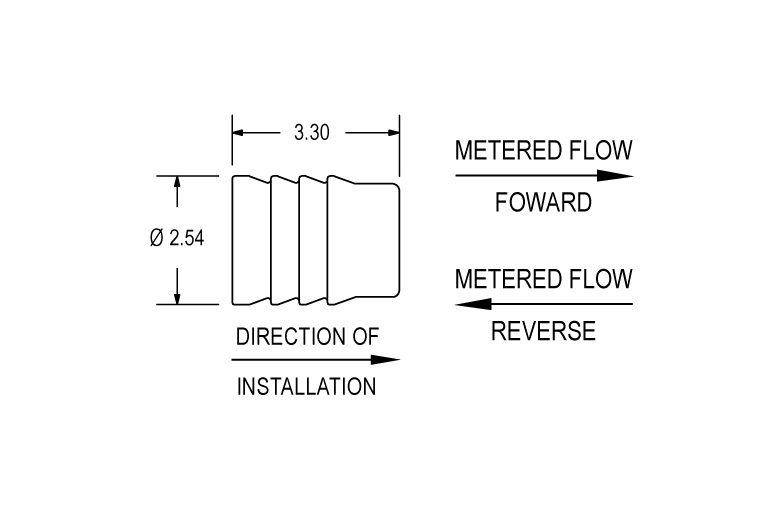

This threadless, reliable, and highly accurate flow restrictor is specifically designed for installation into plastic housings and fittings. Its unique press-in design provides easy installation that ensures retention and prevents any bypass leakage. The orifice is constructed of brass, providing compatibility with a wide range of gases. It is flow tested on nitrogen with a nominal flow tolerance of ± 5%. Tighter tolerances are available as custom configurations. To increase accuracy, orifices are tested in the direction of use.
| Characteristic | Specification |
|---|---|
| Lohm Rate Tolerance | ± 5% |
| Test Fluid | Clean and Dry Nitrogen |
| Maximum Working Pressure | Dependent on Housing Material, Configuration, and Operating Conditions |
| Designed for Installation Into | Plastics, Such as Polypropylene, Nylon, Acetal, Polyethylene, and PEEK |
| COMPONENT | MATERIAL |
|---|---|
| Body | Brass C36000 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
