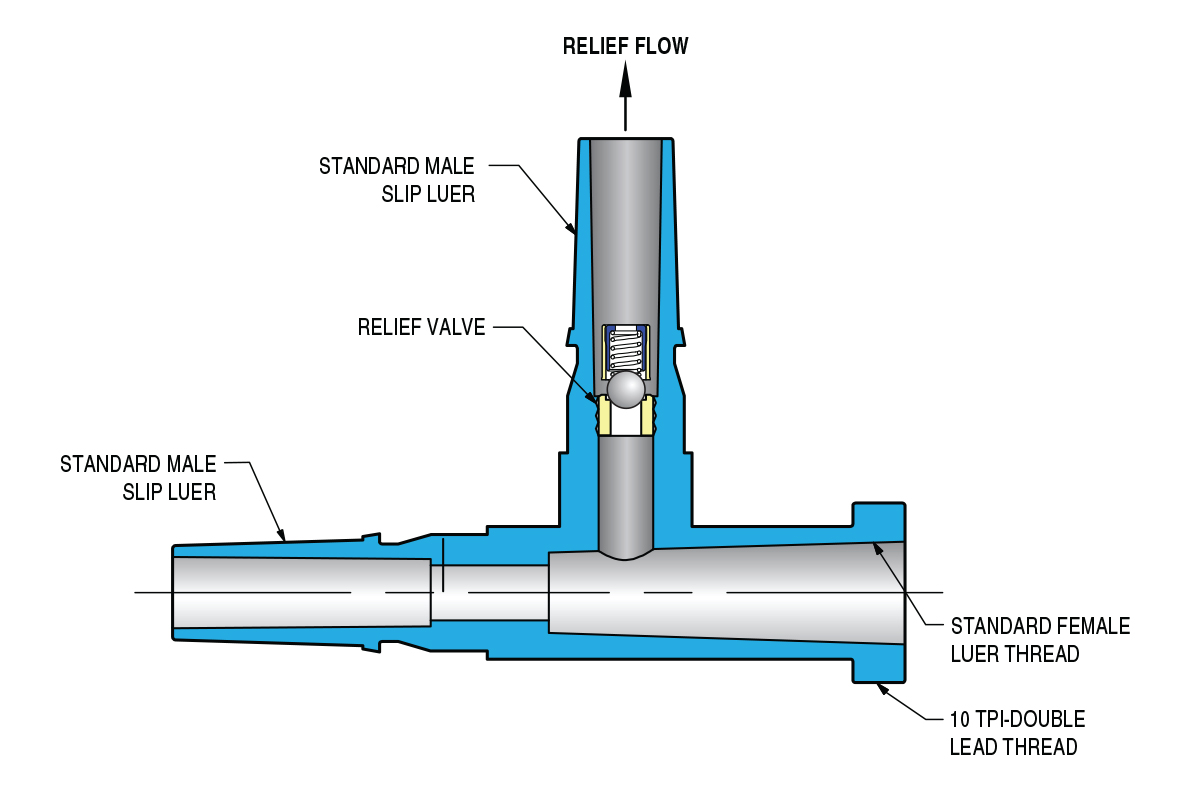

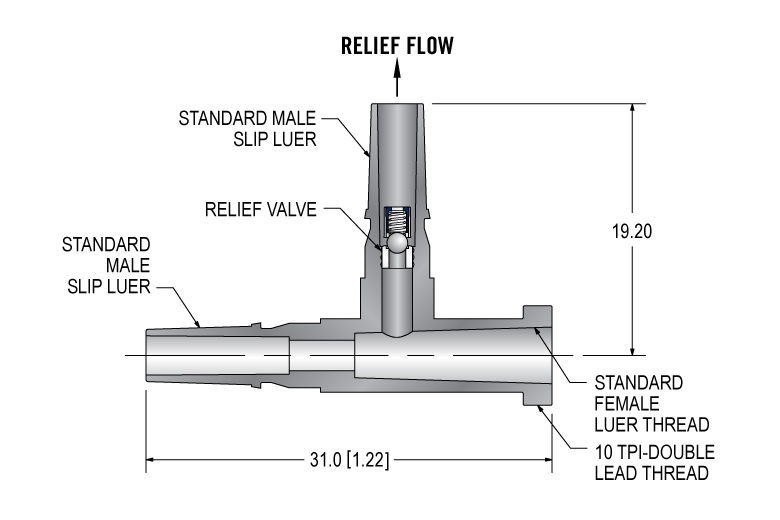

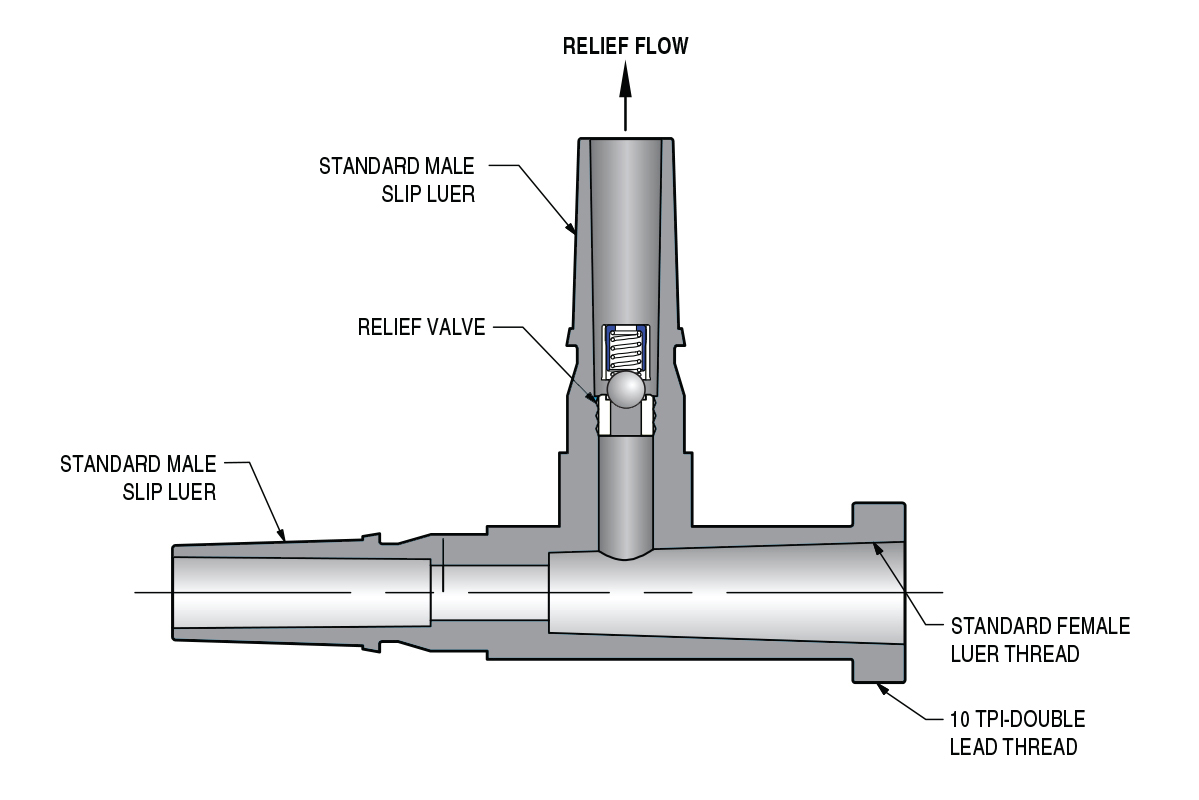

Lee offers a Luer Tee fitting with a 2.5mm pressure relief valve in the branch of the Tee. These are particularly useful for a syringe driven system where a maximum force is required. The fitting assemblies come in a variety of relief pressures up to 300 kPa (43.5 psid). The pressure relief valve is all stainless steel for compatability with a wide range of fluids and the Luer Tee is made from medical grade polypropylene. The pressure relief valve offers very low leakage and highly repeatable cracking pressure.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
