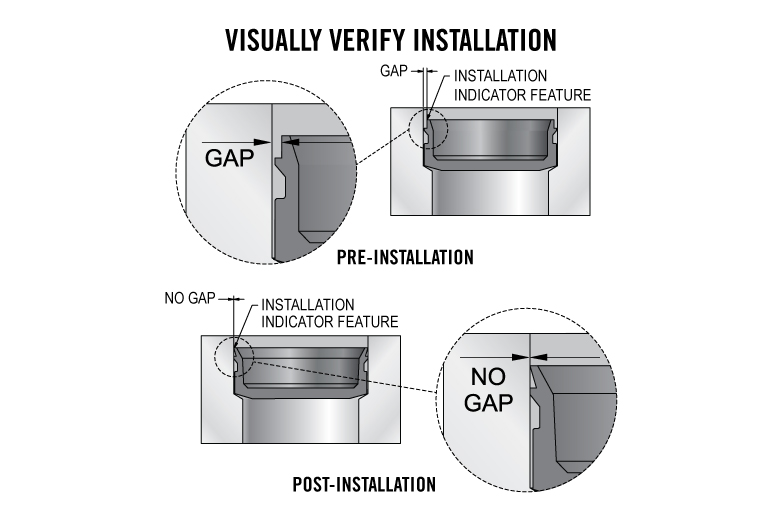

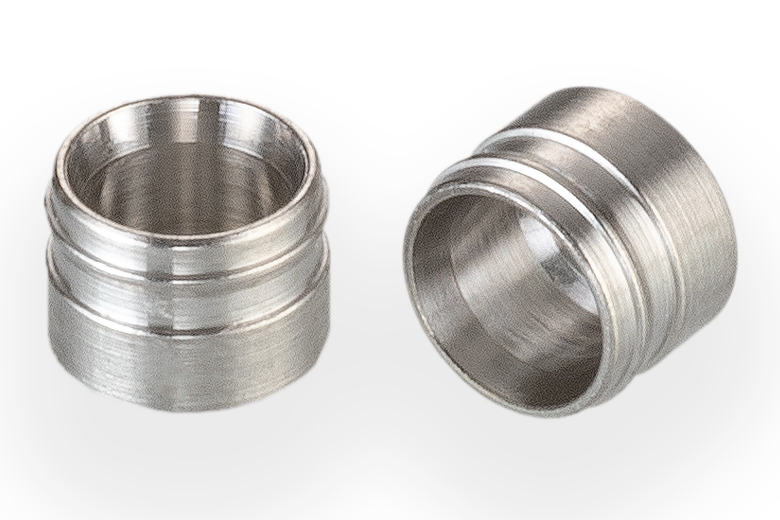

This single-piece stainless steel expansion plug uses our Drive Locking® technology to create a leak-tight seal in aluminum housings without the use of threads, sealants, or O-rings. The DL Series Plug* includes an Installation Indicator feature that allows customers to visually verify that the plug was properly installed. With this feature, manufacturers can easily automate both the installation and verification processes, helping to reduce costs and improve reliability.
*Patent Pending
| Characteristic | Specification |
|---|---|
| Rated Pressure* | 69 bar |
| Maximum Sealable Passageway Diameter | 3.30 mm |
| Typical Installation Force in Aluminun | 5 - 6 kN |
| Acceptable Housing Material | Aluminum |
| COMPONENT | MATERIAL |
|---|---|
| Plug | 303 Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0400360S | 4 mm DL Series Plug Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
